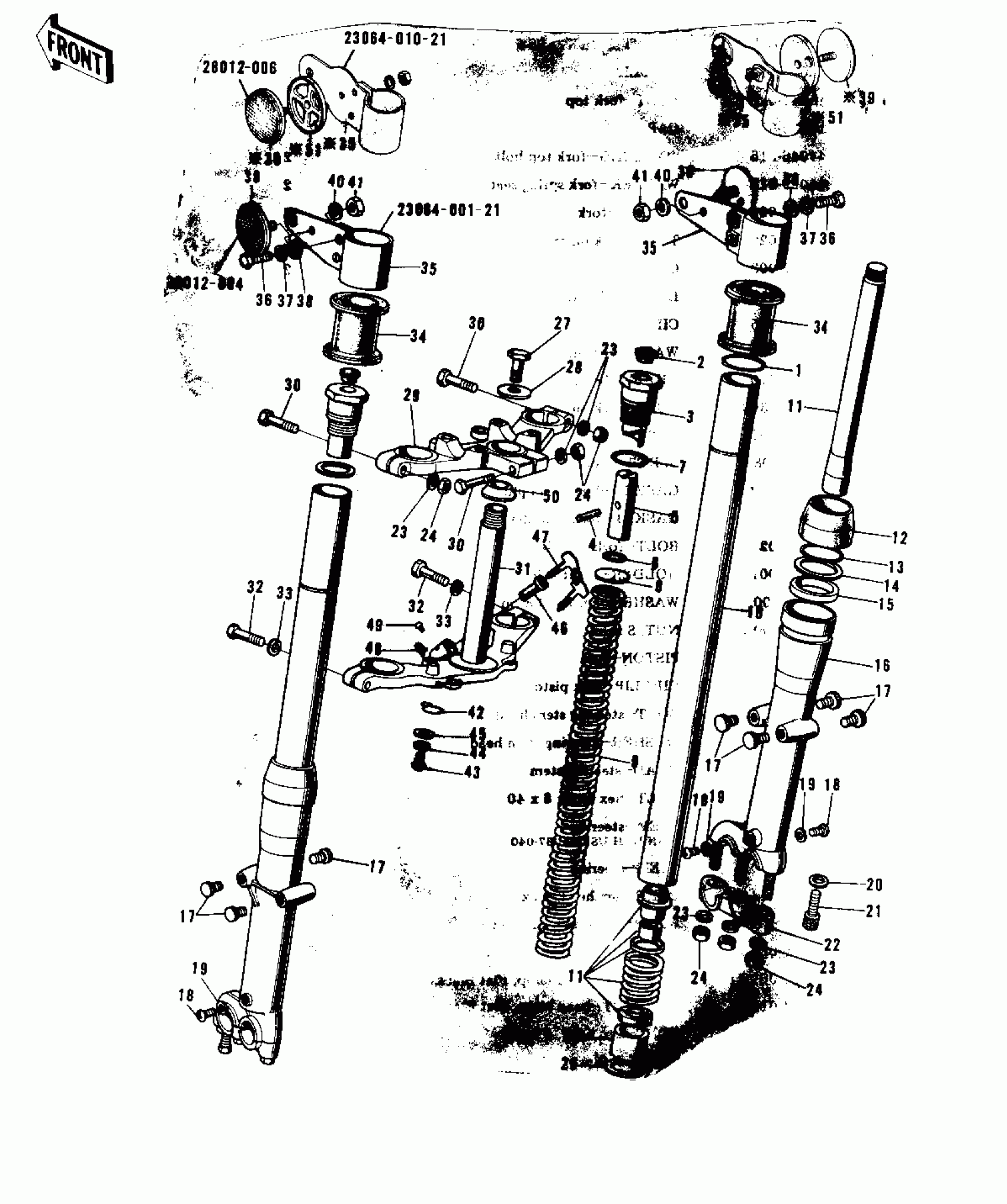

Kawasaki F9-C FRONT FORK ('72-'73 F9/F9-A 350) Diagram

#

Description
Price

1~33

FORK-FRONT,BUFF

44001-085-80

$856.64

1~33

FORK-FRONT

44001-103

$837.50

1

CIRCLIP

44044-009

Unavailable

2~6

BOLT-FORK TOP

44041-030

$58.86

2~6

BOLT,FORK TOP

44041-047

$36.07

2

CAP,RUBBER

14039-001

$3.42

2

CAP-FORK TOP BOLT

44062-004

Unavailable

7

'O' RING FORK TOP

44046-015

Unavailable

8

WASHER-FORK SPRG SEA

44029-015

$0.73

9

SPRING-FORK

44026-028

$28.59

10

TUBE-FORK INNER

44013-022

Unavailable

11

CYLINDER-FORK

44022-003

Unavailable

12

DUST SHIELD

44010-017

$19.27

13

CIRCLIP OIL SEAL FIT

44044-005

Unavailable

14

WASHER OIL SEAL FIT

44043-023

Unavailable

15

OIL SEAL,FORK

44009-020

$61.69

17

CAP

44062-002

Unavailable

18

SCREW PAN HEAD 4X8

220B0408

Unavailable

19

GASKET,FORK DRAIN PLUG

44045-002

$4.12

20

GASKET FORK CYL BOLT

44045-030

Unavailable

21

BOLT FORK CYLINDER

44041-027

$4.83

22

HOLDER-FRONT AXLE

44063-001

$21.54

22

HOLDER,FRNT AXLE,BUF

44063-001-80

$20.56

23

WASHER SPRING 8MM

461F0800

Unavailable

24

NUT,8MM

311B0800

Unavailable

25

PISTON FORK

44018-003

$13.81

26

CIRCLIP FORK PISTON

44044-008

$9.36

27

BOLT STRNG STEM HEAD

44041-007

Unavailable

28

WASHER STRNG STEM HD

44043-016

$10.56

29

HEAD-STEERING STEM

44039-032

Unavailable

30

BOLT

92001-1578

$6.81

31

STEM-STEERING

44037-032

$152.66

31

STEM-STEERING

44037-040

$152.66

31

STEM,STEERING

44037-055

$134.82

32

BOLT-HEX HEAD,12X36

92003-064

$24.03

33

WASHER-SPRING,12MM

461F1200

Unavailable

34

DAMPER RUBBER

92075-059

Unavailable

35

BRACKET-HEAD LAMP

23064-001

Unavailable

35

BRACKET-HEAD LAMP,BL

23064-010-21

$9.80

36

BOLT-HEX HEAD,6X18

92007-027

Unavailable

37

WASHER SPRING 6MM

461F0600

Unavailable

38

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

39

REFLECTOR-REFLEX

28012-004

Unavailable

39

REFLECTOR REFLEX

28001-004

$6.59

39

REFLECTOR-REFLEX,FRNT

28012-006

Unavailable

40

WASHER SPRING 5MM

461F0500

Unavailable

41

NUT-HEX

311B0500

$0.51

42

CLAMP,CABLE

92037-046

$4.41

43

BOLT-UPSET 6X14

112B0614

Unavailable

43

BOLT-UPSET 6X14

112B0614

Unavailable

44

WASHER SPRING 6MM

461F0600

Unavailable

45

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

46,47

LOCK ASSY-STEERING

27016-025

$14.03

47

KEY SET,#155

27008-042-55

$9.19

47

KEY SET,#156

27008-042-56

$9.14

47

KEY SET,#157

27008-042-57

$9.19

47

KEY SET,#158

27008-042-58

$9.49

47

KEY SET,#159

27008-042-59

$8.36

47

KEY SET,#160

27008-042-60

$8.03

47

KEY SET,#161

27008-042-61

$8.03

47

KEY SET,#162

27008-042-62

$8.54

47

KEY SET,#163

27008-042-63

$7.05

47

KEY SET,#164

27008-042-64

$8.54

48

CIRCLIP-STEERING LOCK

92033-024

Unavailable

49

RIVET

92099-001

$3.51

50

RACE,STEERING STEM BEARING

92047-010

Unavailable

51

DAMPER RUBBER

92075-137

Unavailable
