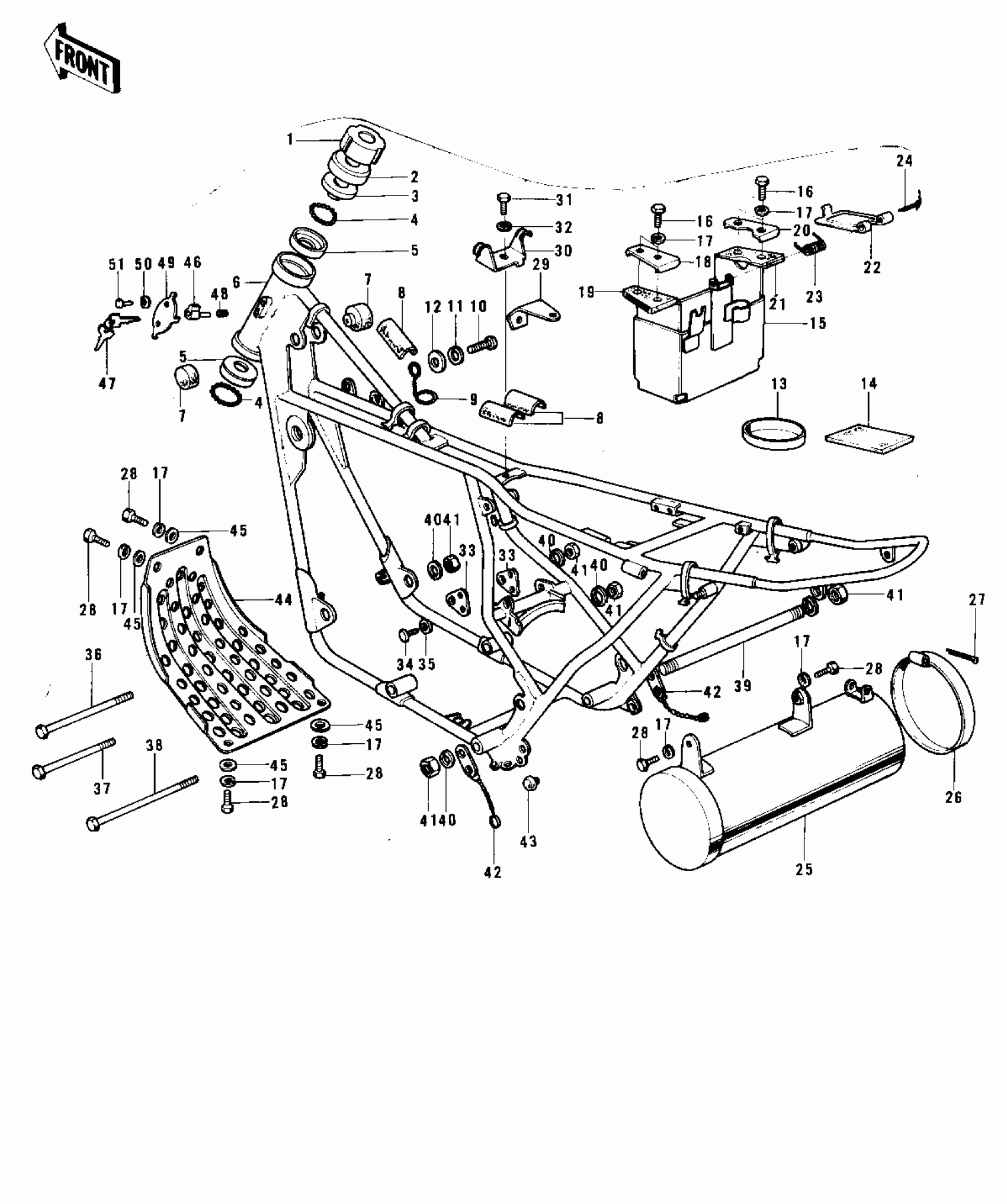

Kawasaki F9-C FRAME/FRAME FITTINGS (F9-A) Diagram

#

Description
Price

1

NUT STEERING STEM LCK

92090-006

$14.24

2

CAP STEERING STEM

46098-005

Unavailable

3

CONE STERNG BERG UPP

92047-003

Unavailable

4

BALL-STEEL,1/4

600A0800

$0.67

5

RACE,STEERING STEM BEARING,LWR

92048-005

$11.83

6

FRAME

32002-059

$675.52

7

DAMPER RUBB FUEL TANK

92075-050

Unavailable

8

MAT FUEL TANK

51067-002

Unavailable

9

CLAMP

92037-053

Unavailable

10

BOLT,6X10

112G0610

Unavailable

10

BOLT,6X10

112G0610

Unavailable

11

WASHER SPRING 6MM

461F0600

Unavailable

12

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

13

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

14

MAT-BATTERY

32103-022

Unavailable

15

CASE,BATTERY

32097-025

$24.12

16

BOLT-UPSET

112G0618

Unavailable

16

BOLT-UPSET

112G0618

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

PLATE,L.H BATERY CAS

32101-006

Unavailable

19

DAMPER RUBBER-BATTER

92075-152

Unavailable

20

PLATE,R.H BATERY CAS

32101-007

Unavailable

21

DAMPER RUBBER,BATTER

92075-153

Unavailable

22

BAND,BATTERY

92072-048

Unavailable

23

SPRING-RETURN

92083-017

Unavailable

24

PIN-COTTER,2.5X35

550D2535

Unavailable

25

BOX-TOOL,BLACK

32098-014-21

$33.27

26

CAP-TOOL CASE

32099-005

Unavailable

27

PIN COTTER 2.0X30

550D2030

$1.32

28

BOLT-UPSET,6X12

112G0612

Unavailable

28

BOLT-UPSET,6X12

112G0612

Unavailable

29

BRACKET-TRN.SGNL.RLY

27023-001

Unavailable

30

BRACKET,FUEL TANK

32052-046

Unavailable

31

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

32

WASHER SPRING 8MM

461F0800

Unavailable

33

PLATE-ENGINE MOUNT

32030-020

$4.76

34

BOLT,8X20

115G0820

Unavailable

34

BOLT,8X20

115G0820

Unavailable

35

WASHER SPRING 8MM

461F0800

Unavailable

36

BOLT-HEX HEAD,12X163

113B12163A

Unavailable

37

BOLT, HEX HEAD,12X151

113B12151A

Unavailable

38

BOLT-HEX HEAD,12X260

113B12260A

Unavailable

39

STUD

92006-002

Unavailable

40

WASHER-SPRING,12MM

461F1200

Unavailable

41

NUT-HEX-FINE

315B1200

Unavailable

42

CHAIN

58041-007

Unavailable

43

PLUG RUBBER

92074-005

Unavailable

44

GUARD-ENGINE

55011-014

$12.17

45

WASHER,6.5X20X1.6

92022-125

$1.25

46,47

LOCK ASSY-STEERING

27016-028

$24.02

47

KEY SET-STRNG,#265

27018-014-65

$4.83

47

KEY SET-STRNG,#266

27018-014-66

$5.15

47

KEY SET-STRNG,#267

27018-014-67

$5.15

47

KEY SET-STRNG,#268

27018-014-68

$5.15

47

KEY SET-STRNG,#269

27018-014-69

$5.15

48

SPRING,STEERING LOCK

27032-001

Unavailable

49

CAP,STEERING LOCK

11012-1134

$5.95

50

WASHER,WAVE

92097-003

$3.57

51

SCREW,3.51MM

92008-007

$3.27
