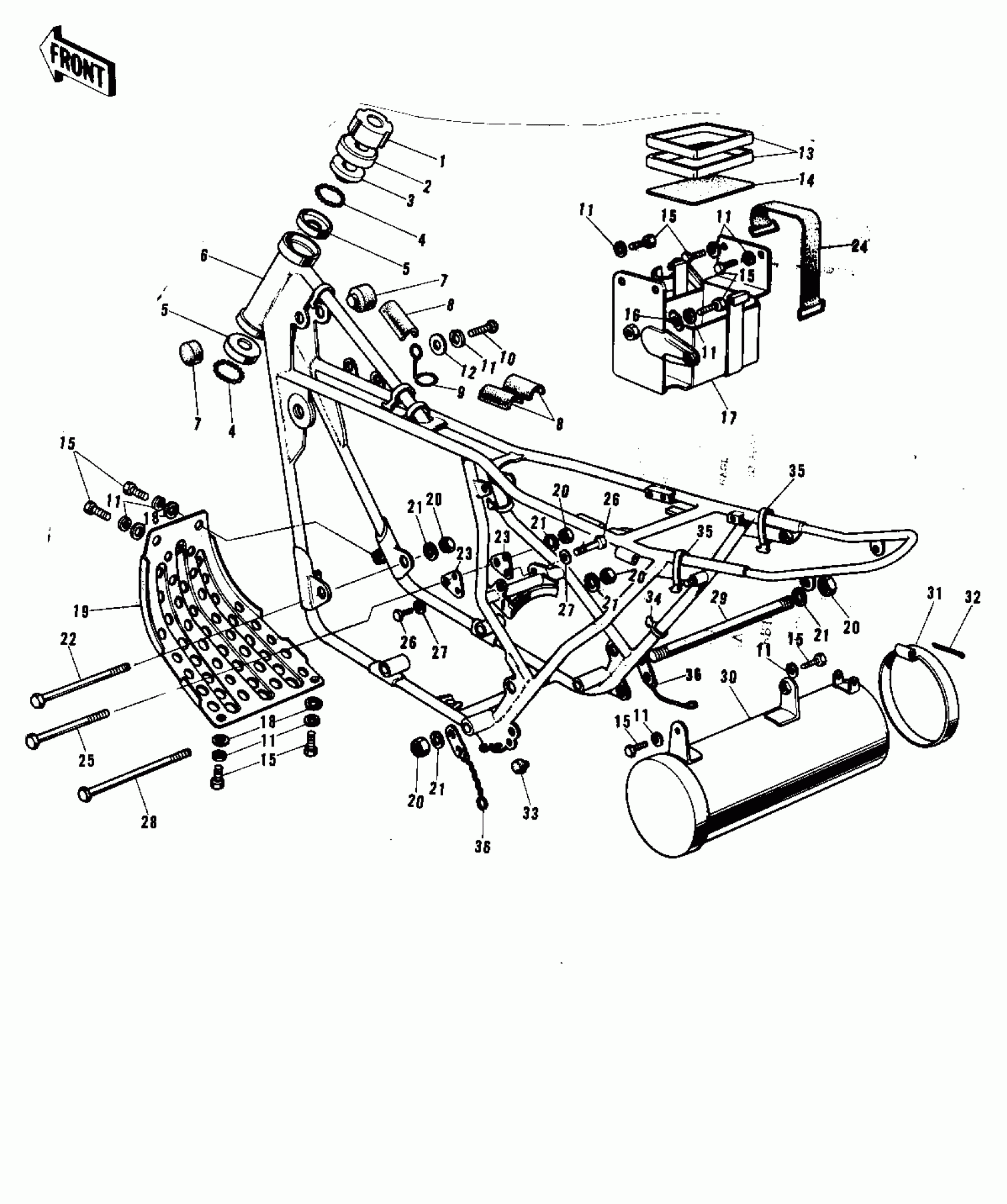

Kawasaki F9-C FRAME/FRAME FITTINGS (F9) Diagram
#
1
NUT STEERING STEM LCK
92090-006
Unavailable
2
CAP STEERING STEM
46098-005
Unavailable
3
CONE STERNG BERG UPP
92047-003
Unavailable
4
BALL-STEEL,1/4
600A0800
Unavailable
5
RACE,STEERING STEM BEARING,LWR
92048-005
Unavailable
6
FRAME
32002-048
Unavailable
7
DAMPER RUBB FUEL TANK
92075-050
Unavailable
8
MAT FUEL TANK
51067-002
Unavailable
9
CLAMP
92037-053
Unavailable
10
BOLT,6X10
112G0610
Unavailable
10
BOLT,6X10
112G0610
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
13
MAT-BATTERY
32103-018
Unavailable
14
MAT-BATTERY
32103-017
Unavailable
15
BOLT-UPSET,6X12
112G0612
Unavailable
15
BOLT-UPSET,6X12
112G0612
Unavailable
16
WASHER LOCK 6MM
464H0600
Unavailable
17
CASE-BATTERY
32097-016
Unavailable
18
WASHER,6.5X20X1.6
92022-125
Unavailable
19
GUARD-ENGINE
55011-011
Unavailable
20
NUT-HEX-FINE
314B1200
Unavailable
21
WASHER-SPRING,12MM
461F1200
Unavailable
22
BOLT-HEX HEAD,12X163
113B12163A
Unavailable
23
PLATE-ENGINE MOUNT
32030-020
Unavailable
24
BAND
92072-012
Unavailable
25
BOLT, HEX HEAD,12X151
113B12151A
Unavailable
26
BOLT,8X20
115G0820
Unavailable
27
WASHER SPRING 8MM
461F0800
Unavailable
28
BOLT-HEX HEAD,12X260
113B12260A
Unavailable
29
STUD
92006-002
Unavailable
30
BOX-TOOL,BLACK
32098-014-21
Unavailable
31
CAP-TOOL CASE
32099-005
Unavailable
32
PIN COTTER 2.0X30
550D2030
Unavailable
33
PLUG RUBBER
92074-005
Unavailable
34
BAND RUBBER
92072-013
Unavailable
35
BAND RUBBER
92072-018
Unavailable
36
UNAVAILABLE IN PRICE BOOK
58041-003
Unavailable
