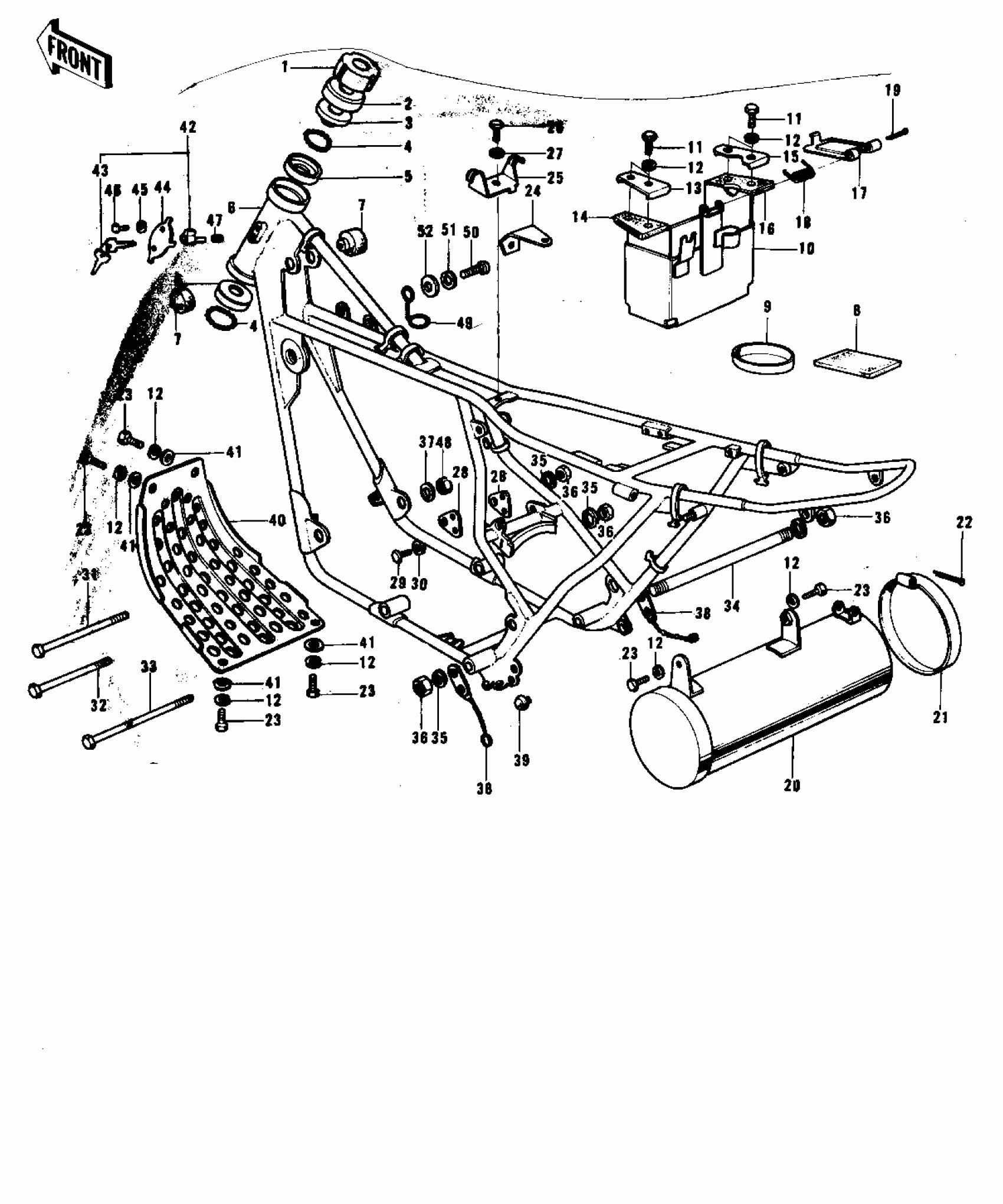

Kawasaki F9-C FRAME/FRAME FITTINGS Diagram
#
1
NUT STEERING STEM LCK
92090-006
Unavailable
2
CAP-STEERING STEM
46098-011
Unavailable
3
CONE STERNG BERG UPP
92047-003
Unavailable
4
BALL-STEEL,1/4
600A0800
Unavailable
5
RACE,STEERING STEM BEARING,LWR
92048-005
Unavailable
6
FRAME
32002-082
Unavailable
7
DAMPER RUBB FUEL TANK
92075-050
Unavailable
8
MAT-BATTERY
32103-022
Unavailable
9
DAMPER,BATTERY BOTTOM
32103-023
Unavailable
10
CASE,BATTERY
32097-025
Unavailable
11
BOLT-UPSET
112G0618
Unavailable
11
BOLT-UPSET
112G0618
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
PLATE,L.H BATERY CAS
32101-006
Unavailable
14
DAMPER RUBBER-BATTER
92075-152
Unavailable
15
PLATE,R.H BATERY CAS
32101-007
Unavailable
16
DAMPER RUBBER,BATTER
92075-153
Unavailable
17
BAND,BATTERY
92072-048
Unavailable
18
SPRING-RETURN
92083-017
Unavailable
19
PIN-COTTER,2.5X35
550D2535
Unavailable
19
PIN,COTTER,2.5X40
550D2540
Unavailable
20
BOX-TOOL,BLACK
32098-014-21
Unavailable
21
CAP-TOOL CASE
32099-005
Unavailable
22
PIN COTTER 2.0X30
550D2030
Unavailable
23
BOLT-UPSET,6X12
112G0612
Unavailable
23
BOLT-UPSET,6X12
112G0612
Unavailable
24
BRACKET-TRN.SGNL.RLY
27023-001
Unavailable
25
BRACKET,FUEL TANK
32052-046
Unavailable
26
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
26
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
27
WASHER SPRING 8MM
461F0800
Unavailable
28
PLATE-ENGINE MOUNT
32030-020
Unavailable
29
BOLT,8X20
115G0820
Unavailable
29
BOLT,8X20
115G0820
Unavailable
30
WASHER SPRING 8MM
461F0800
Unavailable
31
BOLT-HEX HEAD,12X163
113B12163A
Unavailable
32
BOLT, HEX HEAD,12X151
113B12151A
Unavailable
33
BOLT-HEX HEAD,12X260
113B12260A
Unavailable
34
STUD
92006-002
Unavailable
35
WASHER-SPRING,12MM
461F1200
Unavailable
36
NUT-HEX-FINE
314B1200
Unavailable
37
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
38
CHAIN
58041-007
Unavailable
39
PLUG RUBBER
92074-005
Unavailable
40
GUARD-ENGINE
55011-011
Unavailable
41
WASHER,6.5X20X1.6
92022-125
Unavailable
42
LOCK-ASSY,STEERING
27016-042
Unavailable
43
KEY SET,#411
27008-063-11
Unavailable
43
KEY SET,#412
27008-063-12
Unavailable
43
KEY SET,#413
27008-063-13
Unavailable
43
KEY SET,#414
27008-063-14
Unavailable
43
KEY SET,#415
27008-063-15
Unavailable
43
KEY SET,#416
27008-063-16
Unavailable
43
KEY SET,#417
27008-063-17
Unavailable
43
KEY SET,#418
27008-063-18
Unavailable
43
KEY SET,#419
27008-063-19
Unavailable
43
KEY SET,#420
27008-063-20
Unavailable
44
CAP,STEERING LOCK
11012-1134
Unavailable
45
BOLT,10X32
92003-003
Unavailable
46
SCREW,3.51MM
92008-007
Unavailable
47
SPRING,STEERING LOCK
27032-001
Unavailable
48
NUT-LOCK,12MM
92019-009
Unavailable
49
CLAMP
92037-053
Unavailable
50
BOLT,6X10
112G0610
Unavailable
50
BOLT,6X10
112G0610
Unavailable
51
WASHER SPRING 6MM
461F0600
Unavailable
52
WASHER PLAIN 6MM
411B0600
Unavailable
