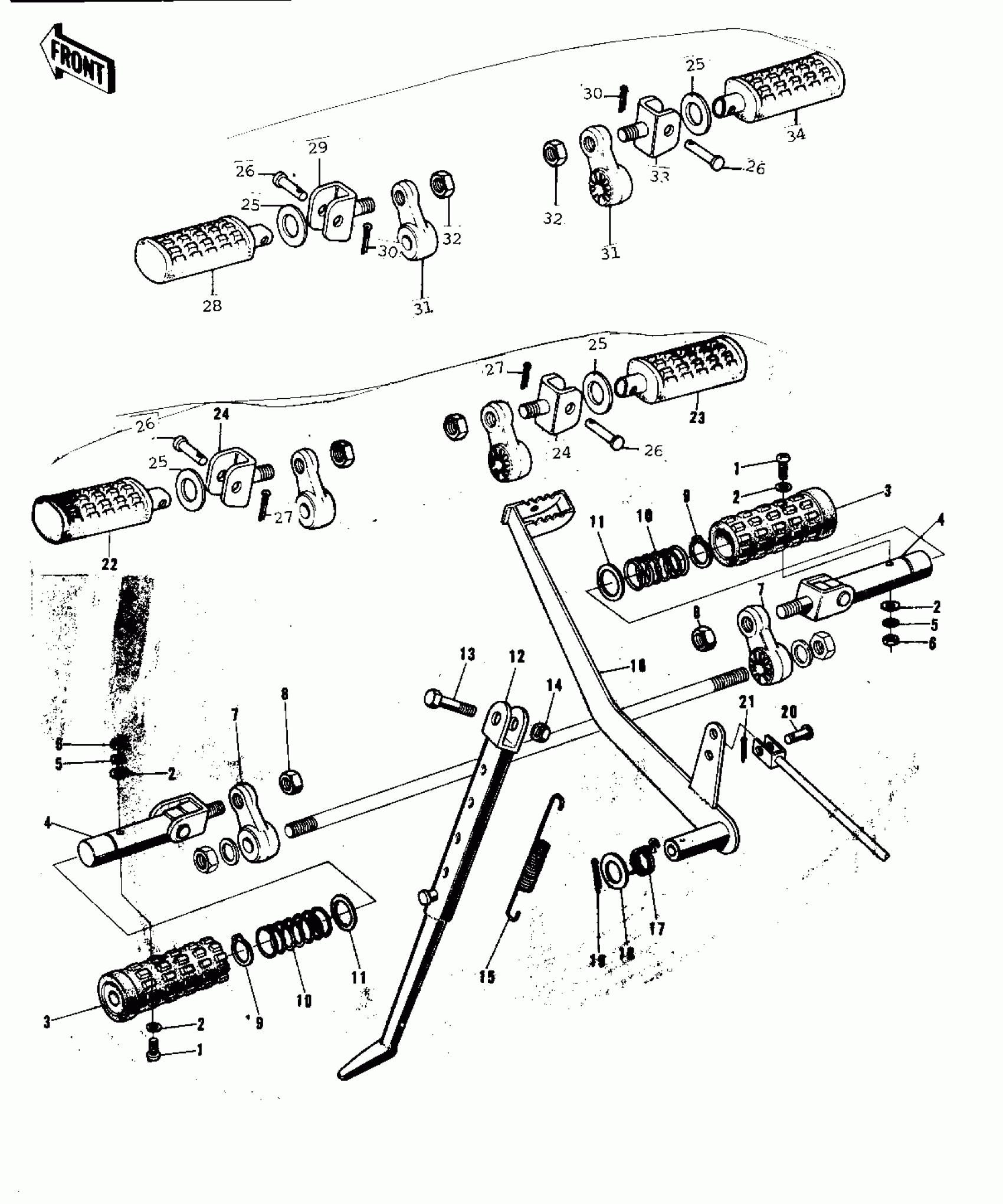

Kawasaki F9-C FOOTRESTS/STAND/BRAKE PEDAL ('74-'75 F9- Diagram

#

Description
Price

1

SCREW-PAN-CROS

220B0540

Unavailable

2

WASHER PLAIN 5MM

410B0500

Unavailable

3

RUBBER-FOOTREST

92076-023

Unavailable

4

BAR-FOOTREST

34003-032

$42.15

5

WASHER SPRING 5MM

461F0500

Unavailable

6

NUT-HEX

311B0500

$0.51

7

BRACKET-FOOTREST BAR

34007-009

Unavailable

8

NUT-LOCK,12MM

92019-009

$7.20

9

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

10

SPRING FOOTREST PEG

34006-002

Unavailable

11

WASHER FOLDING PEG

92022-049

Unavailable

12

STAND-SIDE

34024-025

$60.12

13

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

14

NUT-HEX-FINE,10MM

315B1000

Unavailable

15

SPRING MAIN STAND

34023-005

$8.66

16

PEDAL-BRAKE,BLACK

43001-036-10

$38.86

17

SPRING-BRAKE PEDAL

43005-013

$8.80

18

WASHER BRAKE PEDAL

92022-085

$3.53

19

PIN-COTTER,3.0X30

550D3030

$2.08

20

PIN R BRK CABLE JOINT

92043-034

Unavailable

21

PIN COTTER 2.0X15

550D2015

Unavailable

22

STEP-ASSY,FR,LH

34027-1114

Unavailable

23

STEP-ASSY,FR,RH

34027-1115

Unavailable

24

HOLDER,FOTRST BAR,LH

34021-001-10

Unavailable

25

WASHER PL 22.5X36X2.3

92022-204

Unavailable

26

PIN,8X31

92043-080

$5.03

27

PIN-COTTER,2.5X15

550D2515

$0.51

28

STEP-ASSY,FR,LH

34027-1114

Unavailable

29

HOLDER,FOTRST BAR,LH

34021-001-10

Unavailable

30

PIN COTTER 2.5X16

550D2516

Unavailable

31

BRACKET-FOOTREST BAR

34007-009

Unavailable

32

NUT-LOCK,12MM

92019-009

$7.20

33

HOLDER-FOTRST BAR,RH

34021-003-10

Unavailable

34

STEP-ASSY,FR,RH

34027-1115

Unavailable
