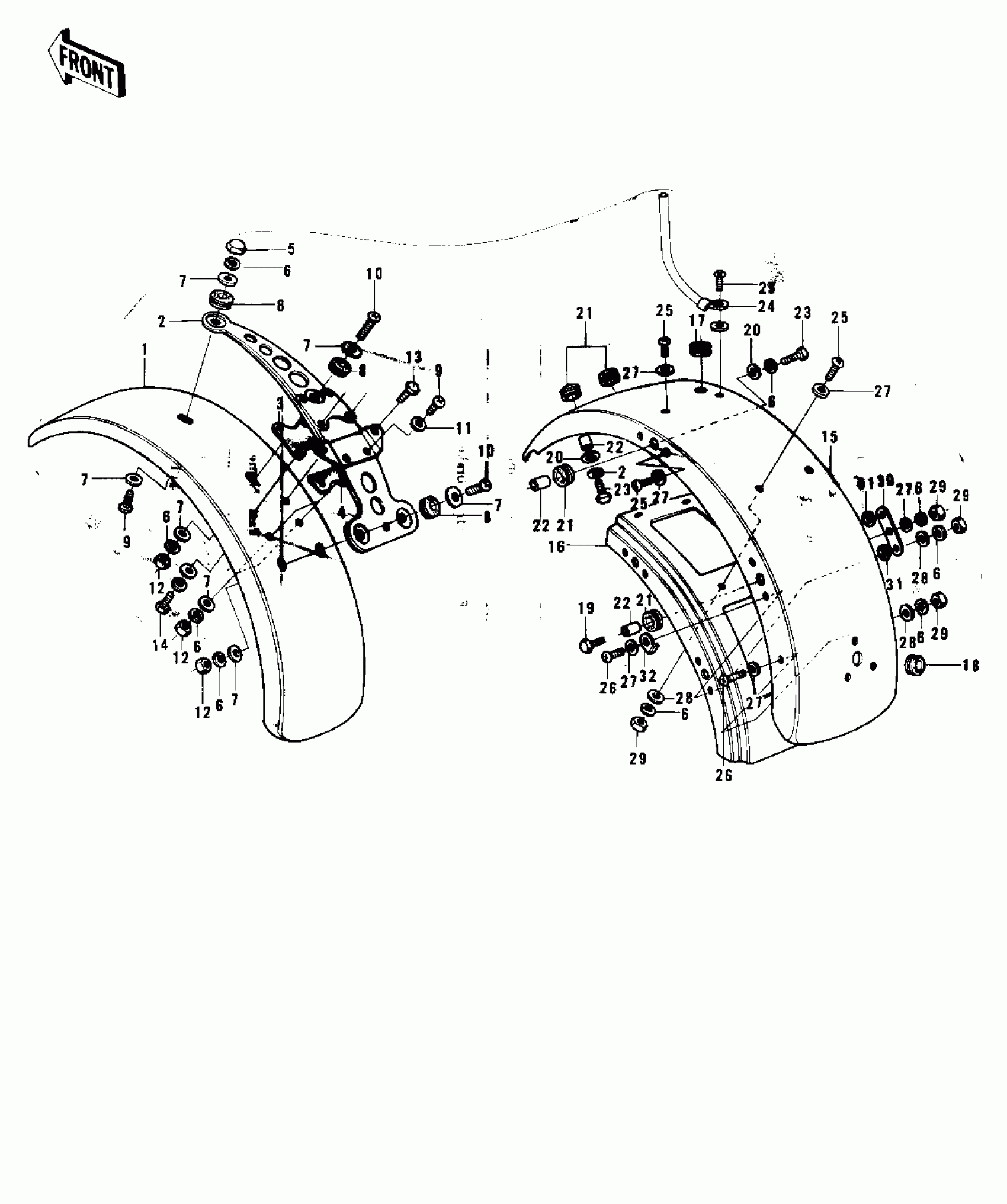

Kawasaki F9-C FENDERS (F9-A) Diagram
#
Description
Price
1
FENDER-FR,L.GREEN
35004-071-90
Unavailable
2
BRACKET,FRONT FENDER
35012-019
Unavailable
3
DAMPER RUBBER-F.FEND
35007-002
Unavailable
4
DAMPER RUBBER-FR FND
35007-003
Unavailable
5
NUT,6MM
92015-009
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
WASHER,6.5X20X1.6
92022-125
Unavailable
8
DAMPER RUBBER
92075-051
Unavailable
9
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
10
SCREW-PAN-CROS,6X20
220E0620
Unavailable
11
WASHER PLAIN
92022-024
Unavailable
12
NUT 6MM
312B0600
Unavailable
13
BOLT-UPSET
112G0625
Unavailable
13
BOLT-UPSET
112G0625
Unavailable
14
BOLT-UPSET,6X40
112G0640
Unavailable
15
FENDER-RR,L.GREEN
35022-075-90
Unavailable
16
BRACE-REAR FENDER
35034-010
Unavailable
17
GROMMET HARNESS 10MM
92071-010
Unavailable
18
GROMMET,10MM
92071-019
Unavailable
19
BOLT HEX HEAD 6X18
110N0618
Unavailable
20
WASHER,6.5X20X1.6
92022-125
Unavailable
21
DAMPER RUBBER
92075-051
Unavailable
22
COLLAR
92027-103
Unavailable
23
BOLT-UPSET,6X20
112G0620
Unavailable
23
BOLT-UPSET,6X20
112G0620
Unavailable
24
CLAMP CABLE
92037-020
Unavailable
25
SCREW-PAN-CROS,6X14
220B0614
Unavailable
26
SCREW PAN HEAD 6X14
220E0614
Unavailable
27
WASHER PLAIN
92022-024
Unavailable
28
WASHER PLAIN 6MM
411B0600
Unavailable
29
NUT 6MM
311B0600
Unavailable
30
WASHER-PLAIN
92022-200
Unavailable
31
DAMPER RUBBER
92075-097
Unavailable
32
CLIP WIRING HARNESS
35024-002
Unavailable
