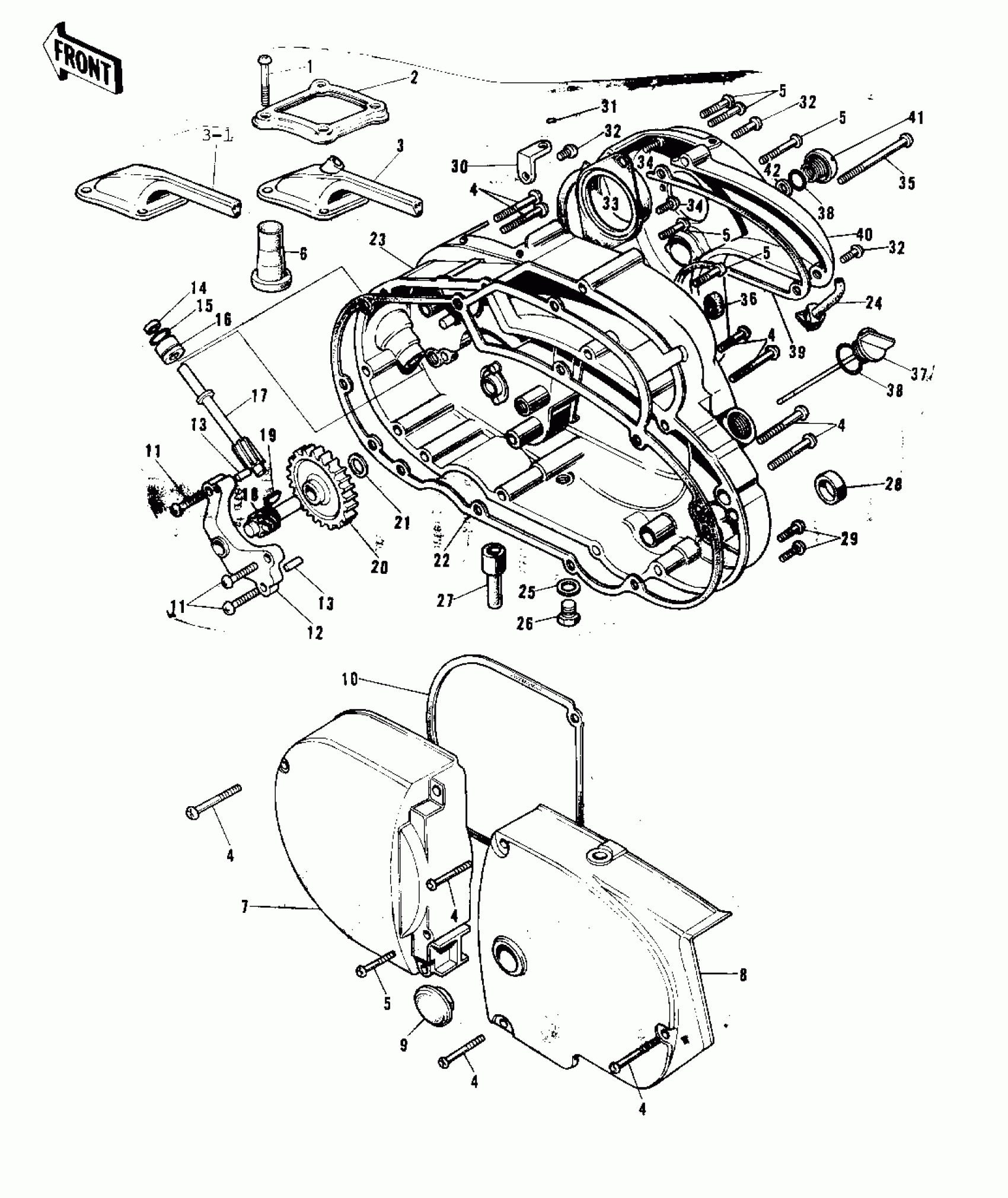

Kawasaki F9-C ENGINE COVERS ('72-'73 F9/F9-A 350) Diagram
#
1
SCREW-PAN-CROS
220B0512
Unavailable
2
HOLDER-CARBURETOR CA
14065-001
Unavailable
3
CAP,CARBURETOR
14038-034
Unavailable
3-1
CAP,CARBURETOR
14038-034
Unavailable
4
SCREW PAN HEAD 6X55
220B0655
Unavailable
5
SCREW PAN HEAD 6X35
220B0635
Unavailable
6
RUBBER PLUG-CARB CAP
92074-021
Unavailable
7
COVER-LH ENG,BLACK
14031-038-21
Unavailable
8
COVER-CHN CASE,BLACK
14026-005-21
Unavailable
9
CAP-CLUTCH HOLE
14040-003
Unavailable
10
GASKET-L.H ENG COVER
14045-008
Unavailable
11
SCREW PAN HEAD 6X25
220B0625
Unavailable
12
HOLDER-TACHOMETER GR
14018-004
Unavailable
13
ROLLER,5X12
610A0512
Unavailable
14
OIL SEAL
92054-004
Unavailable
15
RING-O,12X1.5
92055-025
Unavailable
16
BUSH
92028-075
Unavailable
17
GEAR-TACHOMETER
13223-004
Unavailable
18
PINION-TACHOMETER
13224-006
Unavailable
19
KEY-WOODRUFF
510A3100
Unavailable
20
GEAR-OIL PUMP
16085-014
Unavailable
21
WASHER THRUST
92026-025
Unavailable
22
GASKET-R.H-ENG.CVR
14046-020
Unavailable
23
COVER,R.H ENG,F.BLAC
14032-090-21
Unavailable
24
GROMMET-OVERFLOW PIP
16136-006
Unavailable
25
GASKET,10.5X16X1
92065-058
Unavailable
26
PLUG,DRAIN,10X12
92067-001
Unavailable
27
PIPE FUEL OVERFLOW
16116-001
Unavailable
28
SEAL-OIL,SB20285
92049-012
Unavailable
29
SCREW PAN HEAD 6X30
220B0630
Unavailable
30
HOLDER-OIL PUMP CABLE
14044-005
Unavailable
31
CIRCLIP
92036-017
Unavailable
32
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
33
HOLDER-CARBURETOR
16065-010
Unavailable
34
SCREW PAN HEAD 6X12
220B0612
Unavailable
35
SCREW PAN HEAD 6X70
220B0670
Unavailable
36
STOPPER-CARBURETOR
14064-001
Unavailable
37
PLUG-OIL FILLER
16115-017
Unavailable
38
O RING,20MM
670B2020
Unavailable
39
GASKET-CARBURETOR CO
14048-002
Unavailable
40
COVER-CARB,F.BLACK
14030-034-21
Unavailable
41
PLUG-CARBURETOR COVER
92067-006
Unavailable
42
WASHER-RUBBER
92094-010
Unavailable
