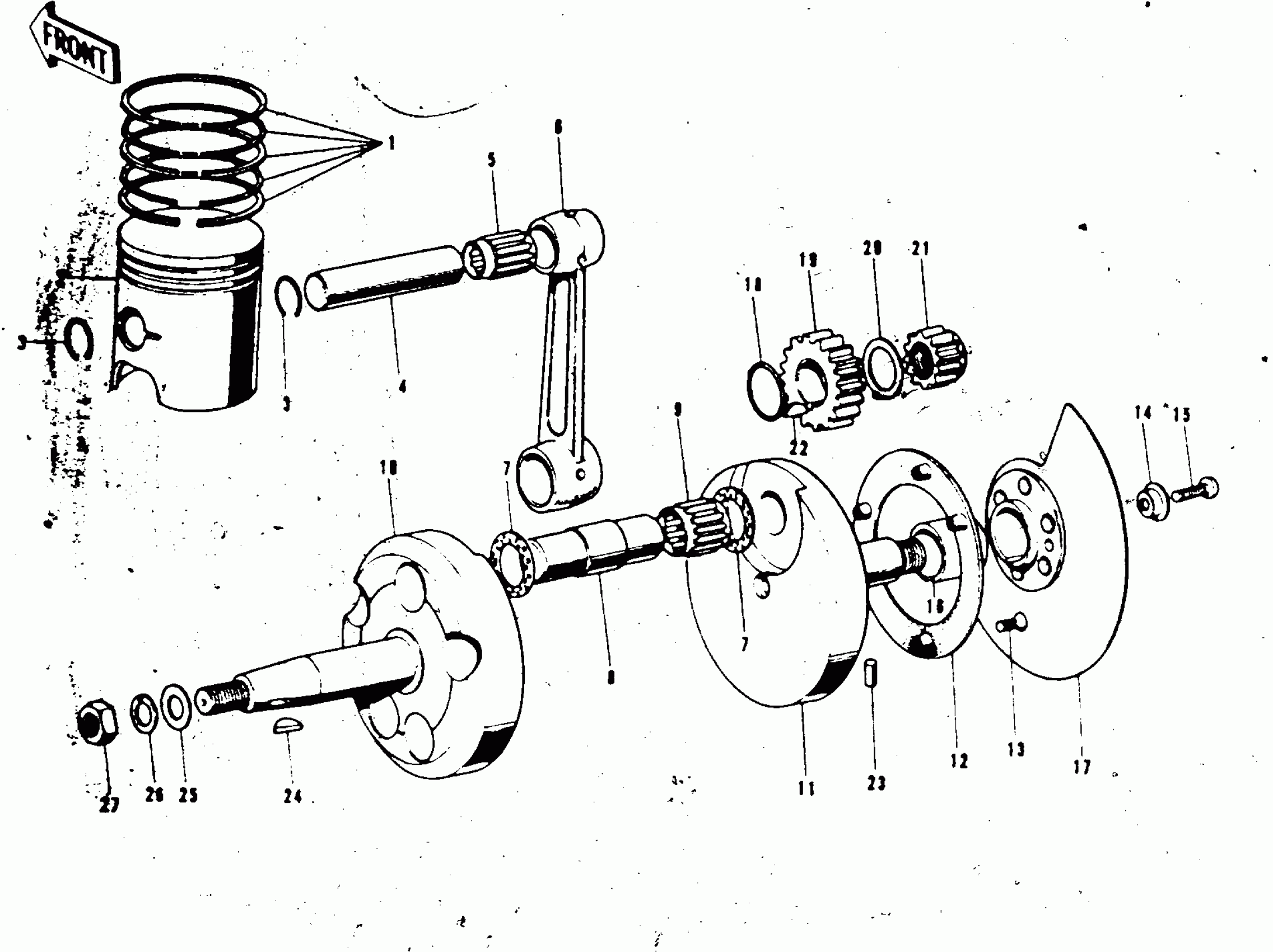

Kawasaki F9-C CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75 Diagram
#
Description
Price
1
RING SET,STD
13008-024
Unavailable
1
RING SET,0.020'' O.S
13025-027
Unavailable
1
RING SET,0.040'' O.S
13024-031
Unavailable
2
PISTON,STD
13001-039
Unavailable
2
PISTON,0.020'' O.S
13029-040
Unavailable
2
PISTON,0.040'' O.S
13027-039
Unavailable
3
CIRCLIP-PISTON PIN
92036-015
Unavailable
4
PIN-PISTON
13002-016
Unavailable
5
BEARING-SMALL END
13033-1010
Unavailable
6 9
CONNECTING ROD SET
13044-017
Unavailable
6 13
CRANK&CONROD ASSY
13036-036
Unavailable
7
WASHER-CONROD SIDE
92026-069
Unavailable
8
CRANK PIN
13035-026
Unavailable
9
NEEDLE BRG-BIG END
13034-032
Unavailable
9
NEEDLE BRG-BIG END
13034-032
Unavailable
10
CRANKSHAFT,L.H
13037-045
Unavailable
11
CRANKSHAFT,R.H
13038-045
Unavailable
12
HOLDER-CRANKSHAFT OI
13045-006
Unavailable
13
SCREW OVL CNTSNK 5X10
92012-002
Unavailable
14
SPACER-R.H CRANKSHAF
92026-071
Unavailable
15
SCREW-PAN HEAD,6X20
92011-025
Unavailable
16
CALLAR-CRANKSHAFT
92027-097
Unavailable
17
VALVE-ROTARY DISC
12001-022
Unavailable
18
"0" RING,22MM
670B3022
Unavailable
19
PINION,PRIMARY 24T
13121-028
Unavailable
20
WASHER-LOCK,18MM
92024-029
Unavailable
21
PINION-OIL PUMP
16084-011
Unavailable
22
WOODRUFF KEY
510A5100
Unavailable
23
ROLLER,4X12
610A0412
Unavailable
24
KEY,WOODRUFF
92038-001
Unavailable
25
WASHER-PLAIN,14MM
92022-172
Unavailable
26
WASHER SPRING 14MM
461F1400
Unavailable
27
NUT 14MM
92015-043
Unavailable
