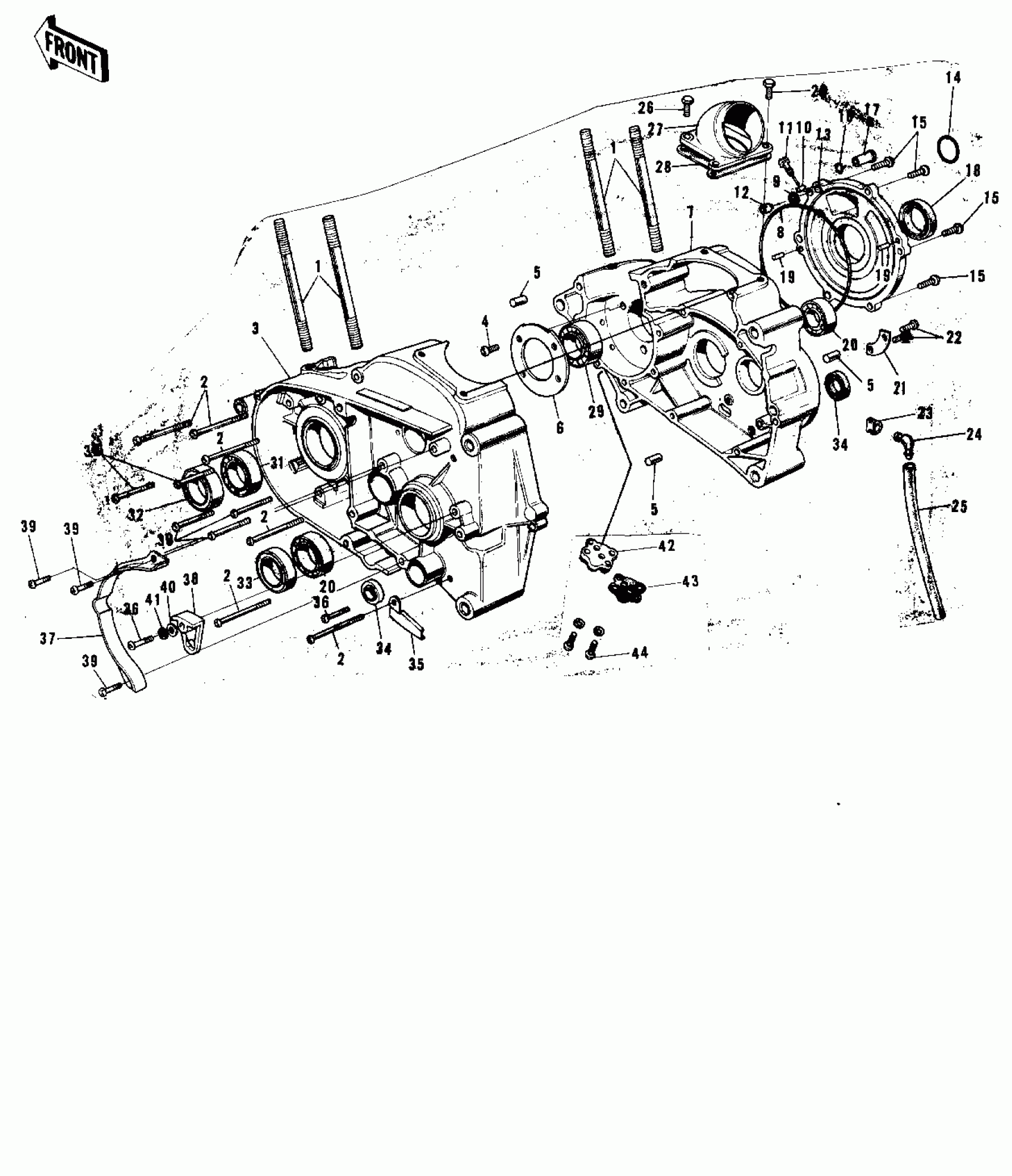

Kawasaki F9-C CRANKCASE ('74-'75 F9-B/F9-C 350) Diagram
#
1
STUD 10X75
172G1075
Unavailable
2
SCREW-PAN-CROS,6X75
220B0675
Unavailable
3
CRANKCASE,L.H F.BLAC
14002-088-21
Unavailable
4
SCREW-CSK-CROS,6X16
221B0616
Unavailable
5
PIN,DOWEL,10X14
92043-1037
Unavailable
6
HOLDER-CRANK BEARING
14014-019
Unavailable
7
CRANKCASE,R.H F.BLAC
14003-062-21
Unavailable
8
"0" RING,134.5MM
92055-039
Unavailable
9
O RING,5MM
670B1505
Unavailable
10
"0" RING,5MM
92055-011
Unavailable
11
NOZZLE OIL INJECTION
92062-004
Unavailable
12
NOZZLE,OIL METERING
92062-008
Unavailable
13
COVER-ROTARY DISC VL
14019-048
Unavailable
14
"0" RING,35MM
670B3035
Unavailable
15
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
16
"0" RING,CHECK VALVE
92055-037
Unavailable
17
VALVE-CHECK
16128-006
Unavailable
18
OIL SEAL TB35488
653B354808
Unavailable
19
ROLLER,5X12
610A0512
Unavailable
20
BEARING-BALL,#6205C3
601B6205
Unavailable
21
HOLDER-MISSION BERNG
14014-020
Unavailable
22
SCREW-PAN-CROS,6X14
220B0614
Unavailable
23
GROMMET,BREATHER
92071-042
Unavailable
24
BREATHER ASSY
14069-1001
Unavailable
25
PIPE-BREATHER
92059-061
Unavailable
26
BOLT,HEX HEAD,6X20
92001-136
Unavailable
26
BOLT-UPSET,6X20
112G0620
Unavailable
27
PIPE,INLET,T.BLACK
11015-041-21
Unavailable
28
GASKET-INLET PIPE
11017-005
Unavailable
29
BEARING-BALL
92045-016
Unavailable
30
SCREW PAN HEAD 6X50
220B0650
Unavailable
31
BEARING-BALL,#6305C3
601B6305
Unavailable
32
SEAL-OIL
92049-1250
Unavailable
33
SEAL-OIL,TB3040
92050-033
Unavailable
34
SEAL-OIL,SB12205
92049-004
Unavailable
35
COVER-WIRING HARNESS
14076-001
Unavailable
36
SCREW PAN HEAD 6X30
220B0630
Unavailable
37
GUIDE-CHAIN
14077-001
Unavailable
38
TENSIONER-CHAIN
13123-004
Unavailable
39
SCREW PAN HEAD 6X12
220B0612
Unavailable
40
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
41
WASHER SPRING 6MM
461F0600
Unavailable
42
VALVE,CHECK
16128-008
Unavailable
43
GASKET,CHECK VALVE
14051-003
Unavailable
44
SCREW PAN HEAD 6X25
220B0625
Unavailable
