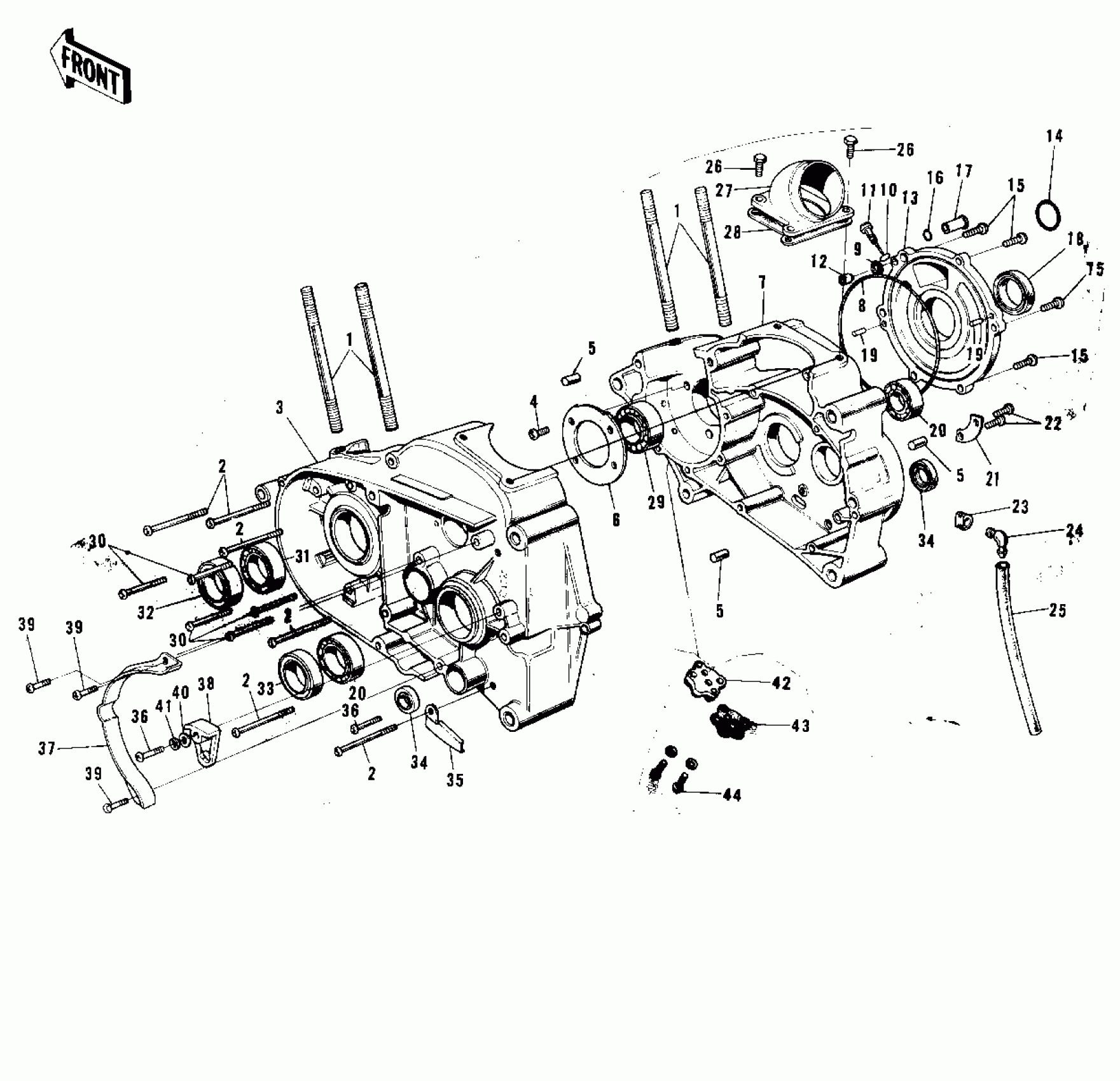

Kawasaki F9-C CRANKCASE ('72-'73 F9/F9-A 350) Diagram
#
Description
Price
1
STUD 10X75
172G1075
Unavailable
2
SCREW-PAN-CROS,6X75
220B0675
Unavailable
3
CRANKCASE SET
14001-065
Unavailable
6
HOLDER-CRANK BEARING
14014-019
Unavailable
7
CRANKCASE SET
14001-065
Unavailable
7
CRANKCASE,R.H
14003-062
Unavailable
8
"0" RING,134.5MM
92055-039
Unavailable
10
"0" RING,5MM
92055-011
Unavailable
11
NOZZLE OIL INJECTION
92062-004
Unavailable
12
NOZZLE,OIL METERING
92062-008
Unavailable
13
COVER-ROTARY DISC VL
14019-048
Unavailable
14
"0" RING,35MM
670B3035
Unavailable
16
"0" RING,CHECK VALVE
92055-037
Unavailable
17
VALVE-CHECK
16128-006
Unavailable
18
OIL SEAL TB35488
653B354808
Unavailable
21
HOLDER-MISSION BERNG
14014-020
Unavailable
25
PIPE-BREATHER
92059-061
Unavailable
26
BOLT-UPSET,6X20
112G0620
Unavailable
26
BOLT-UPSET,6X20
112G0620
Unavailable
27
INLET PIPE
11015-021
Unavailable
28
GASKET-INLET PIPE
11017-005
Unavailable
29
BEARING-BALL
92045-016
Unavailable
35
COVER-WIRING HARNESS
14076-001
Unavailable
36
SCREW PAN HEAD 6X30
220B0630
Unavailable
37
GUIDE-CHAIN
14077-001
Unavailable
38
TENSIONER-CHAIN
13123-004
Unavailable
39
SCREW PAN HEAD 6X12
220B0612
Unavailable
41
WASHER SPRING 6MM
461F0600
Unavailable
42
VALVE,CHECK
16128-008
Unavailable
43
GASKET,CHECK VALVE
14051-003
Unavailable
44
SCREW PAN HEAD 6X25
220B0625
Unavailable
