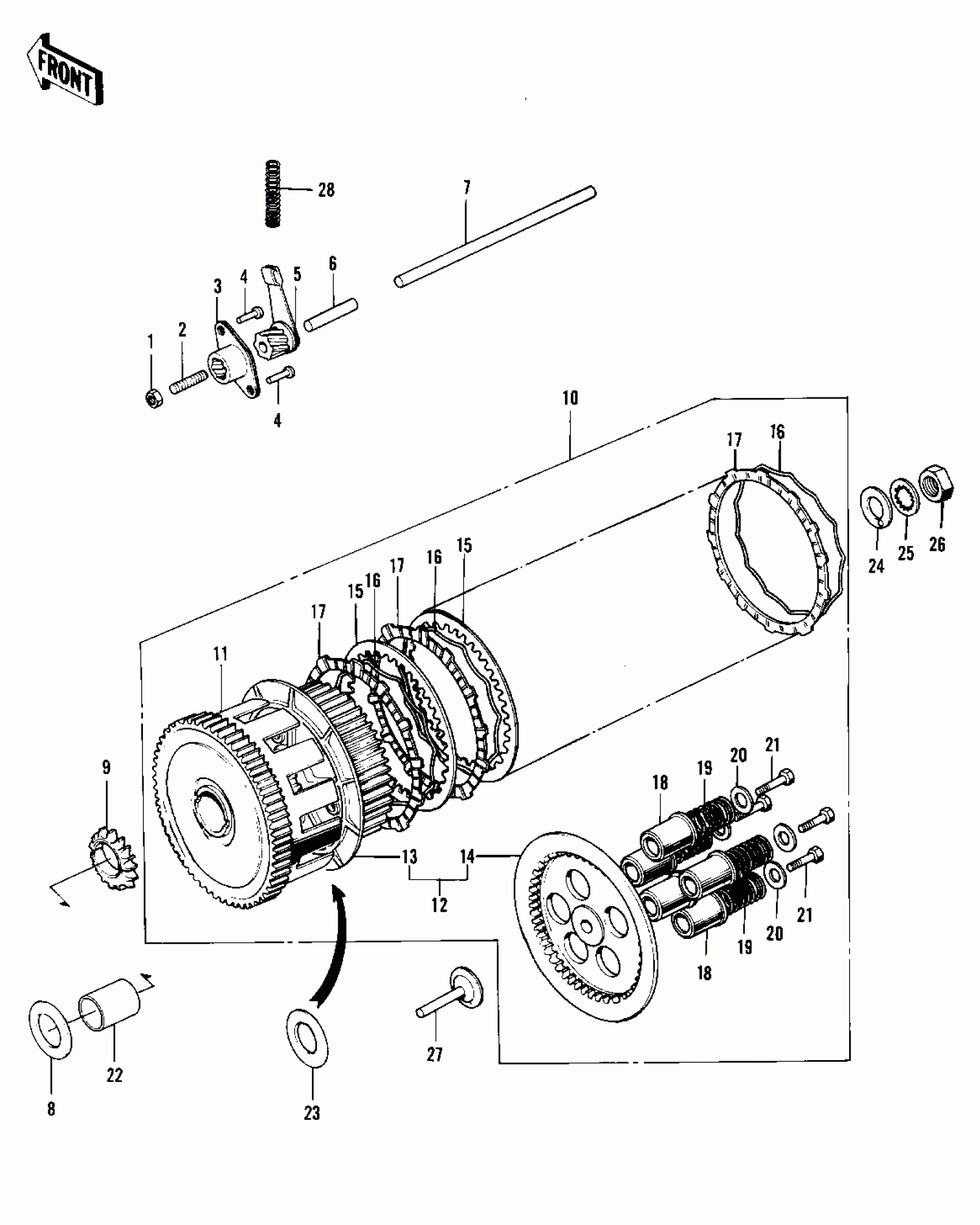

Kawasaki F9-C CLUTCH ('74-'75 F9-B/F9-C 350) Diagram
#
Description
Price
1
NUT 6MM
311B0600
Unavailable
2
SCREW-CLUTCH ADJUST
92014-011
Unavailable
3
RELEASE OUTER-CLUTCH
13118-005
Unavailable
4
SCREW-PAN-CROS,6X14
220B0614
Unavailable
5
RELEASE INNER-CLUTCH
13102-010
Unavailable
6
PUSH ROD-CLUTCH,SHOR
13116-013
Unavailable
7
PUSH ROD-CLUTCH,LONG
13116-012
Unavailable
8
WASHER,25.5X38X1
92022-145
Unavailable
9
PINION-KICKSTARTER
13075-007
Unavailable
10
CLUTCH-ASSY
13081-042
Unavailable
11
.HOUSING-CLUTCH
13095-027
Unavailable
12
.HUB SET-CLUTCH
13084-005
Unavailable
13
HUB-CLUTCH
13087-030
Unavailable
14
PLATE-CLUTCH SPRING
13187-005
Unavailable
15
PLATE-CLUTCH,T=1.6
13089-013
Unavailable
16
RING-CLUTCH STEEL
13229-003
Unavailable
16
RING-CLUTCH STEEL
13229-003
Unavailable
17
.PLATE-CLUTCH FRICTIO
13088-021
Unavailable
18
GUIDE CLUTCH SPRING
13092-005
Unavailable
19
SPRING CLUTCH
92081-042
Unavailable
20
HOLDER CL SPG6.5X20X2
13091-009
Unavailable
21
BOLT-UPSET
112G0618
Unavailable
22
BUSHING 25X30X34L
92028-081
Unavailable
23
SPACER,25.5X47X2.5
92026-022
Unavailable
24
WASHER PL 19X36.5X0.
92022-074
Unavailable
25
WASHER LOCK 18MM
463G1800
Unavailable
26
NUT,18MM
92015-019
Unavailable
27
PUSHER-CLTCH SPRG PLT
13116-011
Unavailable
28
SPRING,CLUTCH RELEASE
92081-069
Unavailable
