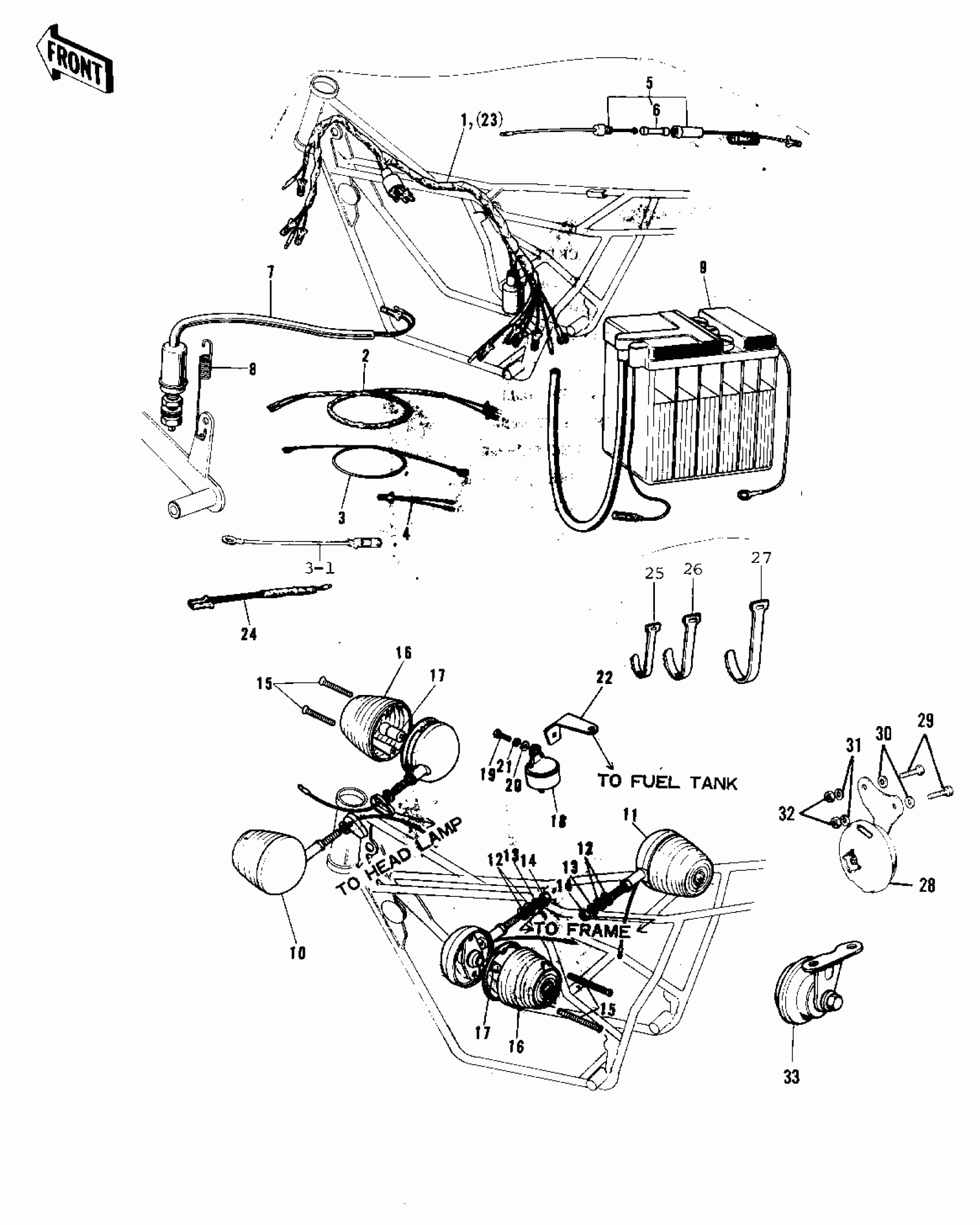

Kawasaki F9-C CHASSIS ELECTRICAL EQUIPMENT ('72-'73 F9 Diagram
#
1
WIRING HARNESS-MAIN
26001-069
Unavailable
1
UNAVAILABLE IN PRICE BOOK
26001-078
Unavailable
2
WIRING HARNWSS REAR
26002-027
Unavailable
2
WIRING HARNESS-REAR
26002-029
Unavailable
3
WIRE BATTERY GROUND
26010-017
Unavailable
3-1
WIRE-LEAD
26011-093
Unavailable
4
LEAD WIRE
26011-042
Unavailable
5
FUES ASSY
26004-008
Unavailable
6
FUSE,10A,L=25
26006-003
Unavailable
7
SWITCH-BRAKE LAMP
27010-018
Unavailable
8
SPRING,BRAKE LAMP SWITCH
27011-004
Unavailable
9
YUA BAT 6N2-2A-3
26012-021
Unavailable
9
YUA BAT 6N4B-2A-3
26012-035
Unavailable
10
LAMP-FRONT TURN SIG
23040-032
Unavailable
11
LAMP-REAR TURN SIGNA
23043-030
Unavailable
12
WASHER PLAIN 10MM
410B1000
Unavailable
13
WASHER SPRING 10MM
461F1000
Unavailable
14
NUT-HEX-FINE,10MM
315B1000
Unavailable
15
SCREW OVL CNTSNK 3X15
222B0315A
Unavailable
16
LENS TURN SIGNAL LAMP
23048-011
Unavailable
17
BULB,6V 8W
92069-042
Unavailable
18
RELAY-TURN SIGNAL
27002-009
Unavailable
19
SCREW-PAN-CROS,6X16
220B0616
Unavailable
20
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
21
WASHER SPRING 6MM
461F0600
Unavailable
22
BRACKET-TRN.SGNL.RLY
27023-001
Unavailable
23
WIRING HARNESS-MAIN
26001-054
Unavailable
24
WIRE-LEAD
26011-058
Unavailable
25
BAND,L=123
92072-030
Unavailable
26
BAND,L=149
92072-031
Unavailable
27
BAND,L=218
92072-032
Unavailable
28
HORN
27003-062
Unavailable
28
HORN
27003-062
Unavailable
29
BOLT-UPSET,6X20
112G0620
Unavailable
30
WASHER PLAIN 6MM
411B0600
Unavailable
31
WASHER SPRING 6MM
461F0600
Unavailable
32
NUT 6MM
311B0600
Unavailable
33
HORN
27003-057
Unavailable
33
HORN
27003-057
Unavailable
