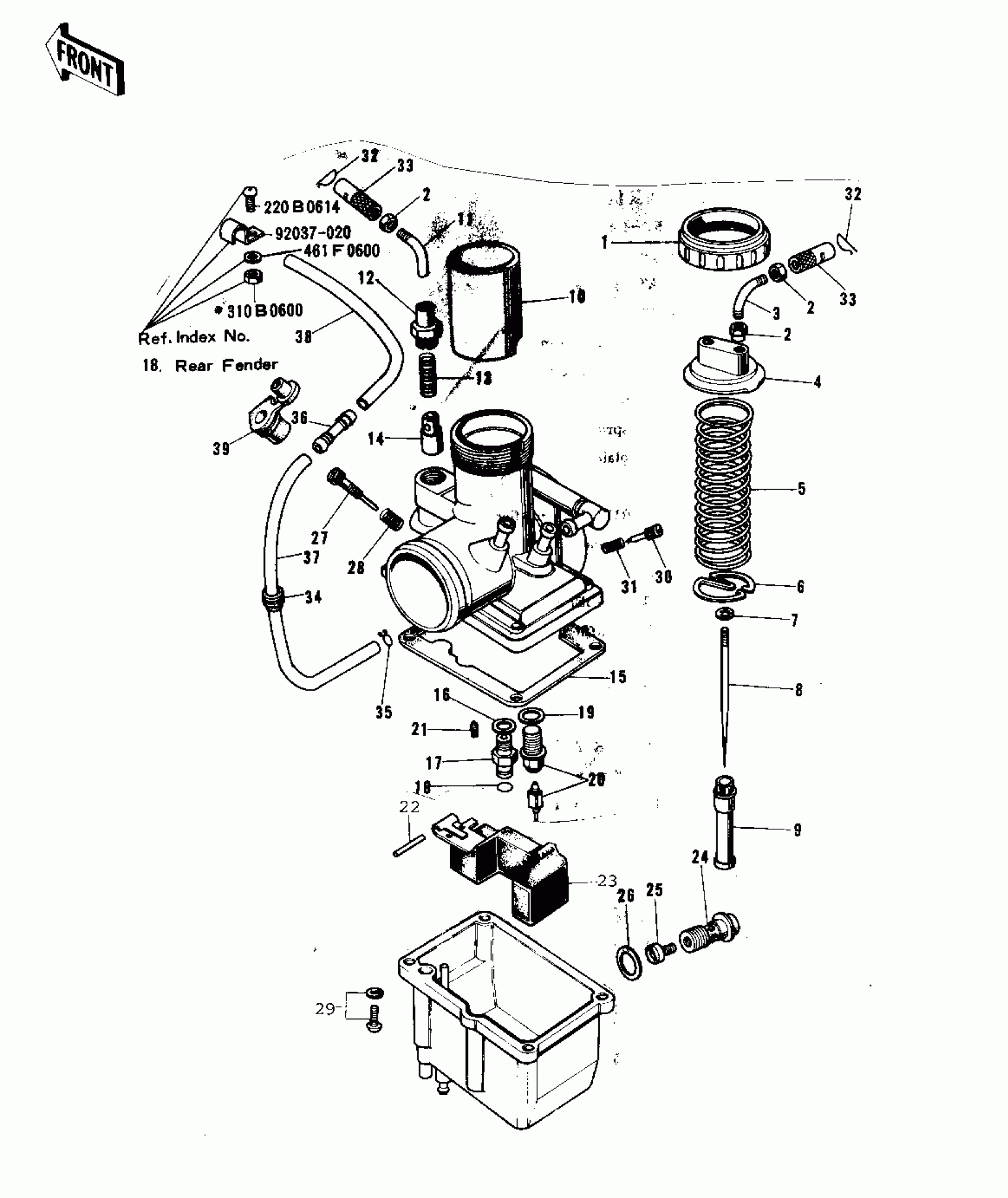

Kawasaki F9-C CARBURETOR ('72-'73 F9/F9-A 350) Diagram

#

Description
Price

1~31

CARBURETOR ASSY

16001-140

$175.14

1~31

CARBURETOR ASSY

16001-161

Unavailable

1

CAP MIXING CHAMBER

16004-006

Unavailable

2

NUT,CABLE ADJUST LOCK

16003-004

$7.53

3

CABLE GUIDE

16077-001

$8.78

4

TOP MIXING CHAMBER

16005-016

Unavailable

5

SPRING THROTTLE VALV

16006-007

$5.22

6

SPRING SEAT THRTL VLV

16007-007

$9.00

7

CLAMP,E-TYPE

16008-010

$8.95

8

JET NEEDLE,5EJ13

16009-048

$27.88

9

NEEDLE JET,O-G

16017-057

$37.29

10

VALVE-THROTTLE,CA1.5

16025-045

$40.78

11

VALVE,THROTTLE CA2.0

16025-052

$47.12

12

CAP-STARTER PLUNGER

16012-013

Unavailable

13

SPRING-PLUNGER

16013-003

$4.36

14

PLUNGER,STARTER

16016-002

$33.31

15

GASKET-FLOAT CHAMBER

16019-017

Unavailable

16

WASHER,MAIN JET

16034-001

$3.57

17

HOLDER-NEEDLE JET

16065-008

$22.19

18

RING-O

92055-044

$8.24

19

WASHER FLOAT VLV SEAT

16029-004

$3.10

20

VALVE-FLOAT,2.5

16030-005

$60.01

21

PILOT JET,#10

92064-034

$12.41

21

PILOT JET,#17.5

92064-046

$6.69

22

FLOAT PIN

16032-006

$7.49

23

FLOAT

16031-022

Unavailable

24

BOLT-BANJO

92001-097

Unavailable

25

MAIN JET NO 120R

92063-078

Unavailable

25

JET-MAIN NO 115R

92063-076

$12.20

25

JET-MAIN NO 117.5R

92063-077

Unavailable

25

JET-MAIN,#A122.5

92063-1101

$13.73

25

MAIN JET NO 125R

92063-055

$13.73

26

GASKET-BANJO BOLT

16034-005

Unavailable

27

SCREW-THROTTLE STOP

16021-014

$5.59

28

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

29

SCREW-PAN-WS-CROS

223B0414

$1.34

30

SCREW-PILOT AIR ADJS

16014-011

Unavailable

31

SPRING,PILOT AIR SCREW

16022-007

$7.97

32

RING-SNAP

92036-018

$3.10

33

CABLE ADJUSTER

16002-007

Unavailable

34

GROMMET,PIPE

92071-038

Unavailable

35

CLAMP,TUBE

92037-010

$3.12

36

NIPPLE

92005-003

$3.53

37

PIPE

92059-065

$34.99

38

PIPE OIL TANK

92059-002

$34.99

39

GROMMET,ACCESS

92071-057

$5.08
