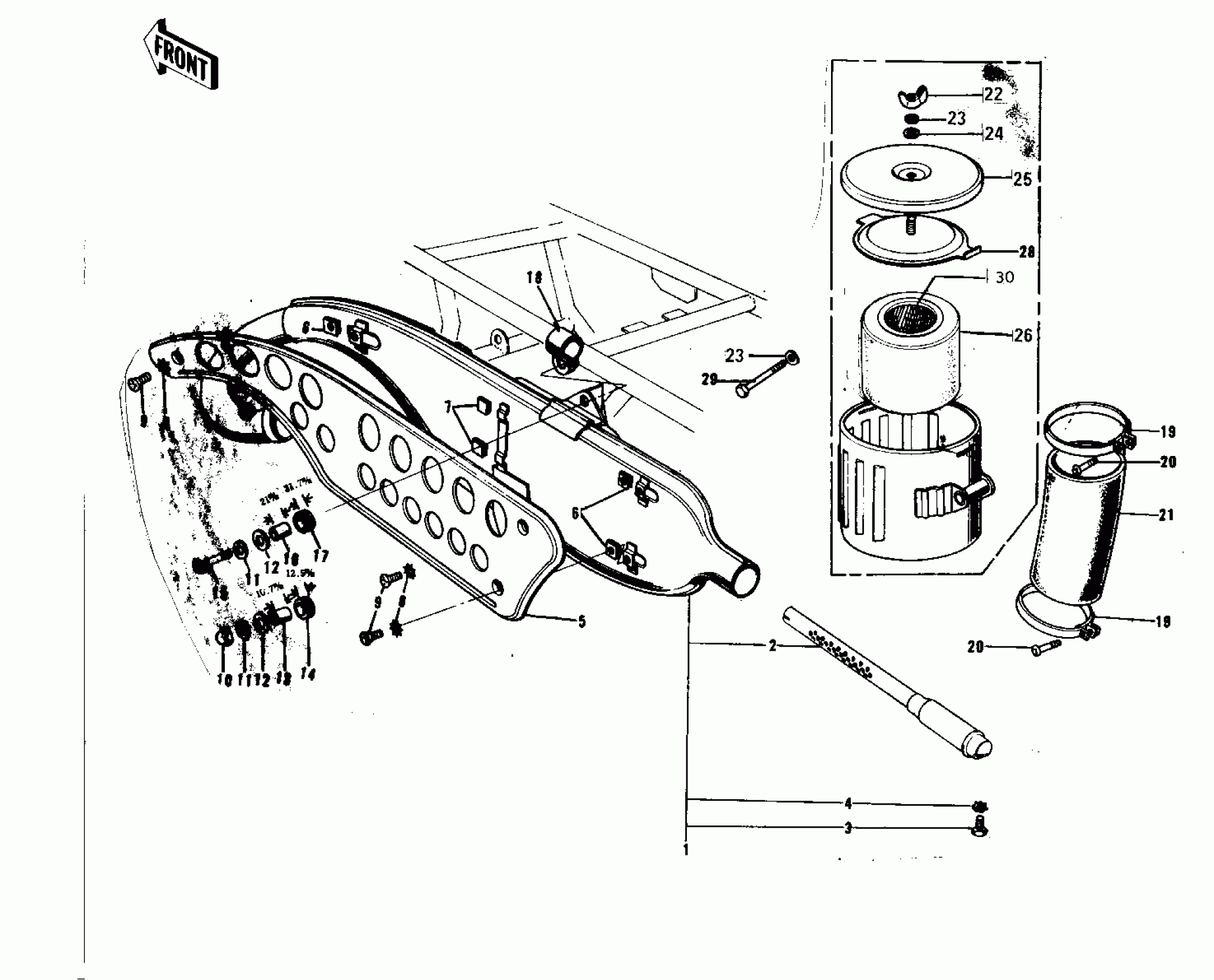

Kawasaki F9-C AIR CLEANER/MUFFLER ('74-'75 F9-B/F9-C 3 Diagram
#
Description
Price
1~4
MUFFLER ASSY,F.BLACK
18001-107-21
Unavailable
2
BAFFLE TUBE
18033-079
Unavailable
3
BOLT-UPSET,6X12
112G0612
Unavailable
3
BOLT-UPSET,6X12
112G0612
Unavailable
4
WASHER LOCK 6MM
463H0600
Unavailable
5
COVER-MUFFLER
18064-006
Unavailable
6
INSULATOR-HEAT
18065-009
Unavailable
7
INSULATOR
18065-007
Unavailable
8
WASHER LOCK 6MM
463H0600
Unavailable
9
SCREW PAN HEAD 6X12
220E0612
Unavailable
10
NUT FUEL TANK FRONT
92020-007
Unavailable
11
WASHER SPRING 8MM
461F0800
Unavailable
12
WASHER FUEL TANK FIT
92022-035
Unavailable
13
COLLAR
92027-102
Unavailable
14
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
15
SCREW-PAN HEAD,8X40
220B0840
Unavailable
16
COLLAR
92027-146
Unavailable
17
DAMPER RUBBER
18063-007
Unavailable
18
BRACKET,UPPER MUFFLE
32069-039
Unavailable
19
CLAMP,AIR CLEANER
92037-129
Unavailable
20
SCREW-PAN-CROS,6X35,B
220C0635
Unavailable
20
SCREW PAN HEAD 6X35
220B0635
Unavailable
21
CONNECTOR
11026-002
Unavailable
22~27
AIR CLEANER ASSY,BLA
11010-072-21
Unavailable
22
NUT-WING,6MM
92015-030
Unavailable
23
WASHER SPRING 6MM
461F0600
Unavailable
24
WASHER PLAIN 6MM
411B0600
Unavailable
25
CAP,AIR CLEANER
11012-042
Unavailable
26
ELEMENT,AIR,CLNR
11013-045
Unavailable
28
HOLDER,AIR CLEANER
11018-001
Unavailable
29
BOLT,EXCLUSIVE
92001-1456
Unavailable
30
ELEMENT AIR CLEANER
11013-015
Unavailable
