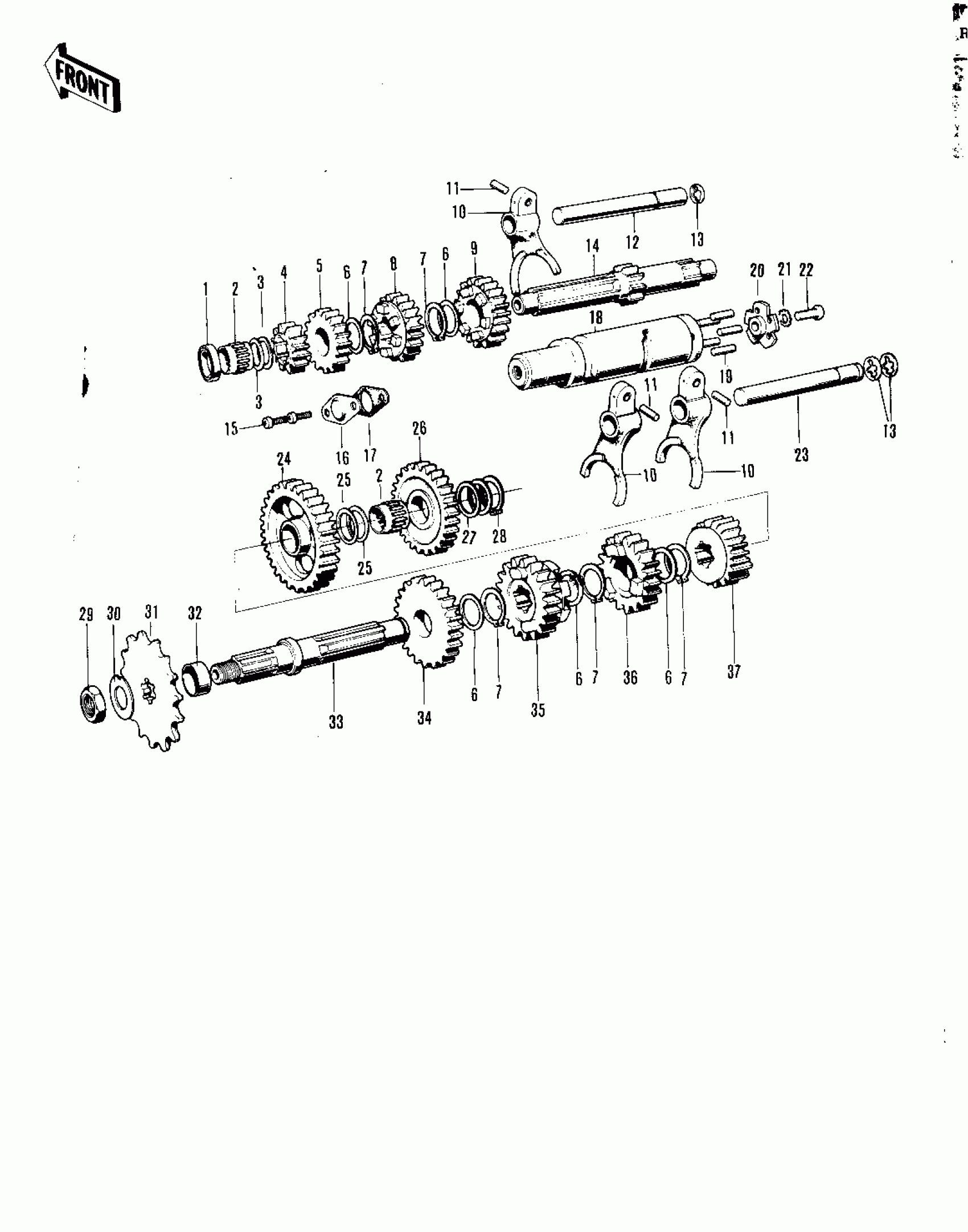

Kawasaki F8-A TRANSMISSION/CHANGE DRUM ('71 F81M) Diagram

#

Description
Price

1

OIL SEAL-CLTH PSH RO

92050-034

Unavailable

2

BEARING-NEEDLE

92046-025

Unavailable

3

WASHER,20.5X30X1,STEEL

92022-112

$8.86

4

2ND GEAR-DRIVE

13130-026

Unavailable

5

4TH GEAR-DRIVE

13134-010

Unavailable

6

WASHER 25MM

92022-076

Unavailable

7

RING-SNAP,24MM

92033-026

$8.79

8

3RD GEAR-DRIVE

13132-023

Unavailable

9

TOP GEAR-DRIVE

13136-033

Unavailable

10

FORK-SELECTOR

13140-052

Unavailable

11

PIN-DOWEL,8X12

610A0812

$3.71

12

ROD-SHIFT

13209-003

Unavailable

13

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

14

SHAFT-DRIVE

13127-025

Unavailable

15

SCREW-PAN-CROS,6X16

220B0616

$2.84

16

PLUG-OIL PUMP-HOLE

92084-004

Unavailable

17

GASKET,NEUTRAL SWITCH

13146-002

$4.35

19

PIN,DOWEL,4X17.8

92042-020

$5.05

20

PLATE-CHANGE DRUM PI

13142-010

Unavailable

21

WASHER LOCK 6MM

464H0600

Unavailable

22

SCREW-CSK-CROS,6X20

221B0620

$2.40

23

ROD-SHIFT

13209-010

Unavailable

24

LOW GEAR-OUTPUT SHAF

13129-042

Unavailable

25

WASHER THRUST

92022-113

Unavailable

26

IDLE GEAR-KICKSTARTE

13073-005

Unavailable

27

WASHER,20.5X30X1,STEEL

92022-112

$8.86

27

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

28

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

29

NUT,18MM

92015-019

$7.22

30

WASHER,LOCK,18MM

92024-067

Unavailable

31

ENGINE SPROCKET 14T

13144-017

Unavailable

32

COLLAR-ENG SPROKET

92027-163

Unavailable

33

SHAFT-OUTPUT

13128-027

Unavailable

3

2ND GEAR-OUTPUT

13131-031

Unavailable

35

4TH GEAR-OUTPUT

13135-014

Unavailable

36

3RD GEAR-OUTPUT

13133-023

Unavailable

37

TOP GEAR-OUTPUT

13137-018

Unavailable
