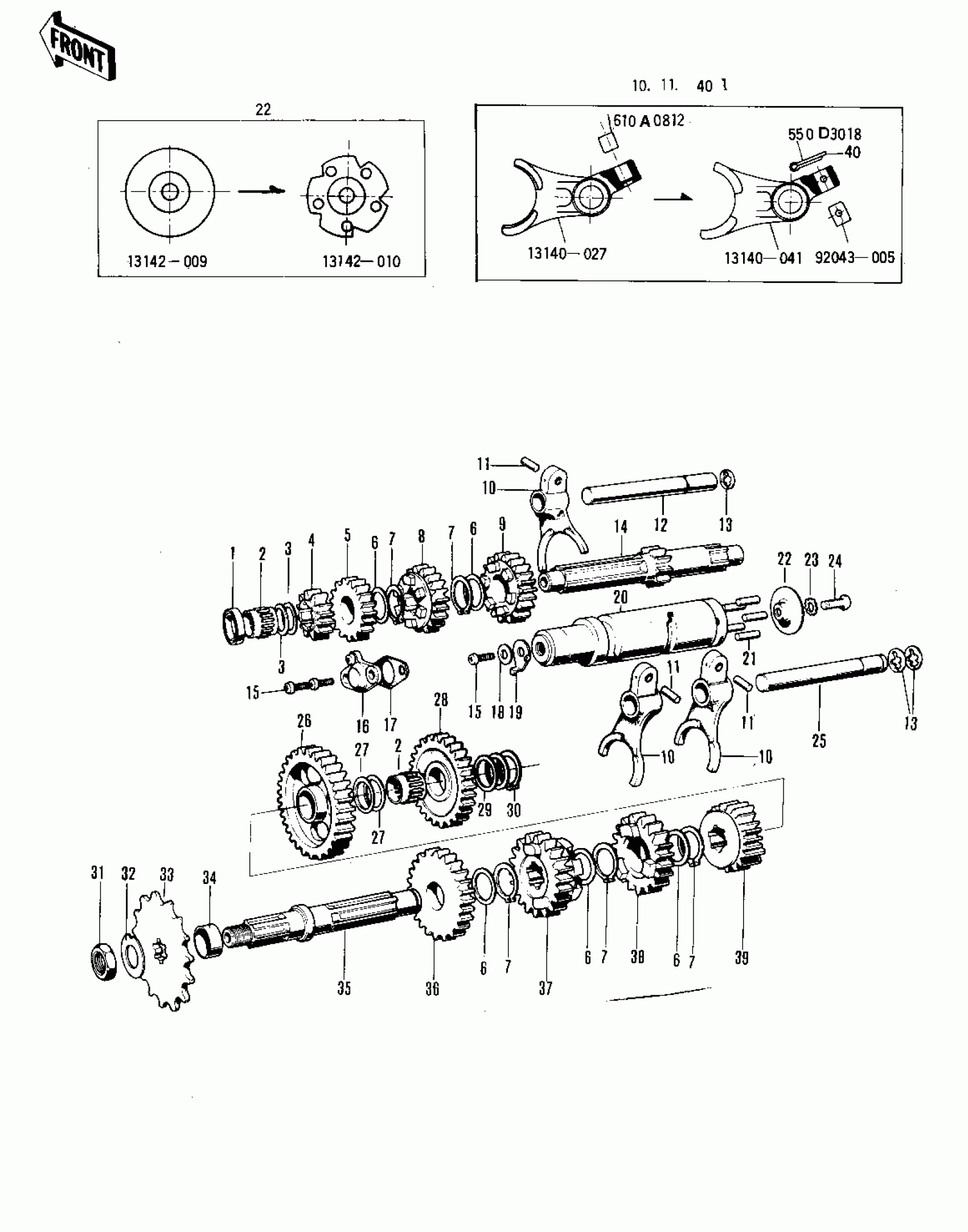

Kawasaki F8-A TRANSMISSION/CHANGE DRUM ('71-'72 F8/F8- Diagram
#
1
OIL SEAL-CLTH PSH RO
92050-034
Unavailable
2
UNAVAILABLE IN PRICE BOOK
92046-023
Unavailable
3
WASHER,20.5X30X1,STEEL
92022-112
$8.86
4
2ND GEAR-DRIVE SHAFT
13130-021
Unavailable
5
4TH GEAR-DRIVE SHAFT
13134-005
Unavailable
6
WASHER 25MM
92022-076
Unavailable
7
RING-SNAP,24MM
92033-026
$8.79
8
3RD GEAR-DRIVE SHAFT
13132-020
Unavailable
9
TOP GEAR,DRIVE SHAFT
13136-047
Unavailable
10
FORK-SELECTOR
13140-052
Unavailable
10
FORK-SELECTOR
13140-052
Unavailable
11
PIN-DOWEL,8X12
610A0812
$3.71
11
PIN SELECT FORK GUIDE
92043-005
Unavailable
12
ROD-SHIFT
13209-003
Unavailable
13
CIRCLIP-TYPE-E,10MM
482J0100
$0.73
14
SHAFT-DRIVE
13127-025
Unavailable
15
SCREW-PAN-CROS,6X16
220B0616
$2.84
16
SWITCH,NEUTRAL
13151-1001
$14.51
17
GASKET,NEUTRAL SWITCH
13146-002
$4.35
18
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
19
ROTOR,TOP & NEUTRAL
21007-1003
$7.62
20
DRUM ASSY-GEAR CHANGE
13239-006
Unavailable
21
PIN,DOWEL,4X15.8
92042-014
$0.43
21
PIN,DOWEL,4X17.8
92042-020
$5.05
22
PLATE-CHANGE DRUM PIN
13142-009
Unavailable
22
PLATE-CHANGE DRUM PI
13142-010
Unavailable
23
WASHER LOCK 6MM
464H0600
Unavailable
24
SCREW PAN HEAD 6X12
220B0612
Unavailable
24
SCREW-CSK-CROS,6X20
221B0620
$2.40
25
ROD-SHIFT
13209-010
Unavailable
26
LOW GEAR-OUTPUT SHAF
13129-042
Unavailable
27
WASHER THRUST
92022-113
Unavailable
28
IDLE GEAR-KICKSTARTE
13073-005
Unavailable
29
WASHER,20.5X30X1,STEEL
92022-112
$8.86
29
WASHER THRUST
92022-114
Unavailable
30
CIRCLIP-TYPE-C,19MM
480J1900
$1.28
31
NUT,18MM
92015-019
$7.22
32
WASHER,LOCK,18MM
92024-067
Unavailable
33
ENG SPROCKET 13T (OP
13144-043
Unavailable
33
ENGINE SPROCKET 15T
13144-025
Unavailable
34
COLLAR-ENG SPROKET
92027-163
Unavailable
35
SHAFT-OUTPUT
13128-027
Unavailable
36
2ND GEAR-OUTPUT SHAF
13131-024
Unavailable
37
4TH GEAR-OUTPUT SHAF
13135-009
Unavailable
38
3RD GEAR-OUTPUT SHAF
13133-019
Unavailable
39
TOP GEAR
14137-014
Unavailable
40
PIN COTTER 3.0X18
550D3018
$0.16
