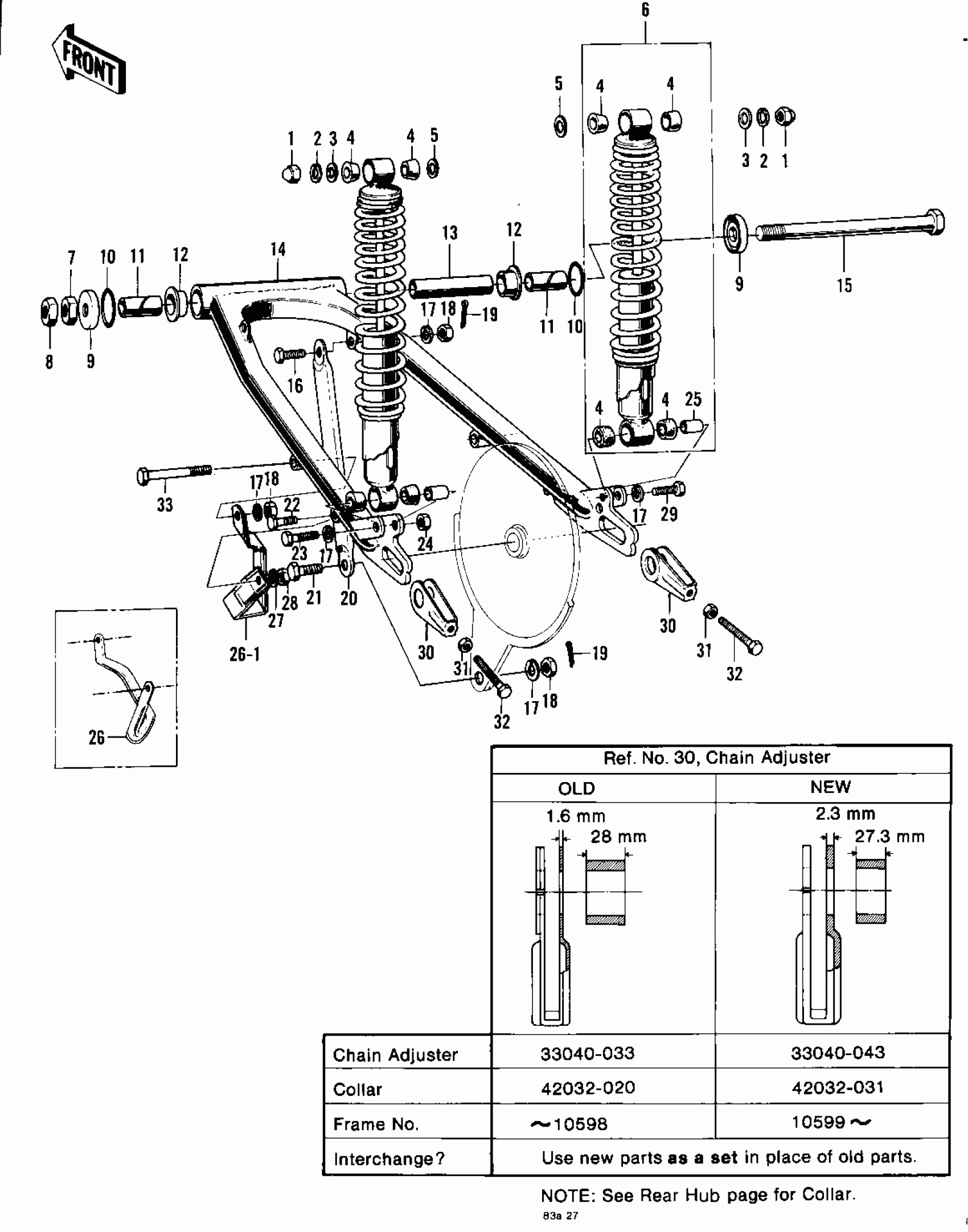

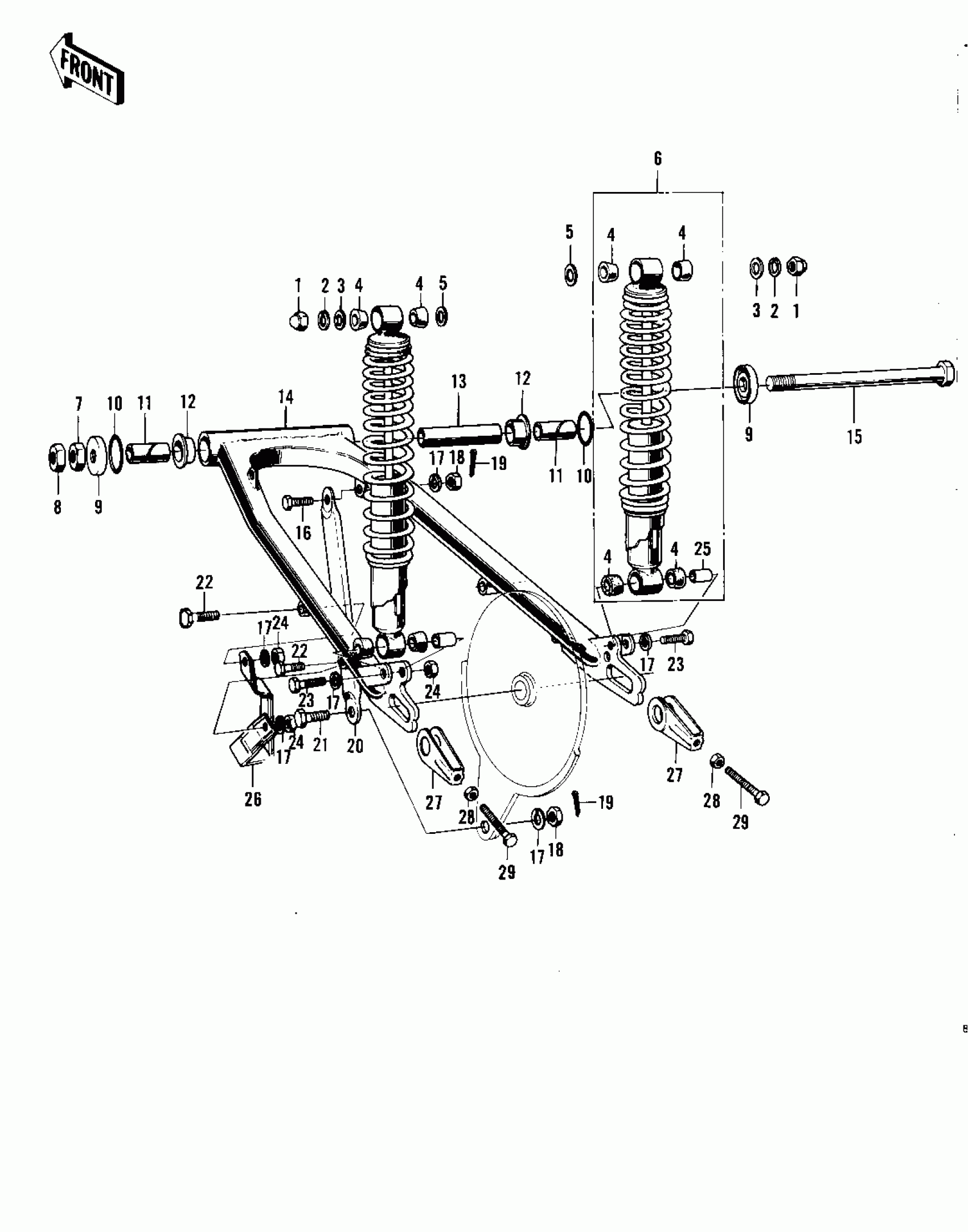

Kawasaki F8-A SWING ARM SHOCK ABSORBERS Diagram
#
Description
Price
1
NUT,CAP,10MM
92020-003
$6.52
2
WASHER SPRING 10MM
461F1000
$0.67
3
WASHER,10.5X26X2.3
92022-044
$3.92
4
BUSH SHOCK ABSORBER
45017-003
$2.73
4
BUSH-SHOCK ABSORBER
45017-005
Unavailable
5
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
6
SHOCK ABSBR RR
45014-060
Unavailable
7
NUT,14MM
314B1400
Unavailable
7
NUT,14MM
314B1400
Unavailable
8
NUT-HEX-FINE,14MM
315B1400
$2.03
9
CAP-SWING ARM
33035-004
Unavailable
10
"0" RING,30MM
671B2530
$5.05
11
SLEEVE-SWING ARM,SHRT
33034-013
Unavailable
12
BUSHING-SWING ARM
33033-009
Unavailable
12
BUSHING-SWING ARM
33033-009
Unavailable
13
SLEEVE-SWING ARM,LONG
33034-012
Unavailable
14
SWINGING ARM
33001-036
$95.50
15
SHAFT-SWING ARM PIVO
33032-025
$16.25
16
BOLT,10X25
92003-017
Unavailable
17
WASHER SPRING 10MM
461F1000
$0.67
18
NUT-HEX-FINE,10MM
314B1000
$0.67
18
NUT-HEX-FINE,10MM
314B1000
$0.67
19
PIN COTTER 2.0X15
550D2015
$1.04
20
TORQUE LINK REAR BRK
43007-018
Unavailable
21
BOLT,10X32
92003-003
$6.22
22
BOLT,HEX HEAD,10X50
92001-1254
$4.38
22
BOLT,HEX HEAD,10X50
92001-1254
$4.38
23
BOLT HEX HEAD 10X35
113N1035
$9.14
24
NUT-HEX-FINE,10MM
315B1000
$0.58
25
COLLAR,SHOCKABSORBER
45016-003
$15.92
26
GUARD-CHAIN
55037-001
$12.76
27
ADJUSTER-CHAIN
33040-043
$28.47
28
NUT 8MM
312B0800
$0.58
29
BOLT,8X50
92001-1399
$9.48
29
BOLT,8X50
92001-1399
$9.48
