Description

Price

1

SEAT ASSY-DUAL

53002-033

Unavailable

1-1

COVER-DUAL SEAT

53003-003

Unavailable

2

SPRING,HOOK

53012-013

Unavailable

2

SPRING,HOOK

53012-013

Unavailable

3

HOOK

53008-008

$3.11

4

COTTER PIN

92041-003

$5.72

5

PIN DUAL SEAT PIVOT

53011-001

$5.59

6

HINGE

53009-015

Unavailable

7

HINGE

53009-016

Unavailable

8

WASHER PLAIN 6MM

411B0600

$2.84

9

WASHER SPRING 6MM

461F0600

$0.69

10

BOLT-UPSET 6X14

112B0614

Unavailable

11

DAMPER,DUAL SEAT

92075-023

$4.92

12

PIN,6X48

53011-002

$5.96

13

BAND-SEAT

92072-028

Unavailable

14

BOLT,6X10

112G0610

$0.58

15

CASE-CHAIN

36014-030-21

Unavailable

16

SCREW-PAN-CROS,6X14

220B0614

$1.48

17

WASHER,6.5X20X1.6

92022-125

$1.40

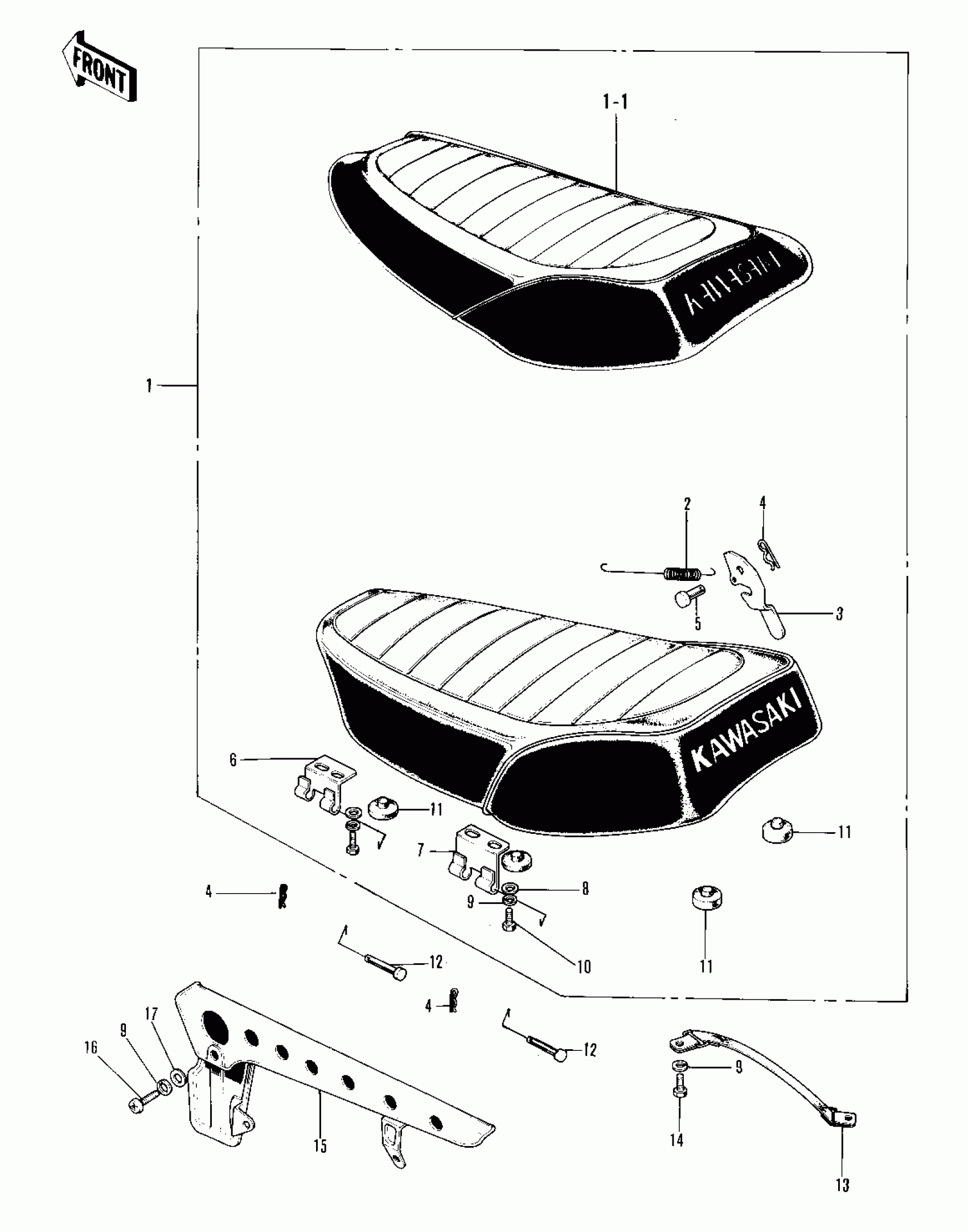

Kawasaki F8-A SEAT/CHAIN COVER Diagram

SEAT ASSY-DUAL

COVER-DUAL SEAT

SPRING,HOOK

SPRING,HOOK

HOOK

COTTER PIN

PIN DUAL SEAT PIVOT

HINGE

HINGE

WASHER PLAIN 6MM

WASHER SPRING 6MM

BOLT-UPSET 6X14

DAMPER,DUAL SEAT

PIN,6X48

BAND-SEAT

BOLT,6X10

CASE-CHAIN

SCREW-PAN-CROS,6X14

WASHER,6.5X20X1.6
