Description

Price

1

SPEEDOMETER ASSY,MPH

25001-045

$220.33

2

TACHOMETER ASSY

25015-009

$100.86

3

SOCKET-SPEEDOMETER

25011-015

$21.78

4

SOCKET-TACHOMETER

25011-016

Unavailable

5

BULB,6V 3W,CLEAR

92069-053

$4.18

6

BULB,6V 1.7W

92069-024

$5.31

7

COVER-SPEEDOMETER

25012-003

$23.05

8

BRACKET SPEEDOMETER

25008-009

Unavailable

9

CLAMP CABLE

25022-002

$5.51

10

DAMPER RUBBER

92075-065

Unavailable

11

DAMPER RUBBER

92075-066

Unavailable

12

DAMPER

92075-035

$4.60

13

WASHER,5.5X20X1.2

92022-104

$4.31

14

WASHER PLAIN 8MM

411B0800

$0.93

15

WASHER SPRING 5MM

461F0500

$0.69

16

NUT-HEX

311B0500

$0.47

17

DAMPER

92075-024

$4.39

18

WASHER,6.5X20X1.6

92022-125

$1.40

19

WASHER SPRING 6MM

461F0600

$0.69

20

NUT 6MM

311B0600

$0.93

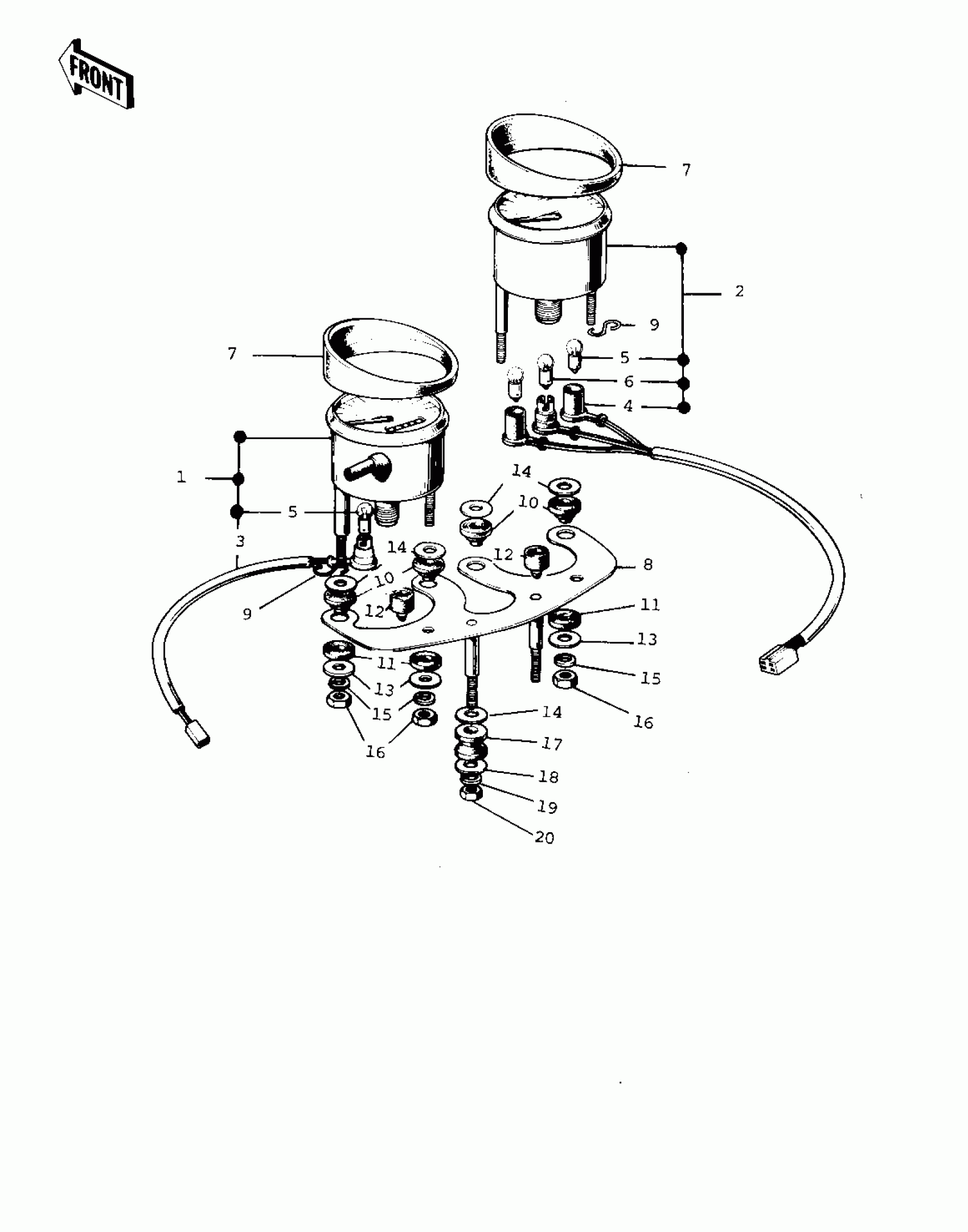

Kawasaki F8-A METERS Diagram

SPEEDOMETER ASSY,MPH

TACHOMETER ASSY

SOCKET-SPEEDOMETER

SOCKET-TACHOMETER

BULB,6V 3W,CLEAR

BULB,6V 1.7W

COVER-SPEEDOMETER

BRACKET SPEEDOMETER

CLAMP CABLE

DAMPER RUBBER

DAMPER RUBBER

DAMPER

WASHER,5.5X20X1.2

WASHER PLAIN 8MM

WASHER SPRING 5MM

NUT-HEX

DAMPER

WASHER,6.5X20X1.6

WASHER SPRING 6MM

NUT 6MM
