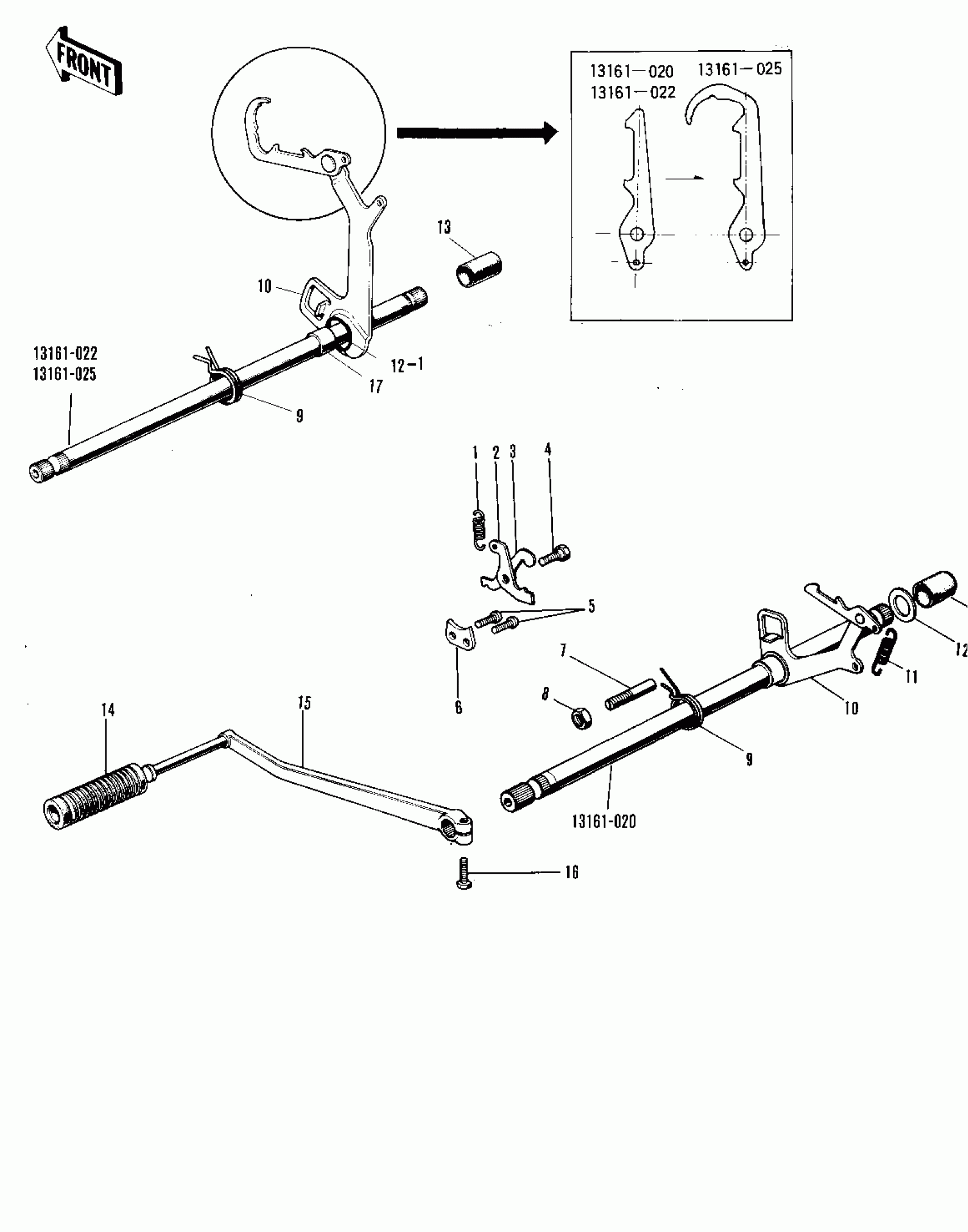

Kawasaki F8-A GEAR CHANGE MECHANISM ('71-'72 F8/F8-A) Diagram

#

Description
Price

1

SPRING-COIL

92081-091

Unavailable

2

LEVER-CHANGE DRUM,B

13168-017

Unavailable

3

LEVER-CHANGE DRUM,A

13168-016

Unavailable

4

SCREW,6MM

92011-023

Unavailable

5

SCREW-PAN-CROS,6X14

220B0614

$1.48

6

PLATE CHNG DRUM PSTN

13169-002

Unavailable

7

PIN CHANGE PEDAL SPRG

92043-057

Unavailable

8

NUT 8MM

312B0800

$0.58

9

SPRING,TENSION

92081-1129

$9.43

10

LEVER ASSY GEAR CHNG

13161-028

Unavailable

10

LEVER ASSY GEAR CHNG

13161-025

Unavailable

10

LEVER ASSY GEAR CHNG

13161-025

Unavailable

11

SPRING,CHANGE LEVER

92144-1720

$4.74

12

WASHER-PLAIN

92022-164

$0.76

12-1

SPACER

92026-068

Unavailable

13

RUBBER CAP

13080-004

Unavailable

14

DAMPER,CHANGE PEDAL

13157-004

Unavailable

15

PEDAL GEAR CHANGE

13156-032

Unavailable

16

BOLT-UPSET

112G0618

$1.01

17

COLLAR,12X18X11.5

92027-121

$9.23
