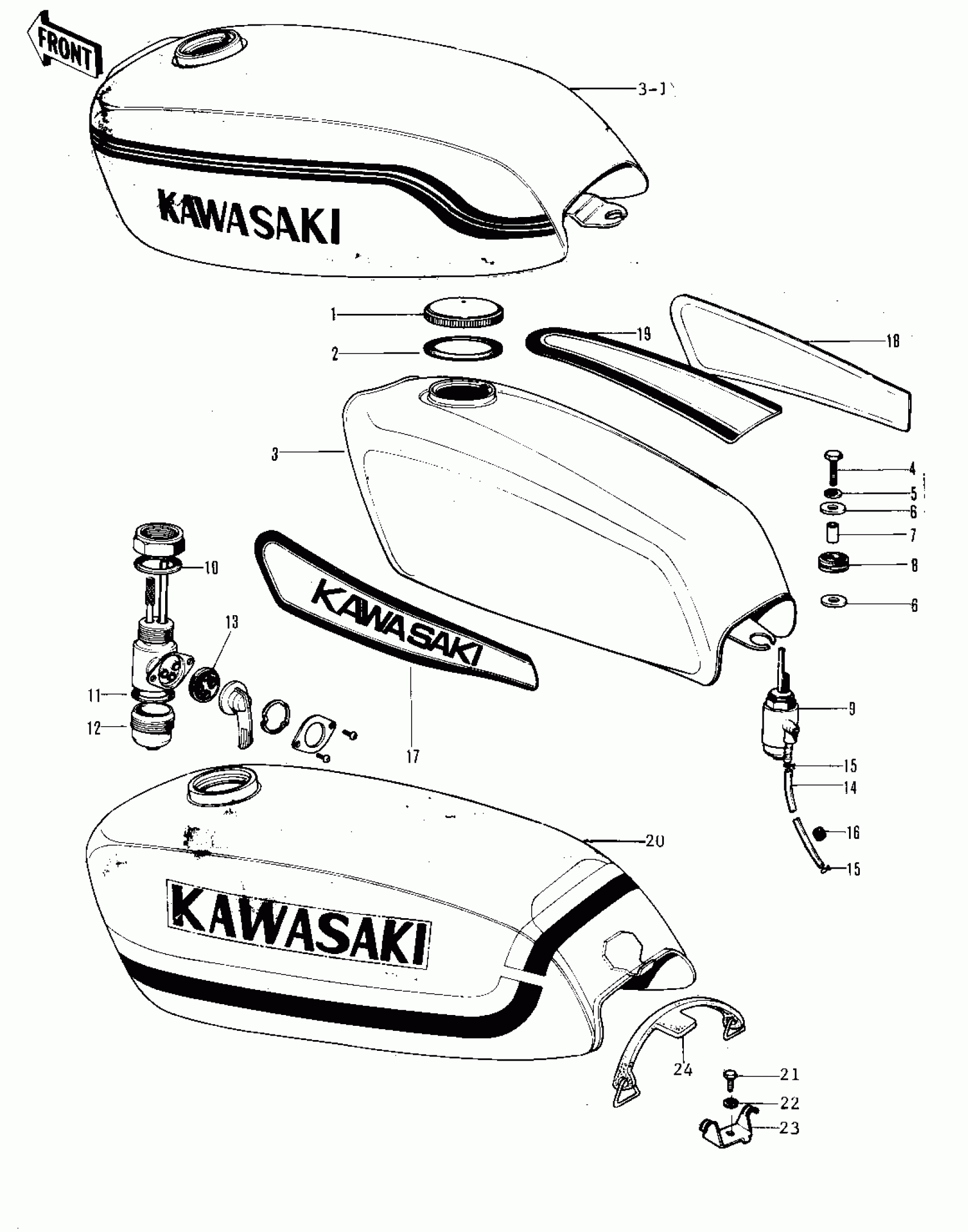

Kawasaki F8-A FUEL TANK ('71-'72 F8/F8-A) Diagram
#
Description
Price
1
CAP FUEL TANK
51049-008
Unavailable
2
GASKET-FUEL TANK CAP
51059-007
$3.90
3
TANK-FUEL,ORANGE
51001-055-55
Unavailable
3-1
FUEL TANK-B.ORANGE
51001-055-72
Unavailable
4
BOLT,FLANGED,8X35
92001-1577
Unavailable
5
WASHER SPRING 8MM
461F0800
$0.40
6
WASHER,8X26X2.3
92022-1564
$4.31
7
COLLAR,8.8X12X17
92027-034
$7.24
8
DAMPER RUBB TANK REAR
92075-030
Unavailable
9
COCK ASSY,FUEL
51023-044
Unavailable
10
GASKET FUEL COCK JONT
51032-001
$7.48
11
GASKET FUEL COCK CUP
51037-007
$3.71
12
CUP FUEL COCK
51036-003
$5.03
13
GASKET FUEL COCK LEV
92065-019
$3.74
14
PIPE-OIL
92059-072
$38.33
15
CLAMP,TUBE
92037-010
$3.92
16
GROMMET,PIPE
92071-038
Unavailable
17
EMBLEM-L.H,PURPLE
56013-031-61
$29.83
18
EMBLEM-R.H,PURPLE
56014-025-61
$23.12
19
EMBLEM-CENTER,PURPLE
56027-038-61
$14.55
20~24
TANK,FUEL,ORANGE
51002-010-72
$334.60
21
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
22
WASHER SPRING 8MM
461F0800
$0.40
23
BRACKET,FUEL TANK
32052-046
Unavailable
24
BAND,FUEL TANK
92072-049
$7.58
