Description

Price

1~10

PANEL-ASY,FR BRK

41035-032

$117.34

2

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

3

SHOE,BRAKE

42019-011

$37.39

4

SPRING,BRAKE SHOE

42020-004

$8.51

5

OIL SEAL F BRK PANEL

92050-010

$20.98

6

BOLT-UPSET,6X40

112G0640

$2.22

7

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

8

NUT 6MM

311B0600

$0.93

9

LEVER,REAR BRAKE CAM

42029-037

Unavailable

10

SEAL,BRAKE CAM

41051-001

$4.26

11~15

DRUM-ASSY,FR BRK,BUFF

41034-048-80

$259.52

11~15

DRUM-ASSY,FR BRK

41034-022

$181.89

12

BEARING BALL #6202Z

601B6202Z

Unavailable

13

SPACER FR HUB BEARING

41039-004

$9.58

14

BEARING-BALL,#6202C3

601B6202

$8.64

15

OIL SEAL RR BRK DRUM

92050-008

Unavailable

16

COLLAR FRONT HUB R.H

41069-004

$6.31

17

AXLE-FRONT

41068-029

$26.75

18

TORQUE LINK-FRNT BRK

43007-022

Unavailable

19

WASHER-LOCK

92088-012

Unavailable

20

BOLT-HEA HEAD,8X20

92001-086

Unavailable

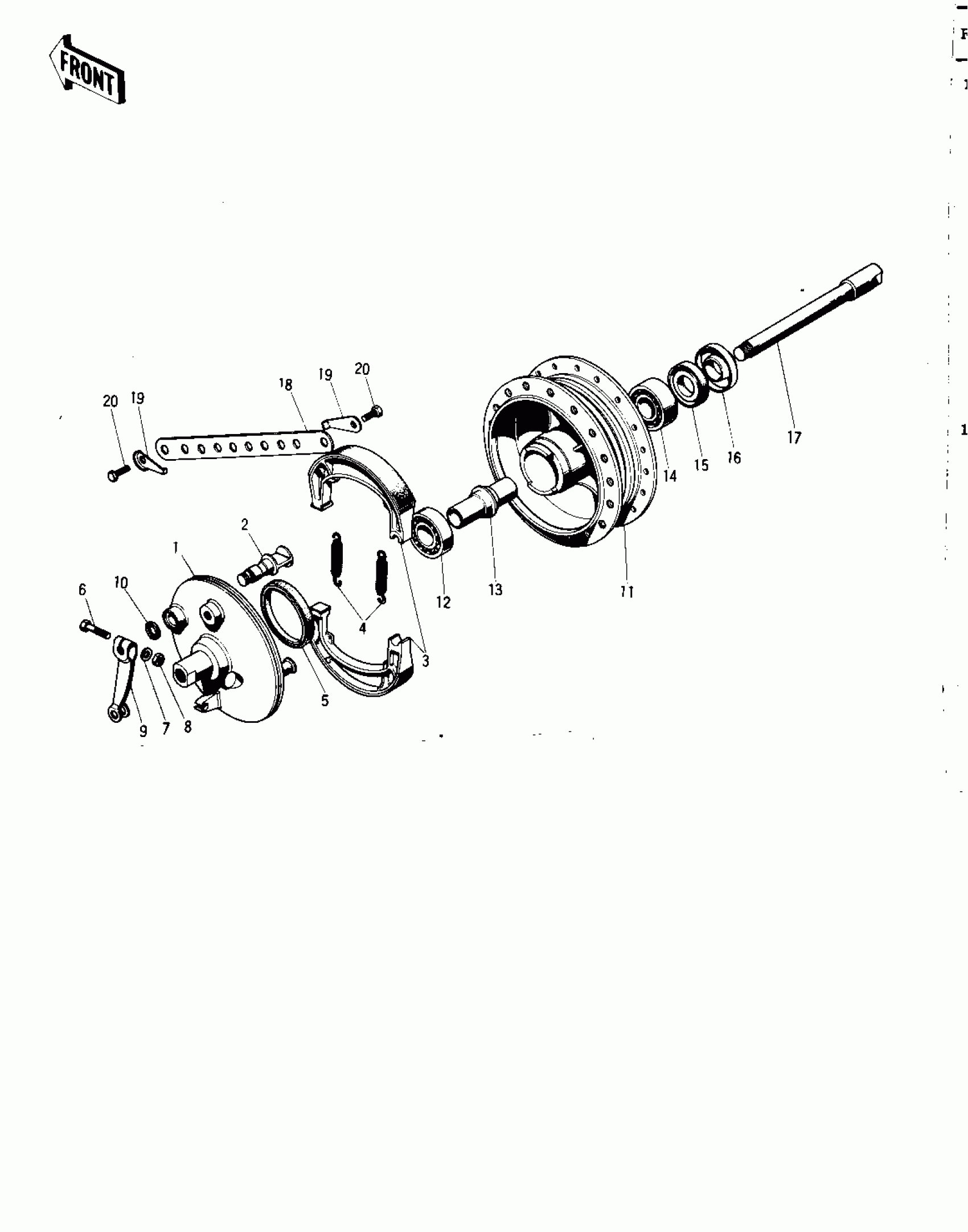

Kawasaki F8-A FRONT HUB/BRAKE ('71 F81M) Diagram

PANEL-ASY,FR BRK

CAM SHAFT,REAR BRAKE

SHOE,BRAKE

SPRING,BRAKE SHOE

OIL SEAL F BRK PANEL

BOLT-UPSET,6X40

WASHER-PLAIN-SMALL,6MM

NUT 6MM

LEVER,REAR BRAKE CAM

SEAL,BRAKE CAM

DRUM-ASSY,FR BRK,BUFF

DRUM-ASSY,FR BRK

BEARING BALL #6202Z

SPACER FR HUB BEARING

BEARING-BALL,#6202C3

OIL SEAL RR BRK DRUM

COLLAR FRONT HUB R.H

AXLE-FRONT

TORQUE LINK-FRNT BRK

WASHER-LOCK

BOLT-HEA HEAD,8X20
