Description

Price

1

FRAME

32002-040

Unavailable

2

NUT STEERING STEM LCK

92090-006

$15.04

3

CAP STEERING STEM

46098-005

Unavailable

4

CONE STERNG BERG UPP

92047-003

Unavailable

5

BALL-STEEL,1/4

600A0800

$0.62

6

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

7

DAMPER RUBB FUEL TANK

92075-050

$6.61

8

MAT FUEL TANK

51067-002

Unavailable

9

PLATE-ENGINE MOUNT

32030-020

$5.45

10

BOLT,8X20

115G0820

$5.14

11

WASHER SPRING 8MM

461F0800

$0.40

12

BOLT-HEX HEAD,12X163

113B12163A

$9.07

13

BOLT, HEX HEAD,12X151

113B12151A

$7.29

14

BOLT HEX HEAD 12X254

113B12254A

$12.29

15

STUD

92006-002

Unavailable

16

NUT-HEX-FINE

314B1200

$2.87

17

WASHER-SPRING,12MM

461F1200

$0.96

18

GUARD-ENGINE

55011-013

$30.02

19

WASHER,6.5X20X1.6

92022-125

$1.40

20

BOLT-UPSET,6X12

112G0612

$1.45

21

WASHER SPRING 6MM

461F0600

$0.69

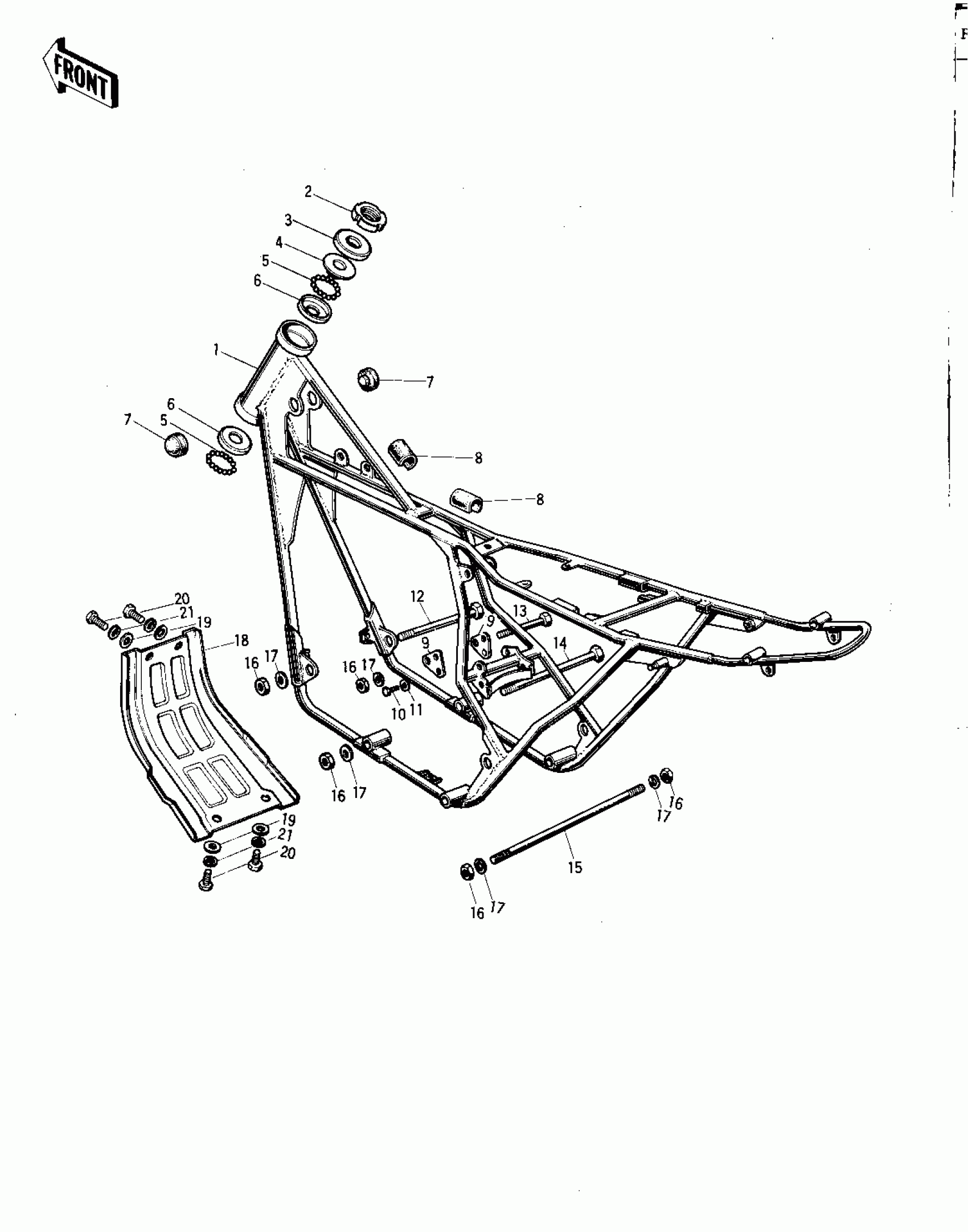

Kawasaki F8-A FRAME/FRAME FITTINGS ('71 F81M) Diagram

FRAME

NUT STEERING STEM LCK

CAP STEERING STEM

CONE STERNG BERG UPP

BALL-STEEL,1/4

RACE,STEERING STEM BEARING,LWR

DAMPER RUBB FUEL TANK

MAT FUEL TANK

PLATE-ENGINE MOUNT

BOLT,8X20

WASHER SPRING 8MM

BOLT-HEX HEAD,12X163

BOLT, HEX HEAD,12X151

BOLT HEX HEAD 12X254

STUD

NUT-HEX-FINE

WASHER-SPRING,12MM

GUARD-ENGINE

WASHER,6.5X20X1.6

BOLT-UPSET,6X12

WASHER SPRING 6MM
