Description

Price

1

BAR ASSY,FOOTREST

34002-051

$51.48

2

BRACKET-FOOTREST BAR

34007-009

Unavailable

3

NUT-LOCK,12MM

92019-009

$7.29

4

BOLT-UPSET

112G0618

$1.01

5

WASHER SPRING 6MM

461F0600

$0.69

6

WASHER,6.5X20X1.6

92022-125

$1.40

7

COLLAR

92027-103

$3.58

8

RUBBER-FOOTREST

92076-023

Unavailable

9

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

10

SPRING FOOTREST PEG

34006-002

Unavailable

11

WASHER FOLDING PEG

92022-049

Unavailable

12

PEDAL-BRAKE,BLACK

43001-036-10

$38.26

13

PIN-COTTER,3.0X30

550D3030

$2.51

14

WASHER BRAKE PEDAL

92022-085

$3.92

15

SPRING-BRAKE PEDAL

43005-013

$9.17

16

PIN COTTER 2.0X15

550D2015

$1.04

17

PIN R BRK CABLE JOINT

92043-034

Unavailable

18

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

19

STAND-PORTABLE

34033-011

$49.28

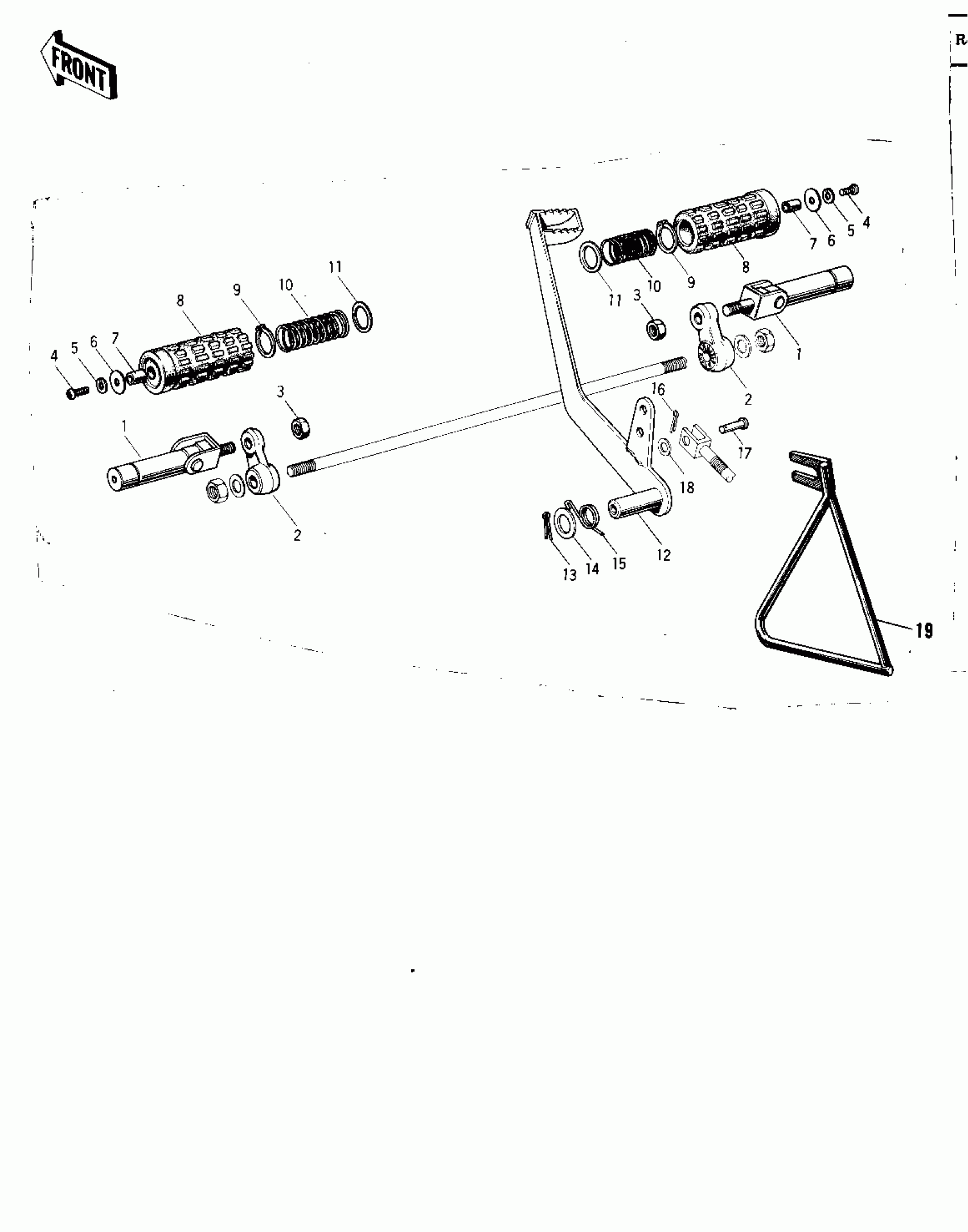

Kawasaki F8-A FOOTRESTS/STAND/BRAKE PEDAL ('71 F81M) Diagram

BAR ASSY,FOOTREST

BRACKET-FOOTREST BAR

NUT-LOCK,12MM

BOLT-UPSET

WASHER SPRING 6MM

WASHER,6.5X20X1.6

COLLAR

RUBBER-FOOTREST

CIRCLIP-TYPE-C,16MM

SPRING FOOTREST PEG

WASHER FOLDING PEG

PEDAL-BRAKE,BLACK

PIN-COTTER,3.0X30

WASHER BRAKE PEDAL

SPRING-BRAKE PEDAL

PIN COTTER 2.0X15

PIN R BRK CABLE JOINT

WASHER-PLAIN-SMALL,6MM

STAND-PORTABLE
