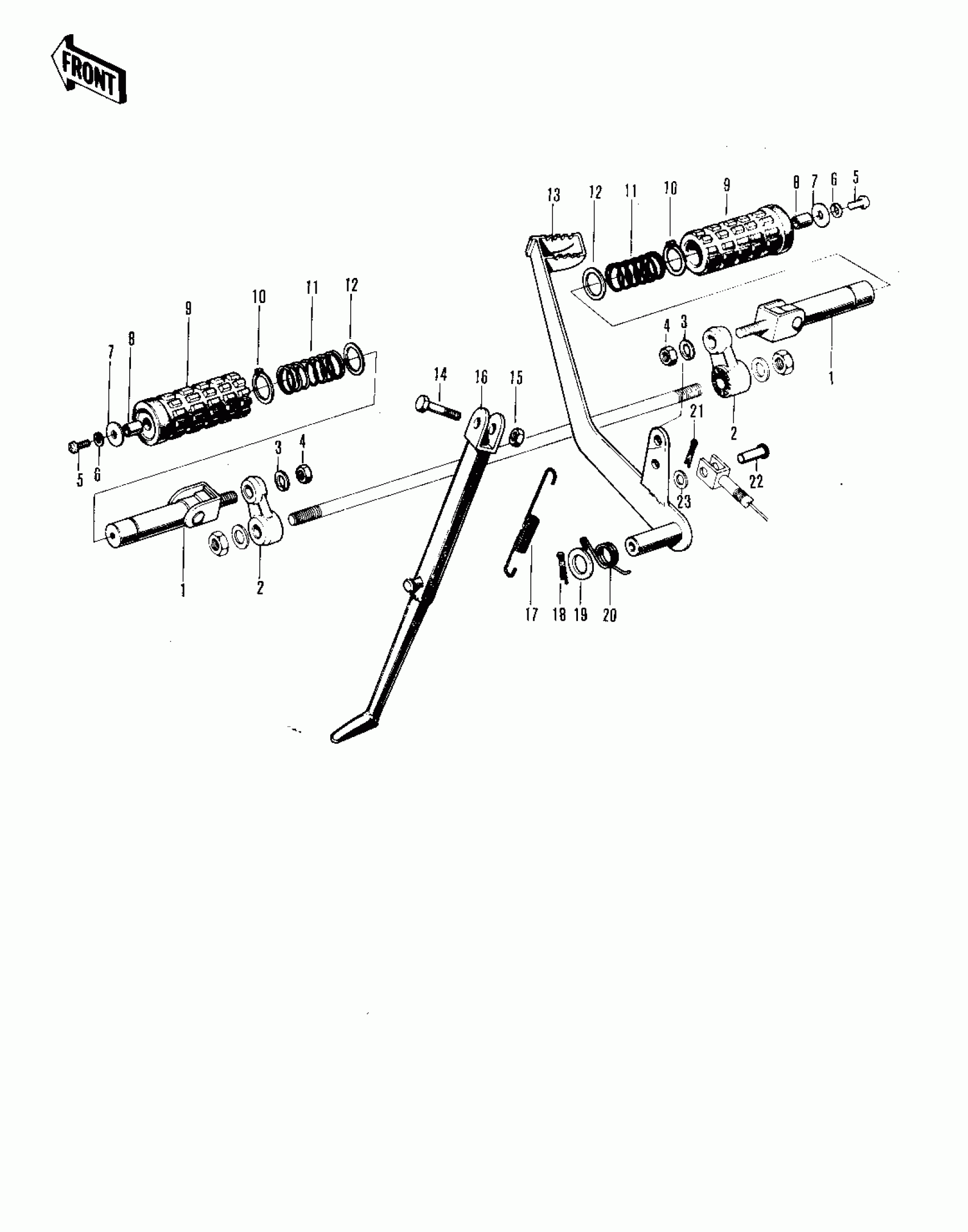

Kawasaki F8-A FOOTRESTS/STAND/BRAKE PEDAL ('71-'72 F8/ Diagram
#
Description
Price
1
BAR ASSY,FOOTREST
34002-051
$51.48
1
BAR ASSY,FOOTREST
34002-051
$51.48
2
BAR ASSY,FOOTREST
34002-051
$51.48
2
BRACKET-FOOTREST BAR
34007-009
Unavailable
3
WASHER SPRING 10MM
461F1000
$0.67
4
NUT-HEX-FINE,10MM
315B1000
$0.58
4
NUT-LOCK,12MM
92019-009
$7.29
5
BOLT-UPSET
112G0618
$1.01
6
WASHER SPRING 6MM
461F0600
$0.69
7
WASHER,6.5X20X1.6
92022-125
$1.40
8
COLLAR
92027-103
$3.58
9
RUBBER-FOOTREST
92076-023
Unavailable
10
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
11
SPRING FOOTREST PEG
34006-002
Unavailable
12
WASHER FOLDING PEG
92022-049
Unavailable
13
PEDAL-BRAKE,BLACK
43001-036-10
$38.26
14
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
15
NUT-HEX-FINE,10MM
315B1000
$0.58
16
STAND-SIDE
34024-025
$60.02
17
SPRING MAIN STAND
34023-005
$10.92
18
PIN-COTTER,3.0X30
550D3030
$2.51
19
WASHER BRAKE PEDAL
92022-085
$3.92
20
SPRING-BRAKE PEDAL
43005-013
$9.17
21
PIN COTTER 2.0X15
550D2015
$1.04
2
PIN R BRK CABLE JOINT
92043-034
Unavailable
23
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
