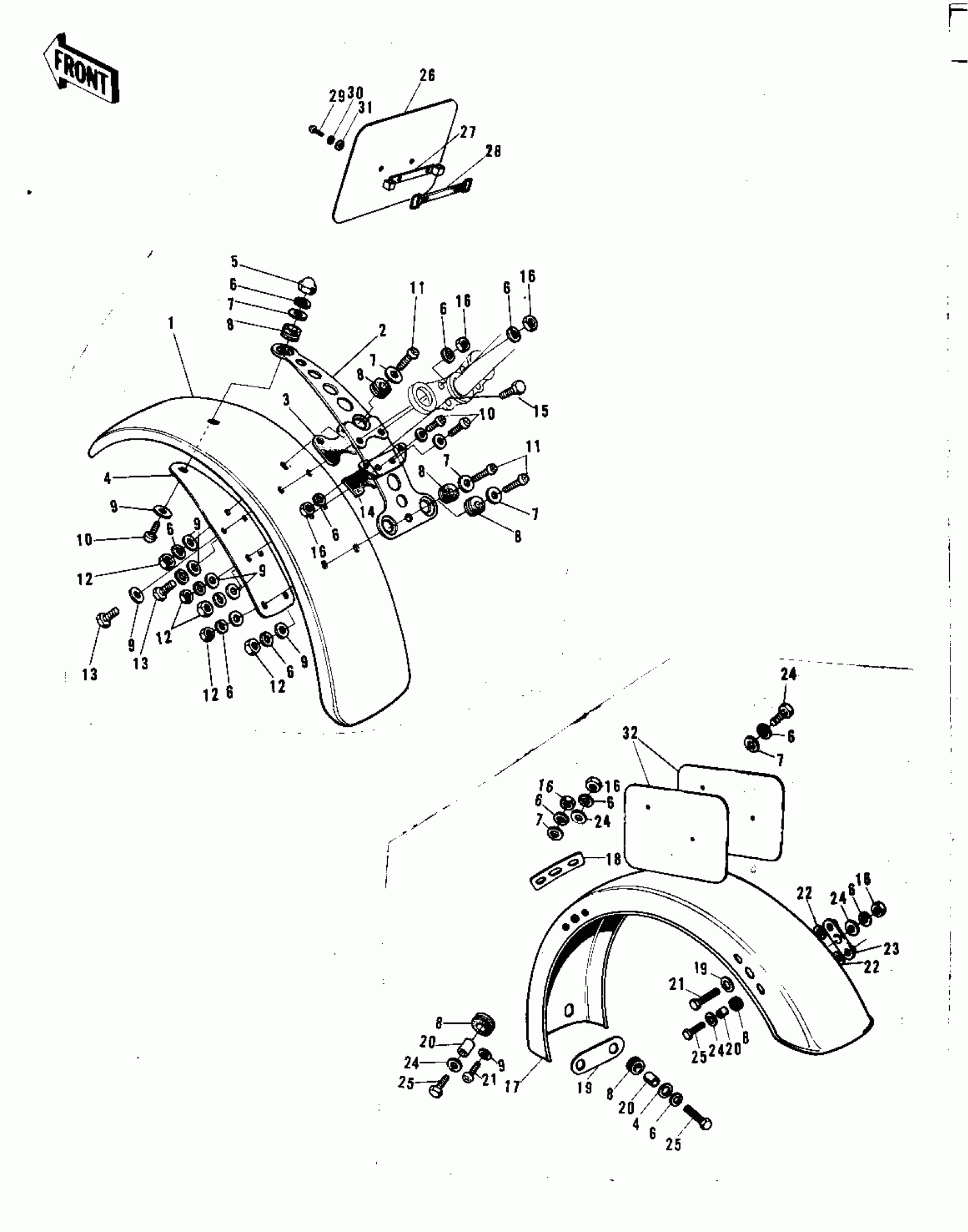

Kawasaki F8-A FENDERS/NUMBER PLATES Diagram
#
Description
Price
1
FENDER-FR,GREEN
35004-048-70
Unavailable
2
BRACKET-FRONT FENDER
35012-011
Unavailable
3
DAMPER RUBBER-F.FEND
35007-002
Unavailable
4
PLATE-FRNT FENDER FI
35013-009
Unavailable
5
NUT,6MM
92015-009
Unavailable
6
WASHER SPRING 6MM
461F0600
$0.69
7
WASHER,6.5X20X1.6
92022-125
$1.40
8
DAMPER RUBBER
92075-051
$3.92
9
WASHER PLAIN
92022-024
$3.65
10
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
11
SCREW-PAN-CROS,6X20
220E0620
$2.92
12
NUT 6MM
312B0600
$0.72
13
BOLT-HEX HEAD,6X42
92003-063
Unavailable
14
DAMPER RUBBER-FR FND
35007-003
Unavailable
15
BOLT-UPSET
112G0625
$3.62
15
BOLT-UPSET
112G0625
Unavailable
16
NUT 6MM
311B0600
$0.93
17
FENDER-RR
35022-049
$112.03
18
BRACE-RR FENDER,SIDE
35034-011
Unavailable
19
BRACE-RR FENDER,FRON
35034-013
Unavailable
20
COLLAR
92027-103
$3.58
21
SCREW-PAN-CROS,6X14
220B0614
$1.48
22
DAMPER RUBBER
92075-097
Unavailable
23
WASHER-PLAIN
92022-200
Unavailable
24
WASHER PLAIN 6MM
411B0600
$2.84
25
BOLT-UPSET
112G0618
$1.01
25
BOLT-UPSET
112G0618
Unavailable
26
PLATE-FRONT NUMBER
58029-013
Unavailable
27
BRACKET FRNT NO PLATE
58030-003
Unavailable
28
BAND,L=142.1
92072-006
$12.76
29
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
30
WASHER SPRING 8MM
461F0800
$0.40
31
WASHER,8X26X2.3
92022-1564
$4.31
32
PLATE-REAR NUMBER
58029-015
Unavailable
33
SCREW PAN HEAD 6X12
220B0612
Unavailable
