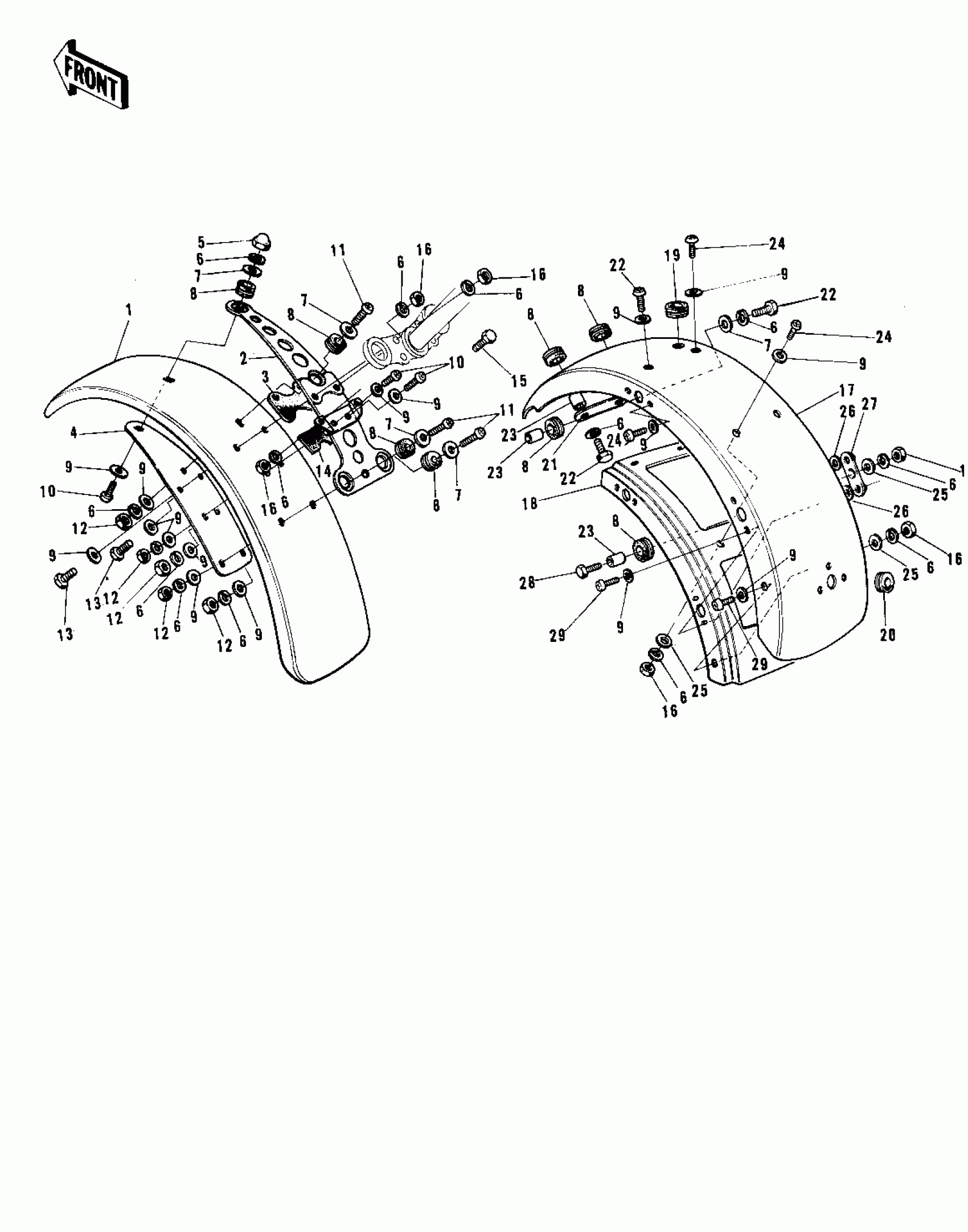

Kawasaki F8-A FENDERS (F8-A) Diagram
#
Description
Price
1
FENDER-FR,B.ORANGE
35004-048-72
Unavailable
2
BRACKET-FRONT FENDER
35012-011
Unavailable
3
DAMPER RUBBER-F.FEND
35007-002
Unavailable
4
PLATE-FRNT FENDER FI
35013-009
Unavailable
5
NUT,6MM
92015-009
Unavailable
6
WASHER SPRING 6MM
461F0600
$0.69
7
WASHER,6.5X20X1.6
92022-125
$1.40
8
DAMPER RUBBER
92075-051
$3.92
9
WASHER PLAIN
92022-024
$3.65
10
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
11
SCREW-PAN-CROS,6X20
220E0620
$2.92
12
NUT 6MM
312B0600
$0.72
13
BOLT-HEX HEAD,6X42
92003-063
Unavailable
14
DAMPER RUBBER-FR FND
35007-003
Unavailable
15
BOLT-UPSET
112G0625
$3.62
15
BOLT-UPSET
112G0625
Unavailable
16
NUT 6MM
311B0600
$0.93
17
FENDER-RR,B.ORANGE
35022-046-72
$140.57
18
BRACE-REAR FENDER
35034-010
Unavailable
19
GROMMET HARNESS 10MM
92071-010
Unavailable
20
GROMMET,10MM
92071-019
$3.89
21
BRACE-RR FENDER,FRON
35034-013
Unavailable
22
BOLT-UPSET,6X20
112G0620
$2.12
22
BOLT-UPSET,6X20
112G0620
Unavailable
23
COLLAR
92027-103
$3.58
24
SCREW-PAN-CROS,6X14
220B0614
$1.48
25
WASHER PLAIN 6MM
411B0600
$2.84
26
DAMPER RUBBER
92075-097
Unavailable
27
WASHER-PLAIN
92022-200
Unavailable
28
BOLT HEX HEAD 6X18
110N0618
Unavailable
29
SCREW PAN HEAD 6X14
220E0614
$3.19
