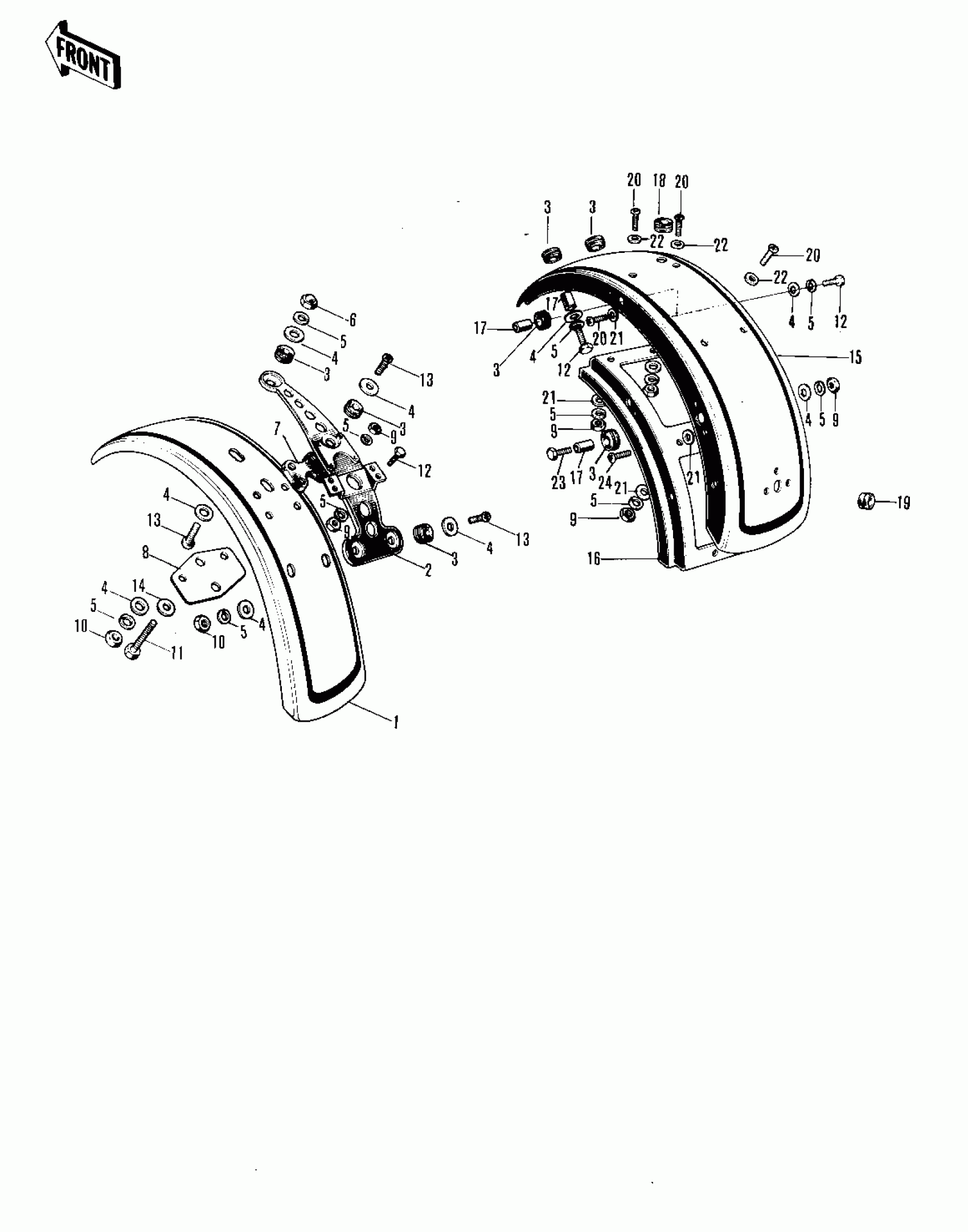

Kawasaki F8-A FENDERS (F8) Diagram

#

Description
Price

1

FENDER-FRONT,ORANGE

35004-048-55

$67.47

2

BRACKET-FRONT FENDER

35012-011

Unavailable

3

DAMPER RUBBER

92075-051

$3.92

4

WASHER,6.5X20X1.6

92022-125

$1.40

5

WASHER SPRING 6MM

461F0600

$0.69

6

NUT,6MM

92015-009

Unavailable

7

DAMPER RUBBER-F.FEND

35007-002

Unavailable

8

PLATE-FRNT FENDER FI

35013-009

Unavailable

9

NUT 6MM

311B0600

$0.93

10

NUT 6MM

312B0600

$0.72

11

BOLT-HEX HEAD,6X42

92003-063

Unavailable

12

BOLT-UPSET

112G0618

$1.01

13

SCREW-PAN HEAD,6X18

220E0618

$3.19

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

15

FENDER-RR,B.ORANGE

35022-046-72

$140.57

16

BRACE-REAR FENDER

35034-010

Unavailable

17

COLLAR

92027-103

$3.58

18

GROMMET HARNESS 10MM

92071-010

Unavailable

19

GROMMET,10MM

92071-019

$3.89

20

SCREW-PAN-CROS,6X14

220B0614

$1.48

21

WASHER PLAIN 6MM

411B0600

$2.84

22

WASHER PLAIN

92022-024

$3.65

23

BOLT HEX HEAD 6X18

110N0618

Unavailable

24

SCREW PAN HEAD 6X14

220E0614

$3.19
