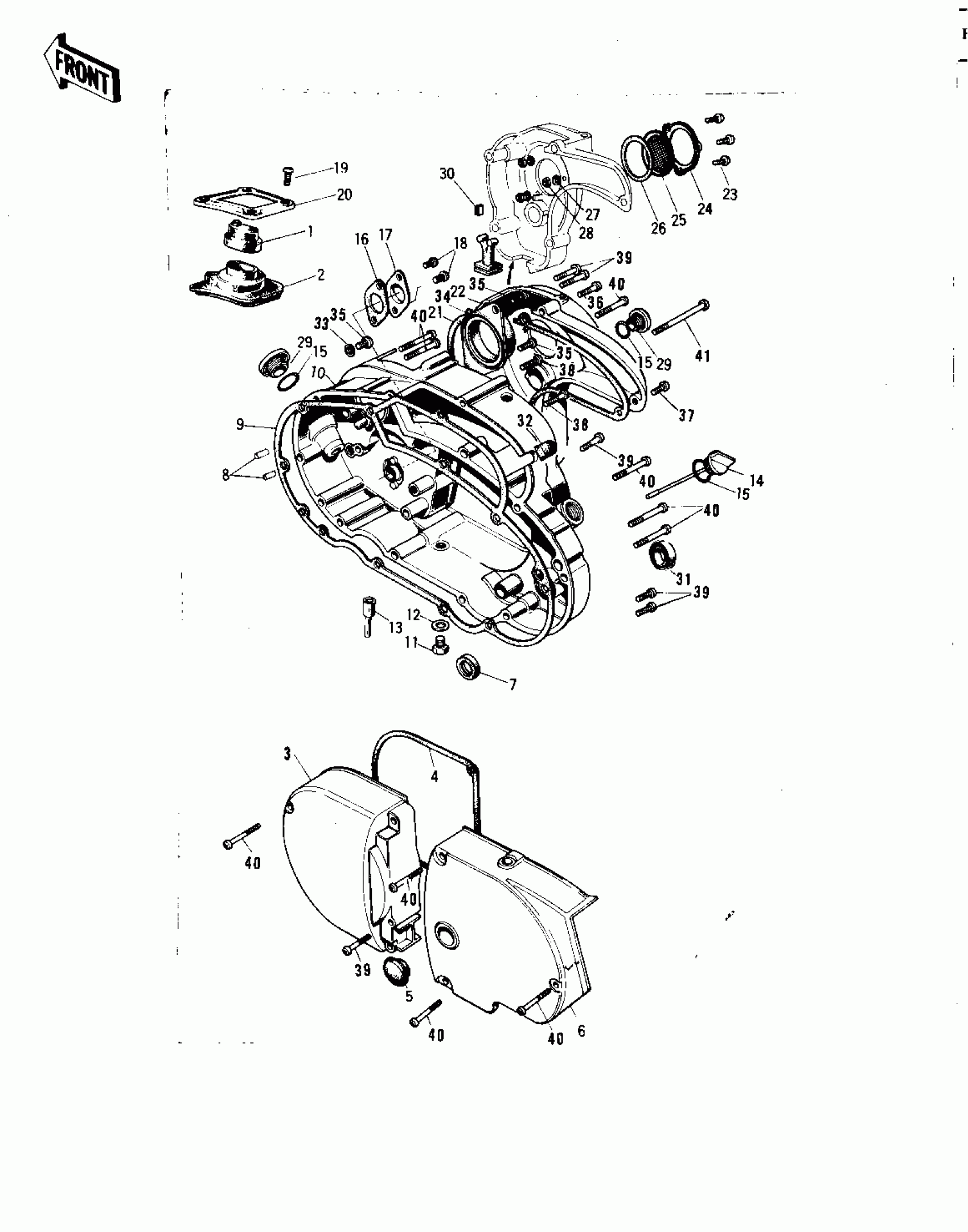

Kawasaki F8-A ENGINE COVERS ('71 F81M) Diagram
#
1
GROMMET-CARB CAP
14038-031
Unavailable
2
CAP-CARBURETOR
14038-029
Unavailable
3
COVER,L.H ENGINE,BUF
14031-038-80
Unavailable
4
GASKET-L.H ENG COVER
14045-008
Unavailable
5
CAP-CLUTCH HOLE
14040-003
Unavailable
6
COVER,CHAIN-CASE
14026-005-E8
Unavailable
7
SEAL-OIL,SB20285
92049-012
$10.89
8
ROLLER,5X12
610A0512
$4.78
9
GASKET-R.H-ENG.CVR
14046-020
Unavailable
10
COVER-R.H ENGINE
14032-065
Unavailable
11
PLUG,DRAIN,10X12
92067-001
$4.41
12
GASKET,10.5X16X1
92065-058
$3.96
13
PIPE FUEL OVERFLOW
16116-001
Unavailable
14
PLUG-OIL FILLER
16115-017
Unavailable
15
O RING,20MM
670B2020
$1.22
16
GASKET,OIL PUMP
11060-1160
$5.17
17
PLUG-OIL PUMP-HOLE
92084-004
Unavailable
18
SCREW PAN HEAD 5X8
220B0508
$0.46
19
SCREW-PAN-CROS
220B0512
$0.47
20
HOLDER-CARBURETOR CA
14065-001
Unavailable
21
GASKET-CARBURETOR CO
14048-002
Unavailable
22
COVER-CARBURETOR
14030-031
Unavailable
23
SCREW PAN HEAD 4X16
220B0416
$1.66
24
HOLDER-AIR FILTER
14065-003
$5.17
25
FILTER AIR
14063-002
Unavailable
26
GASKET-AIR FILTER
92065-074
Unavailable
27
WASHER SPRING 4MM
461F0400
Unavailable
28
NUT-HEX
311B0400
$0.52
29
PLUG-CARBURETOR COVER
92067-006
$48.86
30
STOPPER-CARBURETOR
14064-001
Unavailable
31
SEAL-OIL,SB12205
92049-004
$9.58
32
GROMMET
92071-047
Unavailable
33
WASHER OIL PUMP BANJO
92022-077
$3.99
34
HOLDER-CARBURETOR
16065-005
$23.69
35
SCREW PAN HEAD 6X12
220B0612
Unavailable
36
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
37
SCREW PAN HEAD 6X25
220B0625
$2.60
38
SCREW PAN HEAD 6X30
220B0630
$3.41
39
SCREW PAN HEAD 6X35
220B0635
$1.63
40
SCREW PAN HEAD 6X55
220B0655
$4.12
41
SCREW PAN HEAD 6X70
220B0670
$3.84
