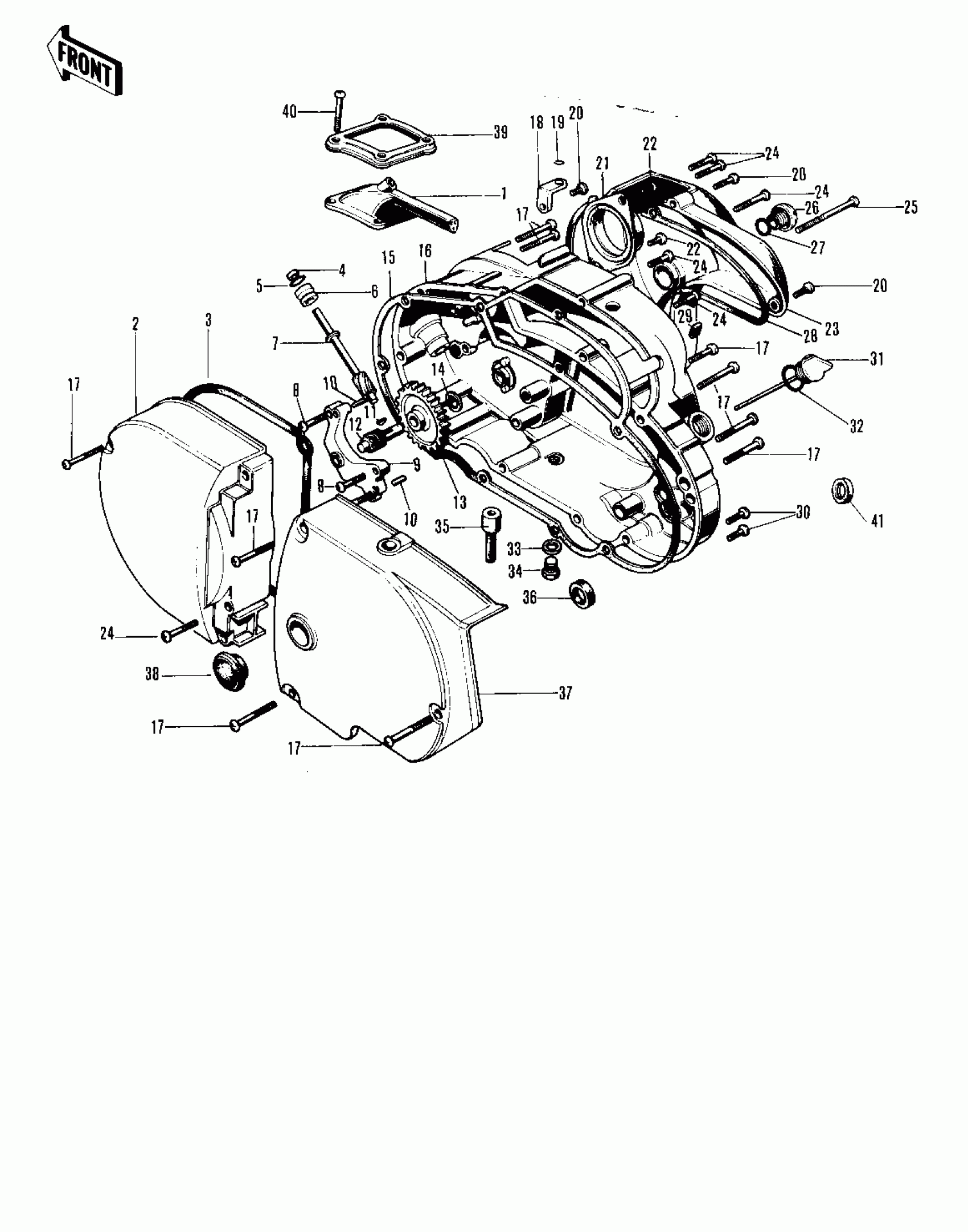

Kawasaki F8-A ENGINE COVERS ('71-'72 F8/F8-A) Diagram
#
1
CAP,CARBURETOR
14038-034
Unavailable
2
COVER,L.H ENGINE,BUF
14031-038-80
Unavailable
3
GASKET-L.H ENG COVER
14045-008
Unavailable
4
OIL SEAL
92054-004
Unavailable
5
RING-O,12X1.5
92055-025
$4.69
6
BUSH
92028-075
Unavailable
7
GEAR-TACHOMETER
13223-004
Unavailable
8
SCREW PAN HEAD 6X25
220B0625
$2.60
9
HOLDER-TACHOMETER GR
14018-004
Unavailable
10
ROLLER,5X12
610A0512
$4.78
11
KEY-WOODRUFF
510A3100
$2.70
12
PINION-TACHOMETER
13224-006
Unavailable
13
GEAR-OIL PUMP
16085-014
$18.24
14
WASHER THRUST
92026-025
Unavailable
15
GASKET-R.H-ENG.CVR
14046-020
Unavailable
16
COVER-R.H ENGINE
14032-065
Unavailable
17
SCREW PAN HEAD 6X55
220B0655
$4.12
18
HOLDER-OIL PUMP CABLE
14044-005
Unavailable
19
CIRCLIP
92036-017
$3.25
20
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
21
HOLDER-CARBURETOR
16065-005
$23.69
22
SCREW PAN HEAD 6X12
220B0612
Unavailable
23
COVER-CARBURETOR
14030-027
Unavailable
24
SCREW PAN HEAD 6X35
220B0635
$1.63
25
SCREW PAN HEAD 6X70
220B0670
$3.84
26
PLUG-CARBURETOR COVER
92067-006
$48.86
27
O RING,20MM
670B2020
$1.22
28
GASKET-CARBURETOR CO
14048-002
Unavailable
29
STOPPER-CARBURETOR
14064-001
Unavailable
30
SCREW PAN HEAD 6X30
220B0630
$3.41
31
PLUG-OIL FILLER
16115-017
Unavailable
32
O RING,20MM
670B2020
$1.22
33
GASKET,10.5X16X1
92065-058
$3.96
34
PLUG,DRAIN,10X12
92067-001
$4.41
35
PIPE FUEL OVERFLOW
16116-001
Unavailable
36
SEAL-OIL,SB20285
92049-012
$10.89
37
COVER,CHAIN-CASE
14026-005-E8
Unavailable
38
CAP-CLUTCH HOLE
14040-003
Unavailable
39
HOLDER-CARBURETOR CA
14065-001
Unavailable
40
SCREW-PAN-CROS
220B0512
$0.47
41
SEAL-OIL,SB12205
92049-004
$9.58
