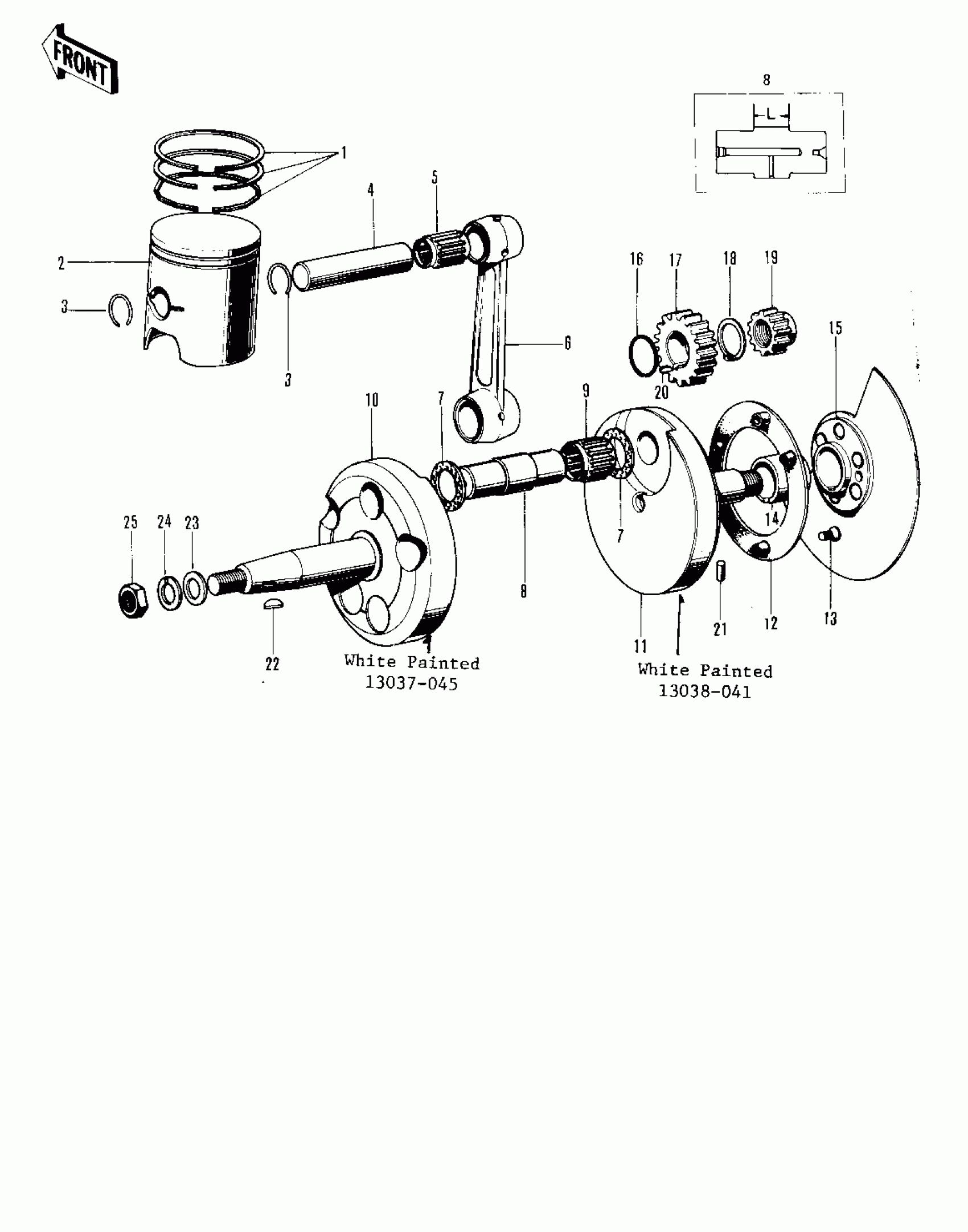

Kawasaki F8-A CRANKSHAFT/PISTON/ROTARY VALVE (F8) Diagram
#
Description
Price
1
RING SET,STD
13008-026
Unavailable
2
PISTON,STD
13001-041
Unavailable
3
CIRCLIP-PISTON PIN
92036-015
$4.95
4
PIN-PISTON
13002-017
$29.98
5
BEARING-SMALL END
13033-1010
$25.15
6-13
CRANK&CONROD ASSY
13036-036
Unavailable
6-13
CRANK&CONROD ASSY
13036-036
Unavailable
6-9
CONNECTING ROD SET
13044-009
Unavailable
6-9
CONNECTING ROD SET
13044-017
Unavailable
7
WASHER-PLAIN
92026-065
$5.44
7
WASHER-CONROD SIDE
92026-069
Unavailable
8
CRANK PIN
13035-021
Unavailable
8
CRANK PIN
13035-026
Unavailable
9
NEEDLE BRG-BIG END
13034-032
Unavailable
10
CRANKSHAFT L.H
13037-035
Unavailable
10
CRANKSHAFT,L.H
13037-045
Unavailable
11
CRANKSHAFT-R.H
13038-031
Unavailable
11
CRANKSHAFT,R.H
13038-045
Unavailable
12
HOLDER-CRANKSHAFT OI
13045-006
Unavailable
13
SCREW OVL CNTSNK 5X10
92012-002
Unavailable
14
CALLAR-CRANKSHAFT
92027-097
$19.04
15
VALVE-ROTARY DISC
12001-020
Unavailable
16
"0" RING,22MM
670B3022
$3.44
17
PINION,PRIMARY 24T
13121-028
Unavailable
18
WASHER-LOCK,18MM
92024-029
Unavailable
19
PINION-OIL PUMP
16084-011
$81.16
20
WOODRUFF KEY
510A5100
$2.70
21
ROLLER,4X12
610A0412
$5.52
22
KEY,WOODRUFF
92038-001
$4.96
23
WASHER-PLAIN,14MM
92022-172
Unavailable
24
WASHER SPRING 14MM
461F1400
Unavailable
25
NUT 14MM
92015-043
Unavailable
