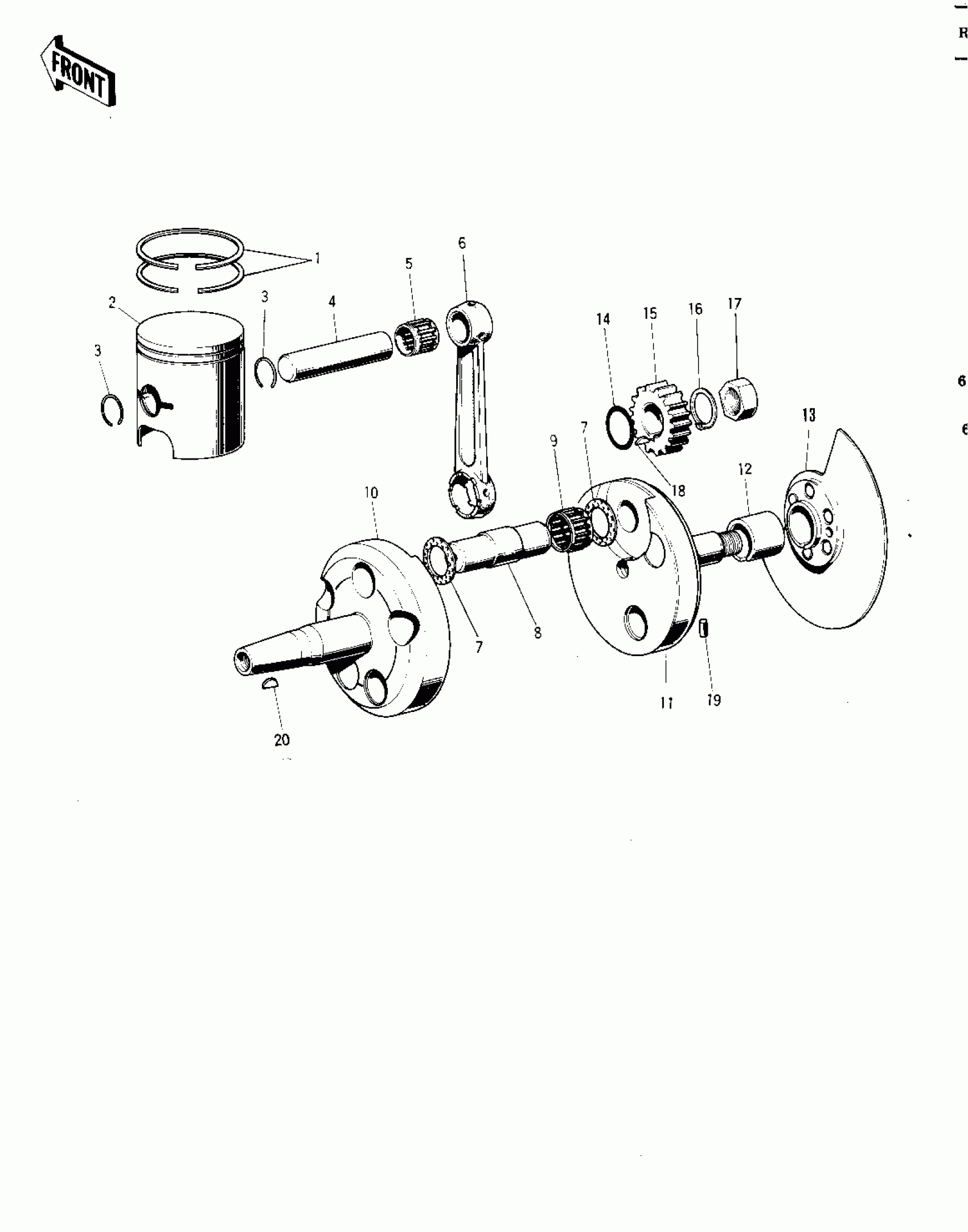

Kawasaki F8-A CRANKSHAFT/PISTON/ROTARY VALVE Diagram

#

Description
Price

1

RING SET,STD

13008-030

Unavailable

2

PISTON,STD

13001-046

Unavailable

3

CIRCLIP-PISTON PIN

92036-015

$4.95

4

PIN-PISTON

13002-017

$29.98

5

BEARING-SMALL END

13033-1010

$25.15

6~13

CRANK-CONROD ASSY

13036-029

Unavailable

6~9

CONNECTING ROD SET

13044-016

Unavailable

7

WASHER-CONROD SIDE

92026-069

Unavailable

8

CRANK PIN

13035-026

Unavailable

9

NEEDLE BRG-BIG END

13034-032

Unavailable

1

CRANKSHAFT,L.H

13037-041

Unavailable

11

UNAVAILABLE IN PRICE BOOK

13038-088

Unavailable

12

CALLAR-CRANKSHAFT

92027-097

$19.04

13

VALVE-ROTARY DISC

12001-021

Unavailable

14

"0" RING,22MM

670B3022

$3.44

15

PINION,PRIMARY 24T

13121-028

Unavailable

16

WASHER-LOCK,18MM

92024-029

Unavailable

17

NUT,18MM

92015-019

$7.22

18

WOODRUFF KEY

510A5100

$2.70

19

ROLLER,4X12

610A0412

$5.52

20

KEY,WOODRUFF

92038-001

$4.96
