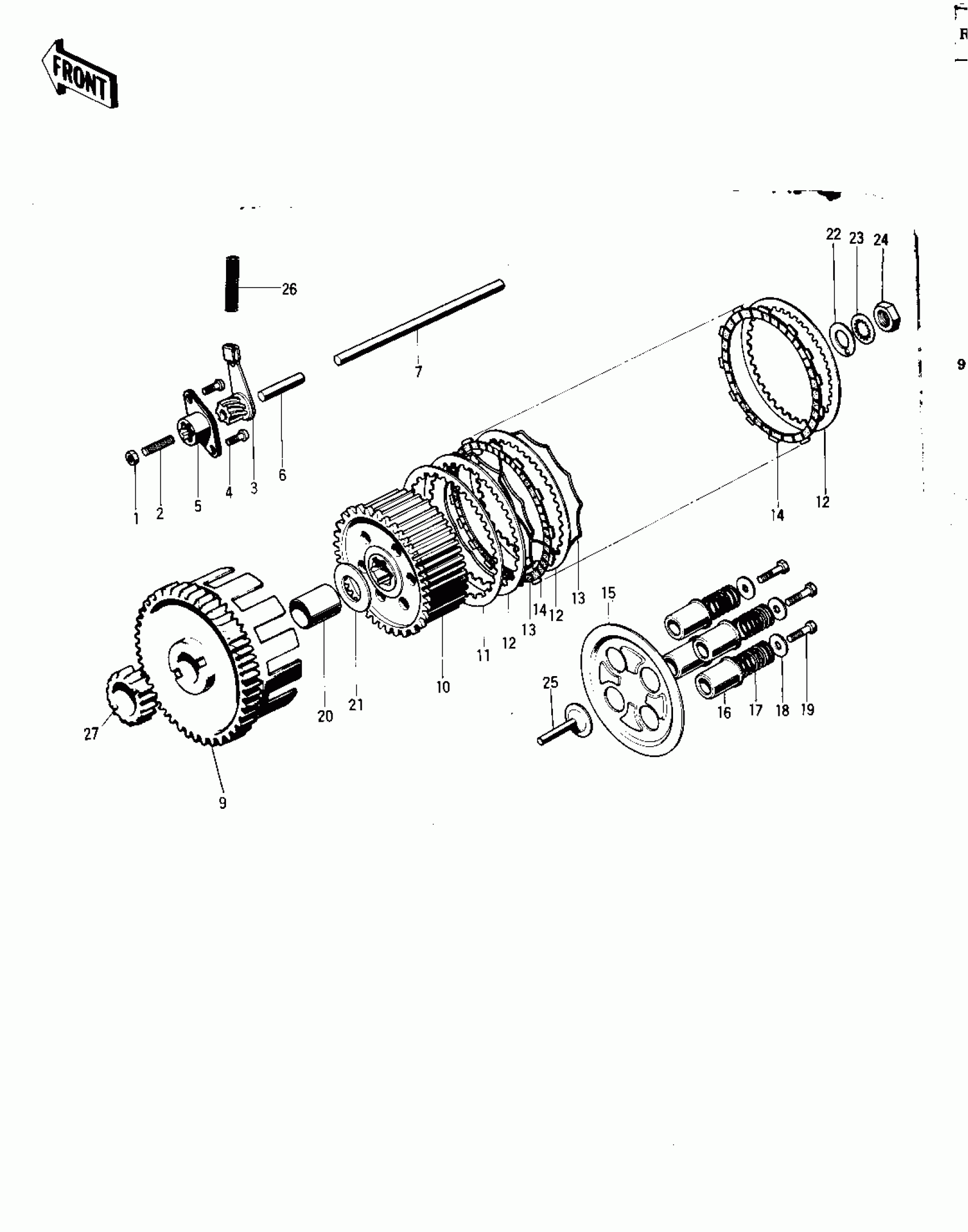

Kawasaki F8-A CLUTCH ('71 F81M) Diagram
#
Description
Price
1
NUT 6MM
311B0600
$0.93
1
NUT 6MM
311B0600
Unavailable
2
SCREW-CLUTCH ADJUST
92014-011
Unavailable
3
RELEASE INNER-CLUTCH
13102-010
Unavailable
4
SCREW-PAN-CROS,6X14
220B0614
$1.48
5
RELEASE OUTER-CLUTCH
13118-005
Unavailable
6
PUSH ROD-CLUTCH,SHOR
13116-013
Unavailable
7
PUSH ROD-CLUTCH,LONG
13116-012
Unavailable
8
WASHER,25.5X38X1
92022-145
$7.31
9~19
CLUTCH-ASSY
13081-034
Unavailable
9
.HOUSING-CLUTCH
13095-027
Unavailable
10
HUB-CLUTCH
13087-030
Unavailable
11
WHEEL-CLUTCH
13086-013
Unavailable
12
PLATE-CLUTCH,T=1.6
13089-013
$13.16
13
RING-CLUTCH STEEL
13229-003
Unavailable
14
.PLATE-CLUTCH FRICTIO
13088-021
Unavailable
15
PLATE-CLUTCH SPRING
13187-005
Unavailable
16
GUIDE CLUTCH SPRING
13092-005
Unavailable
17
SPRING CLUTCH
92081-042
$7.76
18
HOLDER CL SPG6.5X20X2
13091-009
Unavailable
19
BOLT-UPSET
112G0618
$1.01
20
UNAVAILABLE IN PRICE BOOK
92028-096
Unavailable
21
SPACER,25.5X47X2.5
92026-022
$9.91
22
WASHER PL 19X36.5X0.
92022-074
Unavailable
23
WASHER LOCK 18MM
463G1800
$3.33
24
NUT,18MM
92015-019
$7.22
25
PUSHER-CLTCH SPRG PLT
13116-011
Unavailable
26
SPRING,CLUTCH RELEASE
92081-069
$7.51
27
PINION-KICKSTARTER
13075-007
Unavailable
