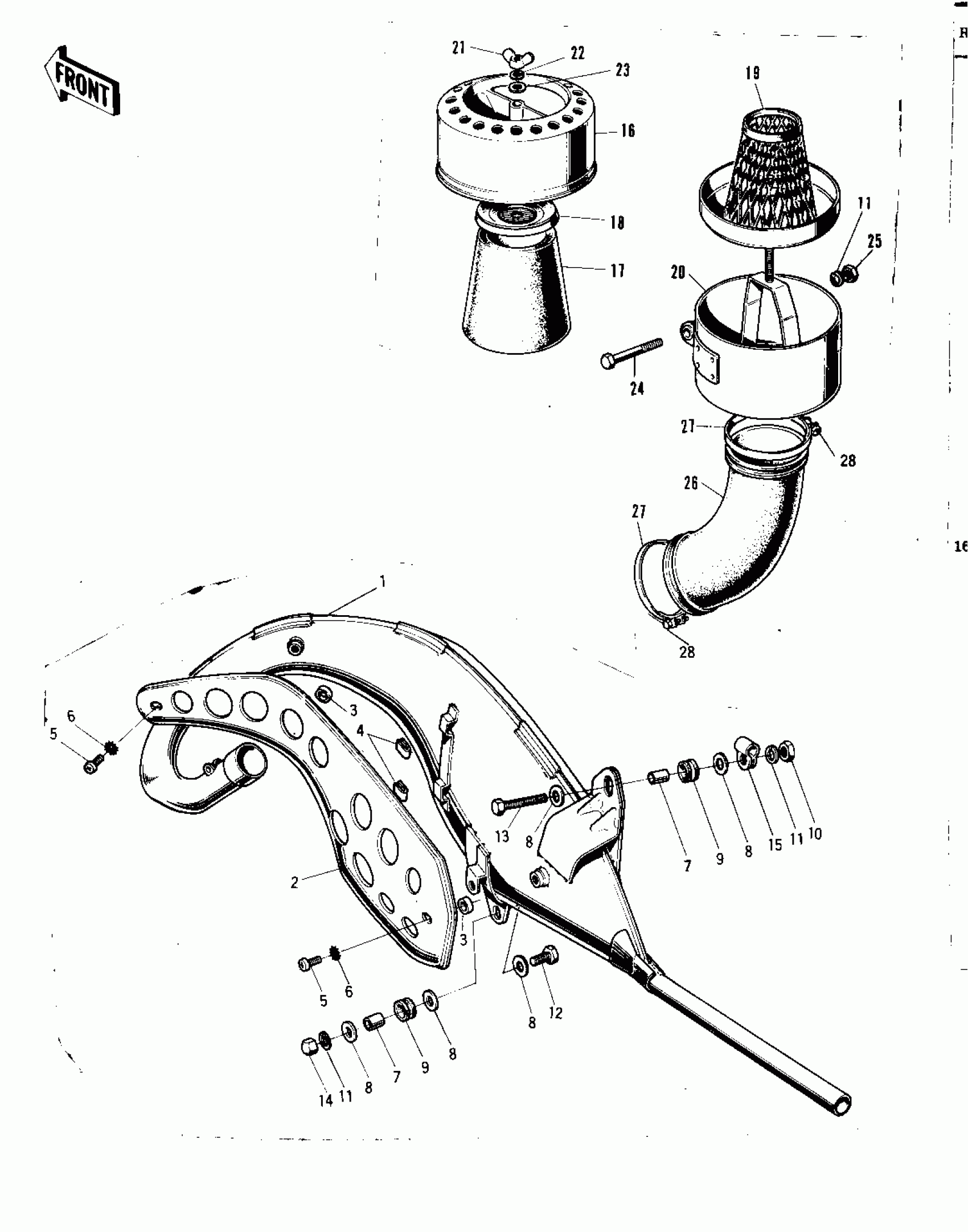

Kawasaki F8-A AIR CLEANER/MUFFLER ('71 F81M) Diagram
#
Description
Price
1
MUFFLER ASSY
18002-068
$186.73
2
COVER-MUFFLER
18064-004
$30.61
3
INSULATOR HEAT
18065-002
$4.19
4
INSULATOR
18065-007
$5.59
5
SCREW PAN HEAD 6X10
220E0610
$3.89
6
WASHER LOCK 6MM
463H0600
Unavailable
7
COLLAR
92027-102
$1.08
8
WASHER,8X26X2.3
92022-1564
$4.31
9
DAMPER RUBBER-MUFFLER
18063-005
$5.21
10
NUT 8MM
312B0800
$0.58
11
WASHER SPRING 8MM
461F0800
$0.40
12
BOLT HEX HEAD 8X28
114G0828
$3.71
13
BOLT,FLANGED,8X35
92001-1577
Unavailable
14
NUT FUEL TANK FRONT
92020-007
Unavailable
15
BRACKET,UPPER MUFFLE
32069-039
Unavailable
16~23
AIR CLEANER ASSY
11010-038
Unavailable
16
CAP-AIR CLEANER
11012-014
Unavailable
17
ELEMENT,AIR CLNR,MAIN
11013-021
Unavailable
18
ELEMENT,AIR CLNR,TOP
11013-022
Unavailable
19
WIRE NET-AIR CLEANER
11014-002
Unavailable
20
BODY-AIR CLEANER
11011-011
Unavailable
21
NUT-WING,6MM
92015-030
Unavailable
22
WASHER SPRING 6MM
461F0600
$0.69
23
WASHER PLAIN 6MM
411B0600
$2.84
24
BOLT,EXCLUSIVE
92001-1456
$4.90
25
NUT 6MM
311B0600
$0.93
26
CONNECTOR
11026-002
Unavailable
27
CLAMP,AIR CLEANER
92037-129
$16.69
28
SCREW PAN HEAD 6X30
220B0630
$3.41
