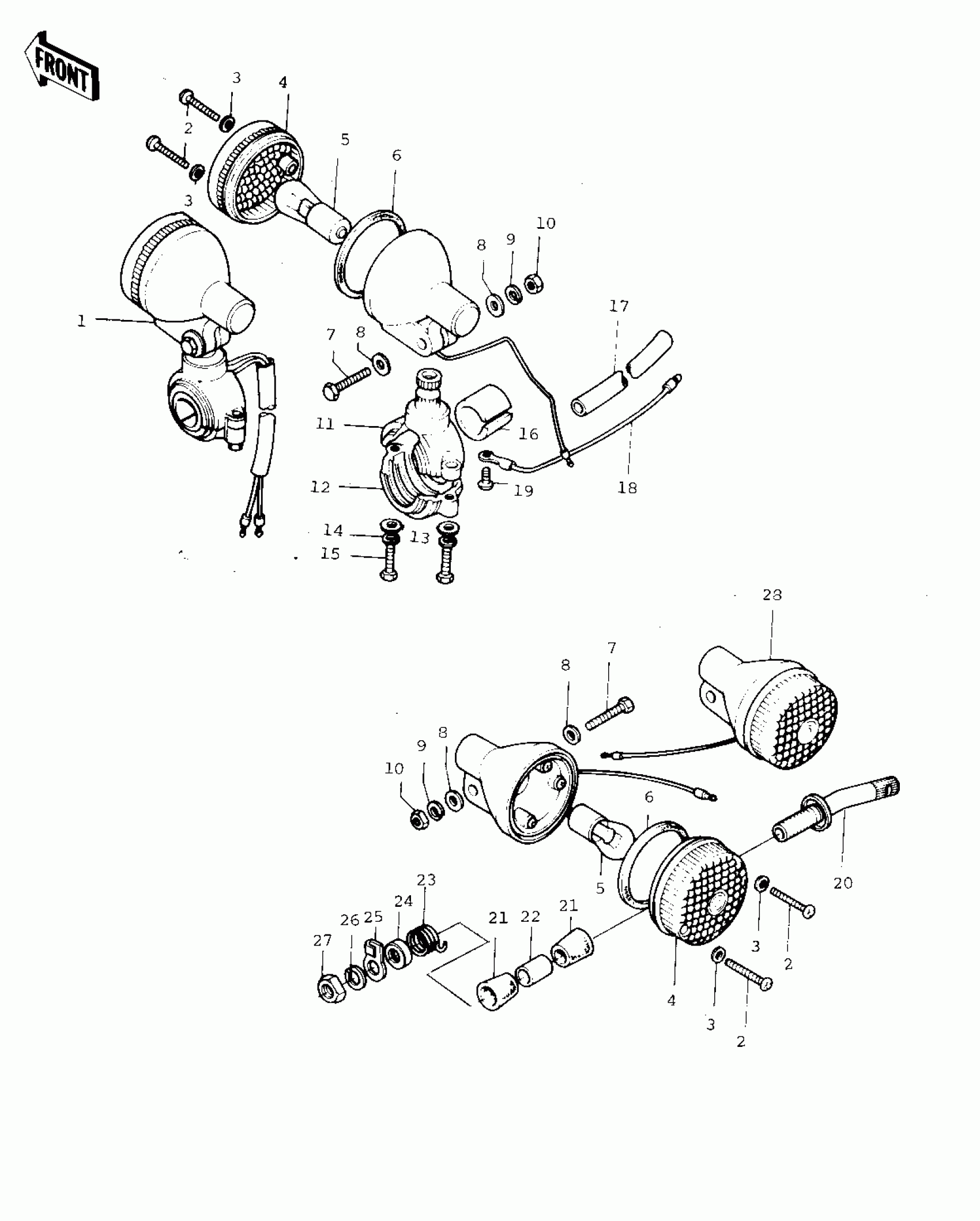

Kawasaki F7-D TURN SIGNALS Diagram
#
Description
Price
1
LAMP ASY-FR TURN SIG
23037-005
Unavailable
2
SCREW-PAN HEAD,4X20
220E0420A
Unavailable
3
WASHER,PLAIN,4MM
23058-002
Unavailable
4
LENS-SIGNAL LAMP,"045-6588"
23048-1001
Unavailable
5
BULB,6V 21CP
92069-056
Unavailable
6
GASKET,SIGNAL LAMP
23050-003
Unavailable
7
BOLT-UPSET
112G0630
Unavailable
8
WASHER-PLAIN,6MM
411D0600
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
NUT 6MM
311B0600
Unavailable
11
BRACKET-SIGNAL LAMP,FR
23051-1004
Unavailable
12
BRACKET-SIGNAL LAMP,FR
23051-1013
Unavailable
13
WASHER-PLAIN-SMALL,5MM
410D0500
Unavailable
14
WASHER SPRING 5MM
461F0500
Unavailable
15
BOLT
110N0516
Unavailable
16
DAMPER
23066-003
Unavailable
17
COVER-WIRING HARNESS
26009-004
Unavailable
18
WIRE-LEAD,SIGNAL LAMP
26011-061
Unavailable
19
SCREW PAN HEAD 3X5
220B0305A
Unavailable
20
BKT-RR SIGNAL LAMP
23051-037
Unavailable
21
DAMPER RUBBER
92075-148
Unavailable
22
COLLAR 12.7X17.3X30
92027-168
Unavailable
23
SPRING
92081-111
Unavailable
24
WASHER CUP 12.5X35X4T
92022-235
Unavailable
25
CLAMP-RR SIGNAL LAMP
92037-087
Unavailable
26
WASHER-SPRING,12MM
461F1200
Unavailable
27
NUT-HEX-FINE
315B1200
Unavailable
28
LAMP-REAR TURN SIGNAL
23040-033
Unavailable
