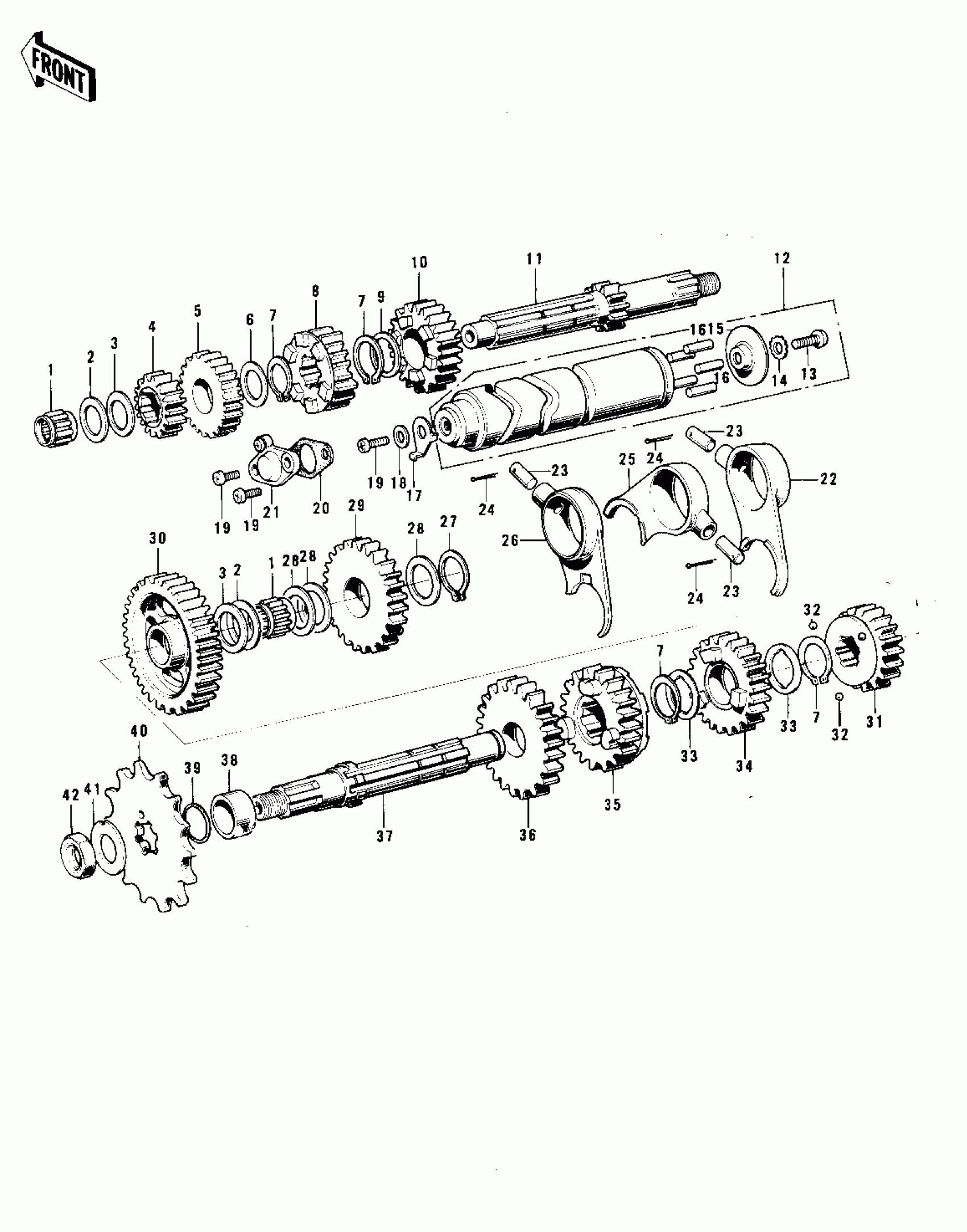

Kawasaki F7-D TRANSMISSION/CHANGE DRUM ('74-'75 F7-C/F Diagram
#
1
BEARING-NEEDLE,#7E-HKS162412-1
92046-026
Unavailable
2
WASHER,THRUST,16.5X28X1
92022-170
Unavailable
3
WASHER-THRUST
92022-171
Unavailable
4
2ND GEAR-DRIVE
13130-024
Unavailable
5
4TH GEAR-DRIVE
13134-008
Unavailable
6
WASHER,22.5X30X2.6
92022-181
Unavailable
7
CIRCRIP TYPE-C,21MM
480J2100
Unavailable
8
3RD GEAR-DRIVE
13132-022
Unavailable
9
WASHER 22MM
92022-106
Unavailable
10
TOP GEAR-DRIVE
13136-031
Unavailable
11
SHAFT-DRIVE
13127-029
Unavailable
12
DRUM ASSY-GEAR CHANGE
13239-002
Unavailable
13
SCREW-PAN-CROS,6X14
220B0614
Unavailable
14
WASHER LOCK 6MM
464H0600
Unavailable
15
PLATE-CHANGE DRUM PIN
13142-009
Unavailable
16
PIN,DOWEL,4X15.8
92042-014
Unavailable
17
ROTOR,TOP & NEUTRAL
21007-1003
Unavailable
18
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
19
SCREW-PAN-CROS,6X16
220B0616
Unavailable
20
GASKET,NEUTRAL SWITCH
13146-002
Unavailable
21
SWITCH,NEUTRAL
13151-1001
Unavailable
22
FORK-SELECTOR,LOW
13140-050
Unavailable
23
PIN SELECT FORK GUIDE
92043-005
Unavailable
24
PIN-COTTER,3.0X20
550D3020
Unavailable
25
FORK-SELECTOR,TOP
13140-049
Unavailable
26
FORK-SELECTOR
13140-030
Unavailable
27
CIRCLIP-TYPE-C,15MM
480J1500
Unavailable
28
WASHER,16.5X28X0.5
92022-169
Unavailable
29
IDLE GEAR-KICKSTARTER
13073-009
Unavailable
30
LOW GEAR,OUTPUT SHAFT
13129-051
Unavailable
31
TOP GEAR-OUTPUT
13137-016
Unavailable
32
BALL-STEEL,5/32
600A0500
Unavailable
33
WASHER-LOCK
92024-031
Unavailable
34
3RD GEAR-OUTPUT
13133-021
Unavailable
35
4TH GEAR-OUTPUT
13135-012
Unavailable
36
2ND GEAR-OUTPUT
13131-029
Unavailable
37
SHAFT-OUTPUT
13128-028
Unavailable
38
COLLAR-ENG SPROCKET
92027-180
Unavailable
39
RING-O,17.5X1.5
92055-022
Unavailable
40
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
40
ENGINE SPROCKET,13T
13144-053
Unavailable
40
SPROCKET-OUTPUT,15T
13144-054
Unavailable
41
WASHER LOCK 12MM
92024-002
Unavailable
42
NUT,12MM
92016-024
Unavailable
