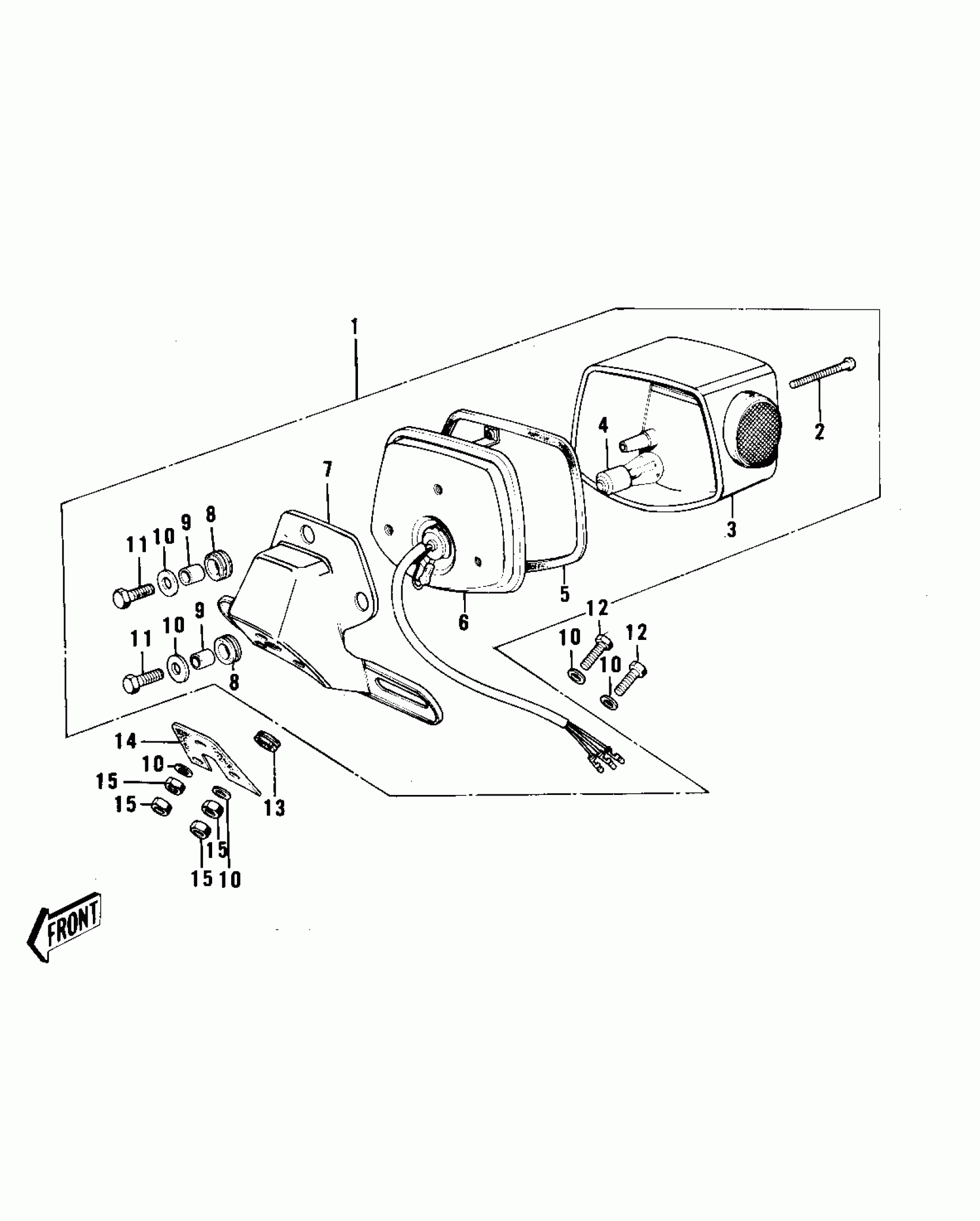

Kawasaki F7-D TAILLIGHT ('74-'75 F7-C/F6-D) Diagram

#

Description

Price

1

LAMP ASSY,TAIL.BLACK

23024-045-21

Unavailable

2

SCREW

220R0455

Unavailable

3

LENS,TAIL LAMP

23026-028

Unavailable

4

BULB,6V 32/3CP

92069-074

Unavailable

5

GASKET,TAIL LAMP LENS

23028-019

Unavailable

6

BODY COMP TAIL LAMP

23027-1018

Unavailable

7

BKT,LICENSE PIT,BLACK

23036-036-21

Unavailable

8

DAMPER RUBBER

92075-076

Unavailable

9

COLLAR,6.8X10X8.5

92027-129

Unavailable

10

WASHER,6.5X20X1.6

92022-125

Unavailable

11

BOLT-UPSET,6X20

112G0620

Unavailable

12

BOLT-UPSET

112G0630

Unavailable

13

GROMMET,10MM

92071-019

Unavailable

14

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

15

NUT 6MM

312B0600

Unavailable
