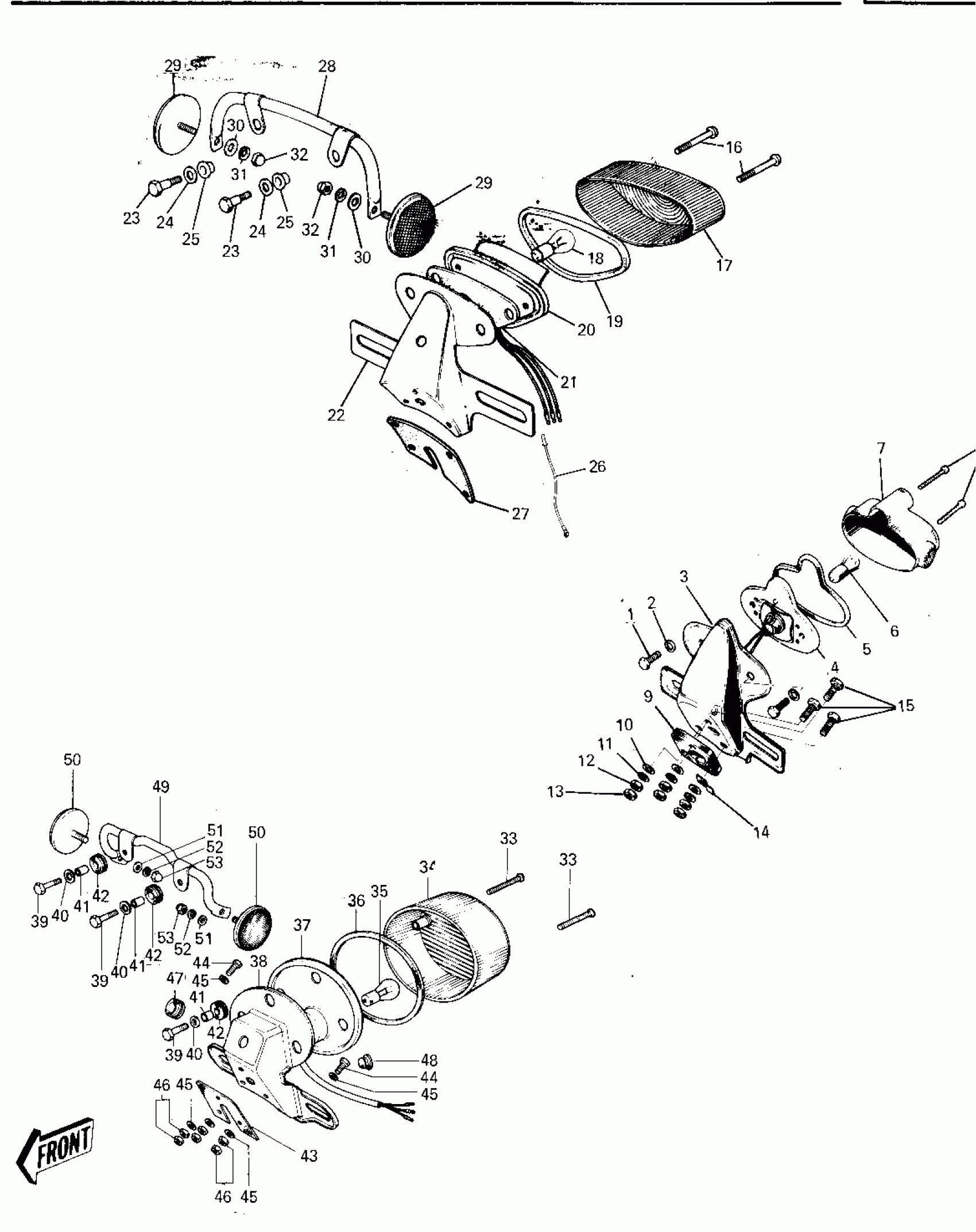

Kawasaki F7-D TAILLIGHT ('71-'73 F7/F7-A/F7-B) Diagram
#
1~8
LAMP ASSY-TAIL,BLACK
23024-019-21
Unavailable
1
BOLT HEX HEAD 5X10
110N0510
Unavailable
2
WASHER SPRING 5MM
461F0500
Unavailable
3
BKT LICENSE PLT BLACK
23036-007-10
Unavailable
4
SOCKET TAIL LAMP
23027-009
Unavailable
5
GASKET TAIL LAMP
23028-008
Unavailable
6
BULB 6V 3/21CP
92069-023
Unavailable
7
LENS TAIL LAMP
23026-010
Unavailable
8
SCREW PAN HEAD 4X50
220E0450
Unavailable
9
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
10
WASHER,6.5X20X1.6
92022-125
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
NUT 6MM
311B0600
Unavailable
13
NUT 6MM
312B0600
Unavailable
14
CLIP WIRING HARNESS
35024-002
Unavailable
15
BOLT-UPSET,6X35
112G0635
Unavailable
16~26
LAMP ASSY-TAIL,BLACK
23024-019-21
Unavailable
16
SCREW
220R0455
Unavailable
17
LENS-TAIL LAMP
23026-022
Unavailable
18
BULB 6V 3/21CP
92069-023
Unavailable
19
GASKET-TAIL LAMP LENS
23028-016
Unavailable
20,21
CASE-TAIL LAMP
23027-029
Unavailable
21
GASKET-TAIL LAMP CASE
23028-015
Unavailable
22
BKT-LICENSE PLT,BLACK
23036-014-21
Unavailable
23
BOLT
92001-111
Unavailable
24
WASHER,8.5X20X1.6
92022-1561
Unavailable
25
DAMPER RUBBER
92075-091
Unavailable
26
WIRE IGNITION LEAD
26011-014
Unavailable
27
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
28
BRACKET-REFLECTOR
28013-002
Unavailable
29
UNAVAILABLE IN PRICE BOOK
28-12-008
Unavailable
30
WASHER-PLAIN,5MM
411B0500
Unavailable
31
WASHER SPRING 5MM
461F0500
Unavailable
32
NUT-CAP,5MM
322N0500
Unavailable
33~42
LAMP ASSY,TAIL,BLACK
23024-069-21
Unavailable
33
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
34
LENS-TAIL LAMP
23026-023
Unavailable
35
BULB,6V 17/5.3W
92069-028
Unavailable
36
GASKET-TAIL LAMP LENS
23028-018
Unavailable
37
CASE,TAIL LAMP
23027-030
Unavailable
38
BKT-LICENSE PLT.BLACK
23036-019-21
Unavailable
39
BOLT-UPSET,6X20
112G0620
Unavailable
40
WASHER,6.5X20X1.6
92022-125
Unavailable
41
COLLAR,6.8X10X8.5
92027-129
Unavailable
42
DAMPER RUBBER
92075-076
Unavailable
43
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
44
BOLT-UPSET
116B0625
Unavailable
45
WASHER,6.5X20X1.6
92022-125
Unavailable
46
NUT 6MM
312B0600
Unavailable
47
GROMMET,10MM
92071-019
Unavailable
48
PLUG REAR FENDER RUB
92074-006
Unavailable
49
BRACKET-REFLECTOR
28013-005
Unavailable
50
REFLECTOR,REFLEX,REAR
28012-009
Unavailable
51
WASHER-PLAIN,5MM
411B0500
Unavailable
52
WASHER SPRING 5MM
461F0500
Unavailable
53
NUT-CAP,5MM
322N0500
Unavailable
