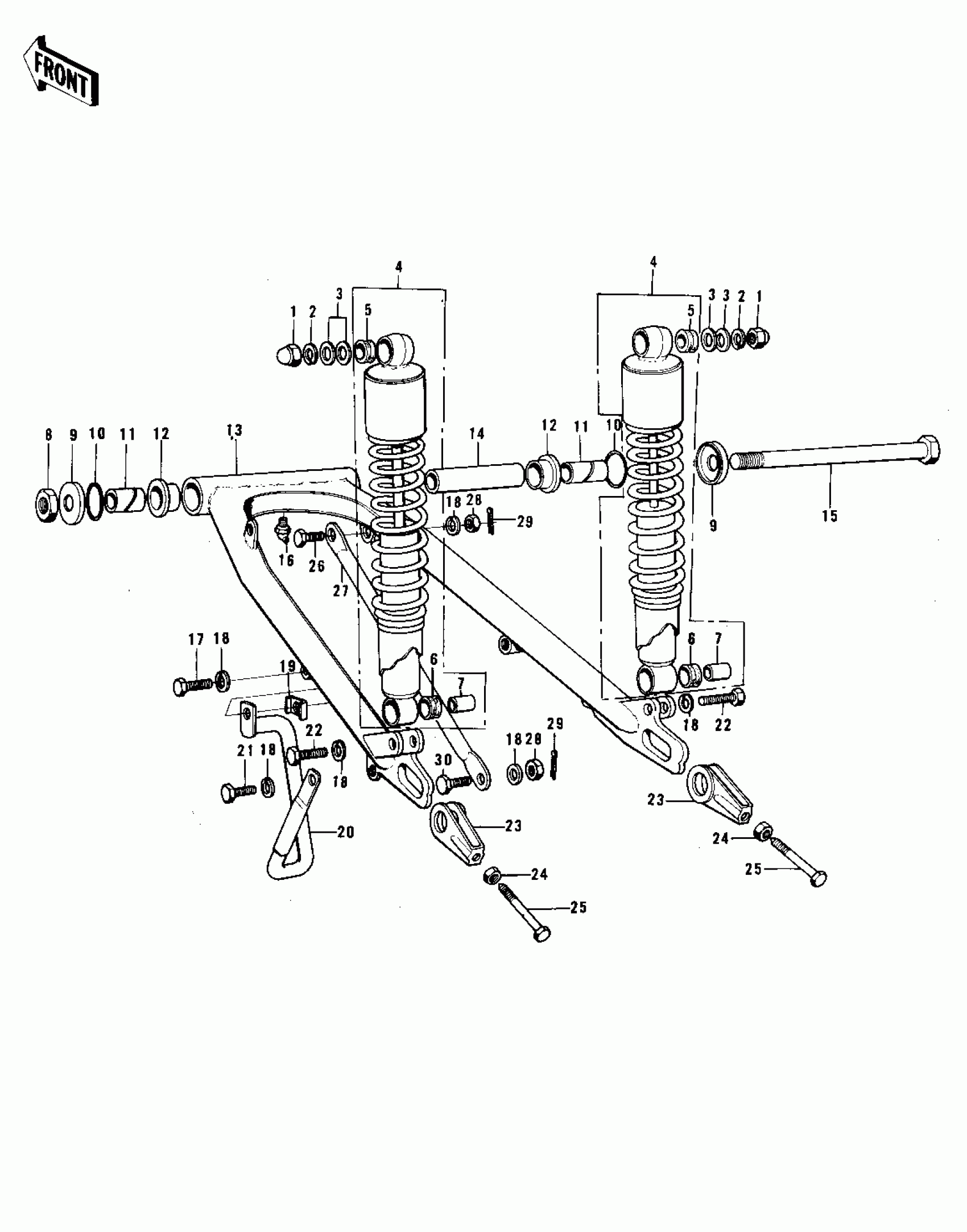

Kawasaki F7-D SWING ARM/SHOCK ABSORBERS ('74-'75 F7-C/ Diagram
#
Description
Price
1
NUT,CAP,10MM
92020-003
Unavailable
2
WASHER SPRING 10MM
461F1000
Unavailable
3
WASHER,10.5X26X2.3
92022-044
Unavailable
4
SHOCK ABSBR RR
45014-075
Unavailable
5
BUSHING,SHCK ABS RUB
45017-018
Unavailable
6
DAMPER,SHOCKABSORBER
92075-1020
Unavailable
7
COLLAR,SHOCKABSORBER
45016-003
Unavailable
8
NUT-LOCK,12MM
92019-009
Unavailable
9
CAP-SWINGING ARM
33035-005
Unavailable
10
"0" RING,30MM
671B2530
Unavailable
11
SLEEVE-SWINGING ARM
33034-016
Unavailable
12
BUSHING-SWING ARM
33033-009
Unavailable
14
COLLAR SWING ARM
33036-002
Unavailable
15
SHAFT-SWING ARM PIVOT
33032-029
Unavailable
16
GREASE NIPPLE
92005-002
Unavailable
17
BOLT,HEX HEAD,10X50
92001-1254
Unavailable
18
WASHER SPRING 10MM
461F1000
Unavailable
19
NUT-CHAIN GUARD FIT
92017-009
Unavailable
20
GUARD-CHAIN
55020-005
Unavailable
21
BOLT,HEX HEAD,10X18
113G1018
Unavailable
22
BOLT HEX HEAD 10X35
113N1035
Unavailable
23
ADJUSTER-CHAIN
33040-048
Unavailable
24
NUT 8MM
312B0800
Unavailable
25
BOLT,8X50
92001-1399
Unavailable
26
BOLT,10X25
92003-017
Unavailable
27
TORQUE LINK REAR BRK
43007-018
Unavailable
28
NUT-HEX-FINE,10MM
314B1000
Unavailable
29
PIN COTTER 2.0X15
550D2015
Unavailable
30
BOLT,10X32
92003-003
Unavailable
