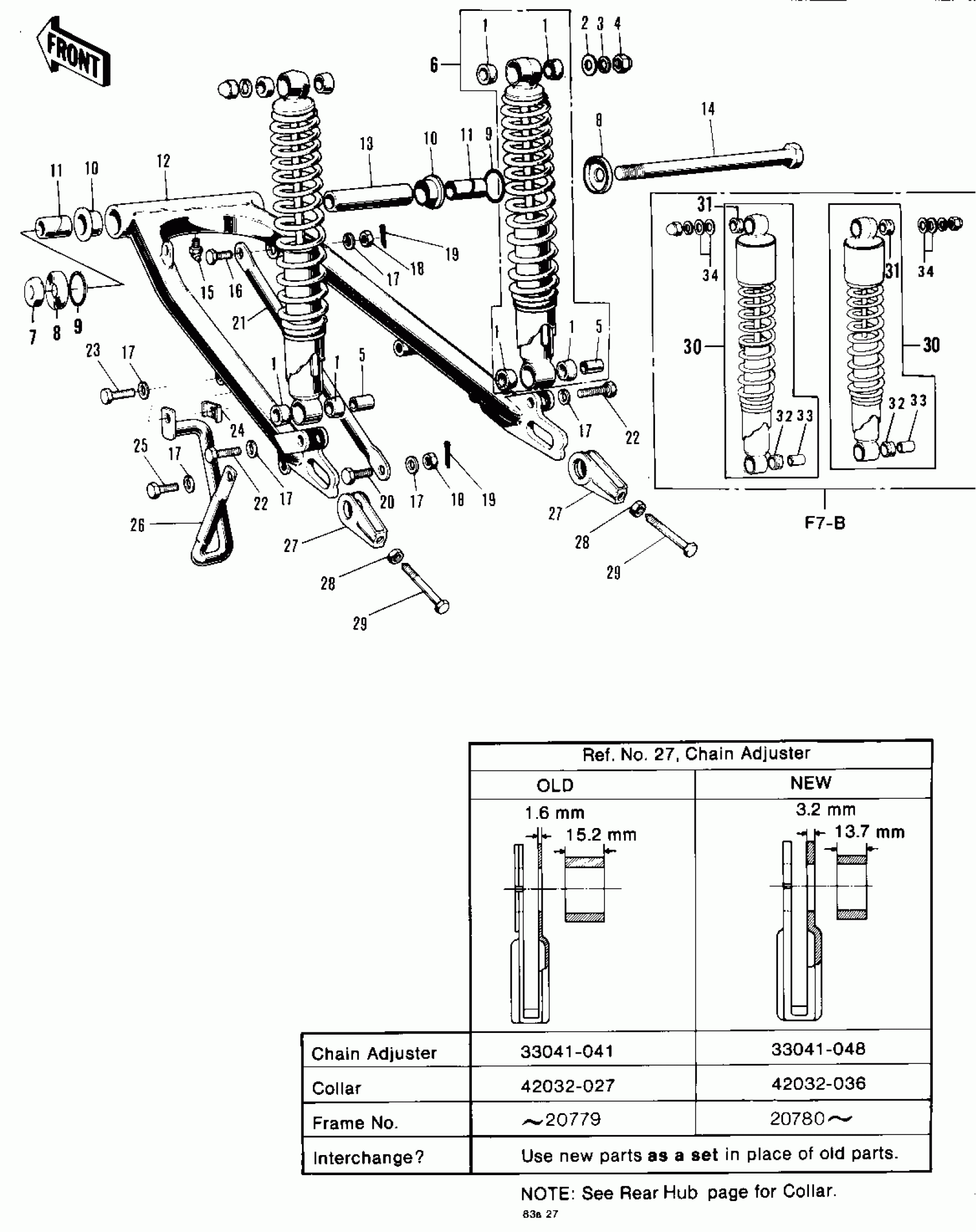

Kawasaki F7-D SWING ARM/SHOCK ABSORBERS ('71-'73 F7/F7 Diagram
#
1
BUSH SHOCK ABSORBER
45017-003
Unavailable
1
BUSH-SHOCK ABSORBER
45017-005
Unavailable
2
WASHER,10.5X26X2.3
92022-044
Unavailable
3
WASHER SPRING 10MM
461F1000
Unavailable
4
NUT,CAP,10MM
92020-003
Unavailable
5
COLLAR,SHOCKABSORBER
45016-003
Unavailable
6
SHOCK ABSORBER-REAR
45014-058
Unavailable
6
SHOCK ABSBR RR
45014-070
Unavailable
7
NUT-LOCK,12MM
92019-009
Unavailable
8
CAP-SWINGING ARM
33035-005
Unavailable
9
"0" RING,30MM
671B2530
Unavailable
10
BUSHING-SWING ARM
33033-009
Unavailable
11
SLEEVE-SWINGING ARM
33034-016
Unavailable
12
ARM-SWING
33001-035
Unavailable
13
COLLAR SWING ARM
33036-002
Unavailable
14
SHAFT-SWING ARM PIVOT
33032-029
Unavailable
15
GREASE NIPPLE
92005-002
Unavailable
16
BOLT,10X25
92003-017
Unavailable
17
WASHER SPRING 10MM
461F1000
Unavailable
18
NUT-HEX-FINE,10MM
314B1000
Unavailable
18
NUT-HEX-FINE,10MM
314B1000
Unavailable
19
PIN COTTER 2.0X15
550D2015
Unavailable
20
BOLT,10X32
92003-003
Unavailable
21
TORQUE LINK REAR BRK
43007-018
Unavailable
22
BOLT HEX HEAD 10X35
113N1035
Unavailable
23
BOLT,HEX HEAD,10X50
92001-1254
Unavailable
24
NUT-CHAIN GUARD FIT
92017-009
Unavailable
25
BOLT,HEX HEAD,10X18
113G1018
Unavailable
26
GUARD-CHAIN
55020-005
Unavailable
27
ADJUSTER-CHAIN
33040-041
Unavailable
27
ADJUSTER-CHAIN
33040-048
Unavailable
28
NUT 8MM
312B0800
Unavailable
29
BOLT,8X50
92001-1399
Unavailable
29
BOLT,8X50
92001-1399
Unavailable
30
SHOCK ABSBR RR
45014-075
Unavailable
31
BUSHING,SHCK ABS RUB
45017-018
Unavailable
32
DAMPER,SHOCKABSORBER
92075-1020
Unavailable
32
DAMPER,SHOCKABSORBER
92075-1020
Unavailable
33
COLLAR,SHOCKABSORBER
45016-003
Unavailable
37
WASHER,10.5X26X2.3
92022-044
Unavailable
