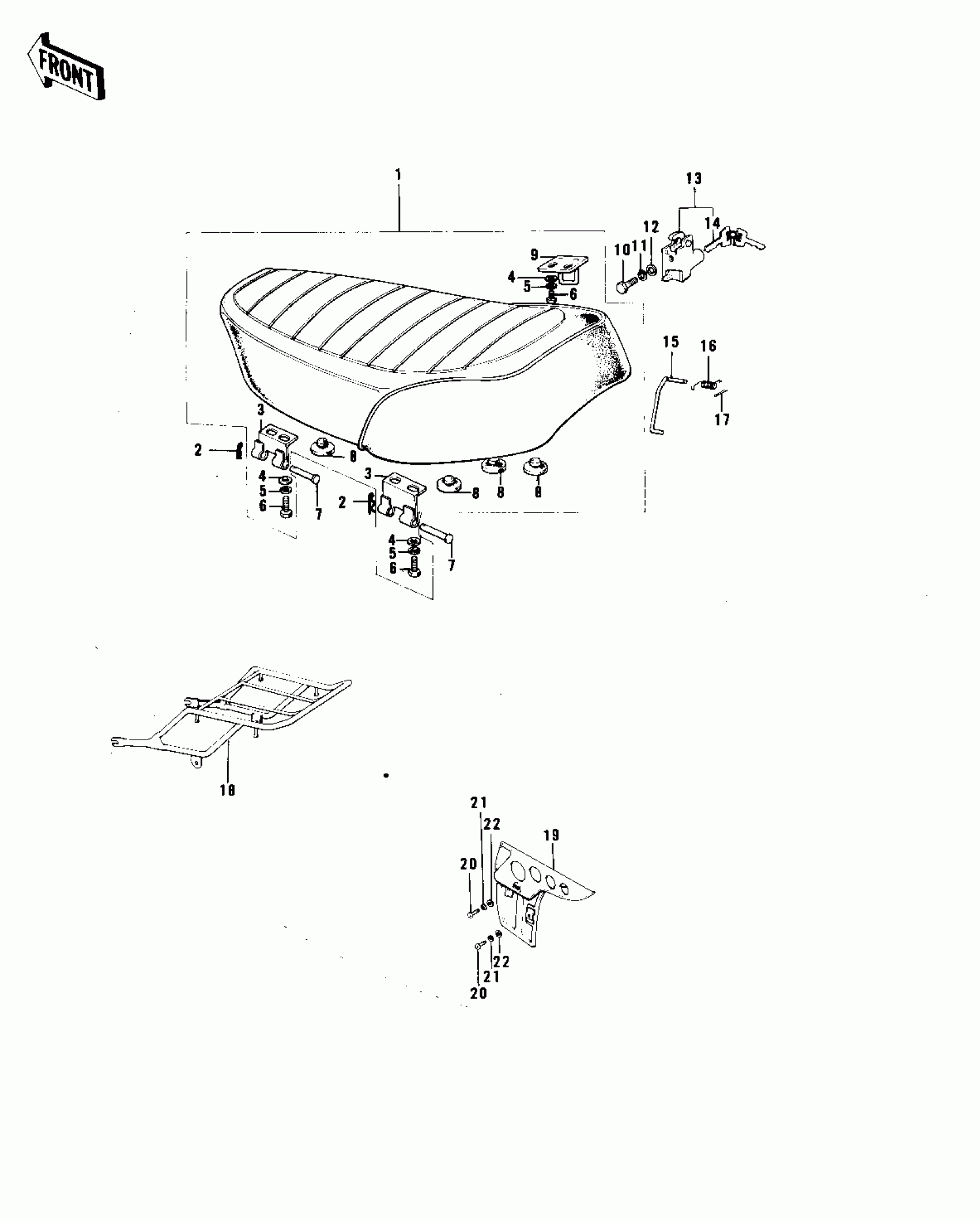

Kawasaki F7-D SEAT/CHAIN COVER ('74-'75 F7-C/F6-D) Diagram
#
1
SEAT ASSY, DUAL
53002-054
Unavailable
2
COTTER PIN
92041-003
Unavailable
3
HINGE
53009-015
Unavailable
4
WASHER PLAIN 6MM
411B0600
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
PIN,6X48
53011-002
Unavailable
8
DAMPER,DUAL SEAT
92075-023
Unavailable
9
HOOK,SEAT
53008-021
Unavailable
10
BOLT-UPSET,6X12
112G0612
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
WASHER PLAIN 6MM
411B0600
Unavailable
13
HOOK-ASSY,SEAT
53045-014
Unavailable
14
KEY SET,#401
27008-063-01
Unavailable
14
KEY SET,#402
27008-063-02
Unavailable
14
KEY SET,#403
27008-063-03
Unavailable
14
KEY SET,#404
27008-063-04
Unavailable
14
KEY SET,#405
27008-063-05
Unavailable
14
KEY SET,#406
27008-063-06
Unavailable
14
KEY SET,#407
27008-063-07
Unavailable
14
KEY SET,#408
27008-063-08
Unavailable
14
KEY SET,#409
27008-063-09
Unavailable
14
KEY SET,#410
27008-063-10
Unavailable
14
KEY SET,#411
27008-063-11
Unavailable
14
KEY SET,#412
27008-063-12
Unavailable
14
KEY SET,#413
27008-063-13
Unavailable
14
KEY SET,#414
27008-063-14
Unavailable
14
KEY SET,#415
27008-063-15
Unavailable
14
KEY SET,#416
27008-063-16
Unavailable
14
KEY SET,#417
27008-063-17
Unavailable
14
KEY SET,#418
27008-063-18
Unavailable
14
KEY SET,#419
27008-063-19
Unavailable
14
KEY SET,#420
27008-063-20
Unavailable
14
KEY SET,#421
27008-063-21
Unavailable
14
KEY SET,#422
27008-063-22
Unavailable
14
KEY SET,#423
27008-063-23
Unavailable
14
KEY SET,#424
27008-063-24
Unavailable
14
KEY SET,#425
27008-063-25
Unavailable
14
KEY SET,#426
27008-063-26
Unavailable
14
KEY SET,#427
27008-063-27
Unavailable
14
KEY SET,#428
27008-063-28
Unavailable
14
KEY SET,#429
27008-063-29
Unavailable
14
KEY SET,#430
27008-063-30
Unavailable
15
STAND, SEAT
53054-007
Unavailable
16
SPRING,SEAT STAND
53055-002
Unavailable
17
PIN COTTER 2.0X15
550D2015
Unavailable
18
CARRIER-LUGGAGE
53029-045
Unavailable
19
CASE-CHAIN,BLACK
36014-035-21
Unavailable
20
SCREW PAN HEAD 6X12
220B0612
Unavailable
21
WASHER SPRING 6MM
461F0600
Unavailable
22
WASHER PLAIN 6MM
411B0600
Unavailable
