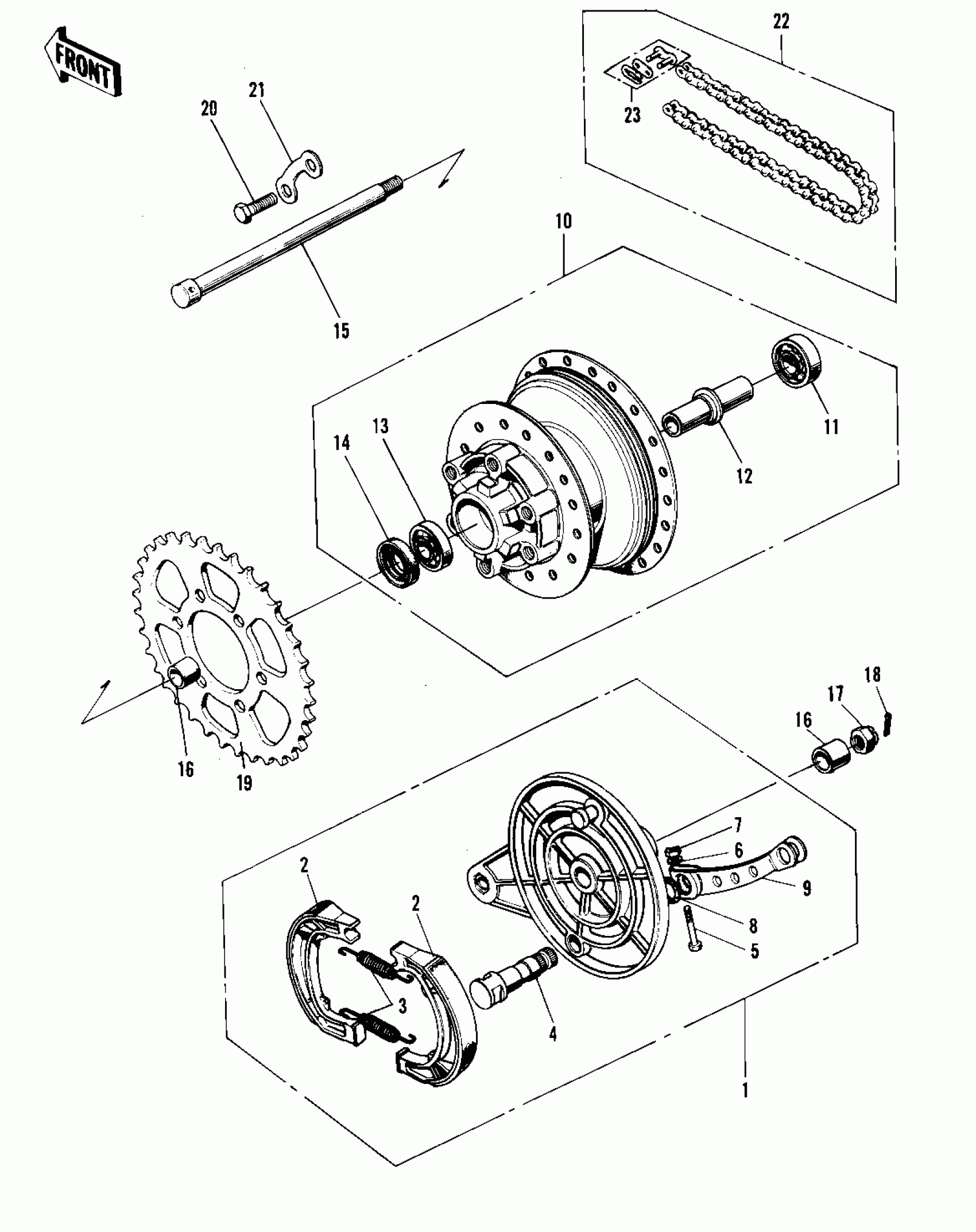

Kawasaki F7-D REAR HUB/BRAKE/CHAIN ('71-'73 F7/F7-A/F7 Diagram
#
1
PANEL-ASY,RR BRK
42006-018
Unavailable
1
PANEL-ASY,RR BRK,BLK
42006-028-21
Unavailable
2
SHOE,BRAKE
41048-1007
Unavailable
2
SHOE,BRAKE
41048-1007
Unavailable
3
SPRING,BRAKE SHOE
92081-1766
Unavailable
4
CAM-BRAKE
41050-018
Unavailable
4
CAM-BRAKE
41050-018
Unavailable
5
BOLT-UPSET
112G0630
Unavailable
6
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
7
NUT 6MM
311B0600
Unavailable
8
RING-O,BRAKE CAM
92055-004
Unavailable
9
LEVER-REAR BRAKE CAM
42029-015
Unavailable
9
LEVER-REAR BRAKE CAM
42029-023
Unavailable
10
DRUM ASSY-REAR BRAKE
42005-024
Unavailable
10
DRUM ASSY-REAR BRAKE
42005-029
Unavailable
11
BEARING BALL #6302Z
601B6302Z
Unavailable
12
SPACER-RR HUB BEARING
42010-019
Unavailable
13
BEARING-BALL,#6302C3
601B6302
Unavailable
14
OIL SEAL RR BRK DRUM
92050-009
Unavailable
15
AXLE-REAR
42031-037
Unavailable
15
AXLE-REAR
42031-037
Unavailable
16
COLLAR-REAR HUB
42032-027
Unavailable
16
COLLAR-REAR HUB
42032-027
Unavailable
16
COLLAR-REAR HUB
42032-027
Unavailable
16
COLLAR-REAR AXLE
42032-036
Unavailable
16
COLLAR-REAR AXLE
42032-036
Unavailable
16
COLLAR-REAR AXLE
42032-036
Unavailable
17
NUT CASTLE 14MM
321B1400
Unavailable
18
PIN-COTTER,3.0X30
550D3030
Unavailable
19
REAR SPROCKET 50T
42041-085
Unavailable
19
REAR SPROCKET,46T
42041-084
Unavailable
19
SPROCKET-REAR,55T
42041-094
Unavailable
20
BOLT-HEX HEAD,10X25
92001-087
Unavailable
21
WASHER LOCK
92088-007
Unavailable
22
UNAVAILABLE IN PRICE BOOK
695Z43114
Unavailable
22
DR CHAIN 428X114H
92057-033
Unavailable
23
JOINT-CHAIN
92058-1015
Unavailable
