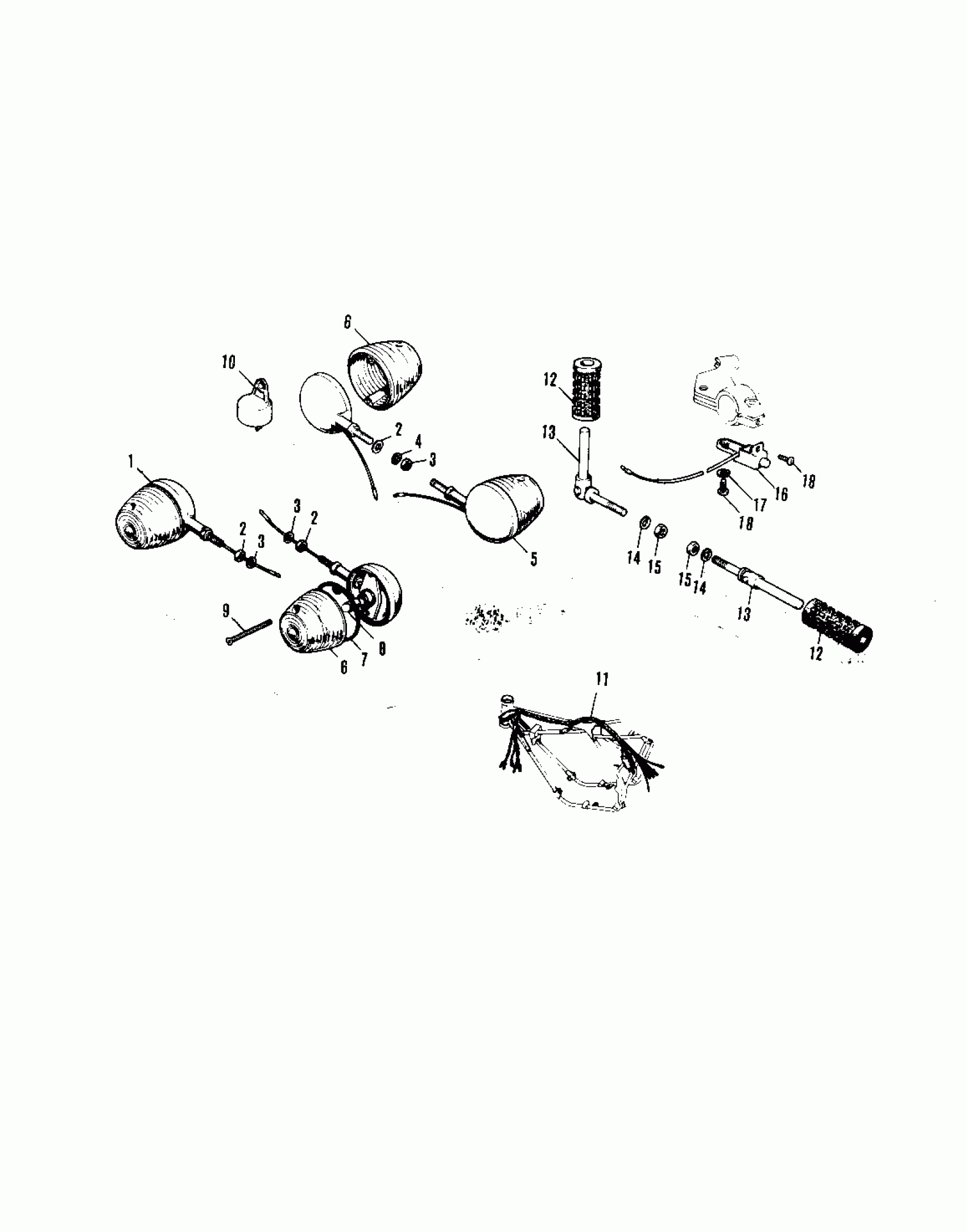

Kawasaki F7-D OPTIONAL PARTS (F7/F7-A) Diagram

#

Description
Price

1

FR. TURN SIG. LAMP (O

23040-027

Unavailable

2

NUT-HEX-FINE,10MM

315B1000

Unavailable

3

WASHER PLAIN 10MM

410B1000

Unavailable

4

WASHER SPRING 10MM

461F1000

Unavailable

5

RR TURN SIG LAMP (OPT

23043-024

Unavailable

6

LENS TURN SIGNAL LAMP

23048-011

Unavailable

8

BULB,6V 8W

92069-042

Unavailable

9

SCREW OVL CNTSNK 3X15

222B0315A

Unavailable

10

RELAY-TURN SIG. (OPT)

27002-010

Unavailable

11

WIRING HARNESS (OPT)

26001-056

Unavailable

12

RUBBER REAR FOOTREST

92076-008

Unavailable

13

FOOTREST BAR REAR

34027-013

Unavailable

14

WASHER SPRING 10MM

461F1000

Unavailable

15

NUT-HEX-FINE,10MM

314B1000

Unavailable

16

SWITCH ASSY-ENG STOP

46027-006

Unavailable

17

WASHER SPRING 3MM

461F0300

Unavailable

18

SCREW-PAN-CROS,3X6

220B0306

Unavailable
