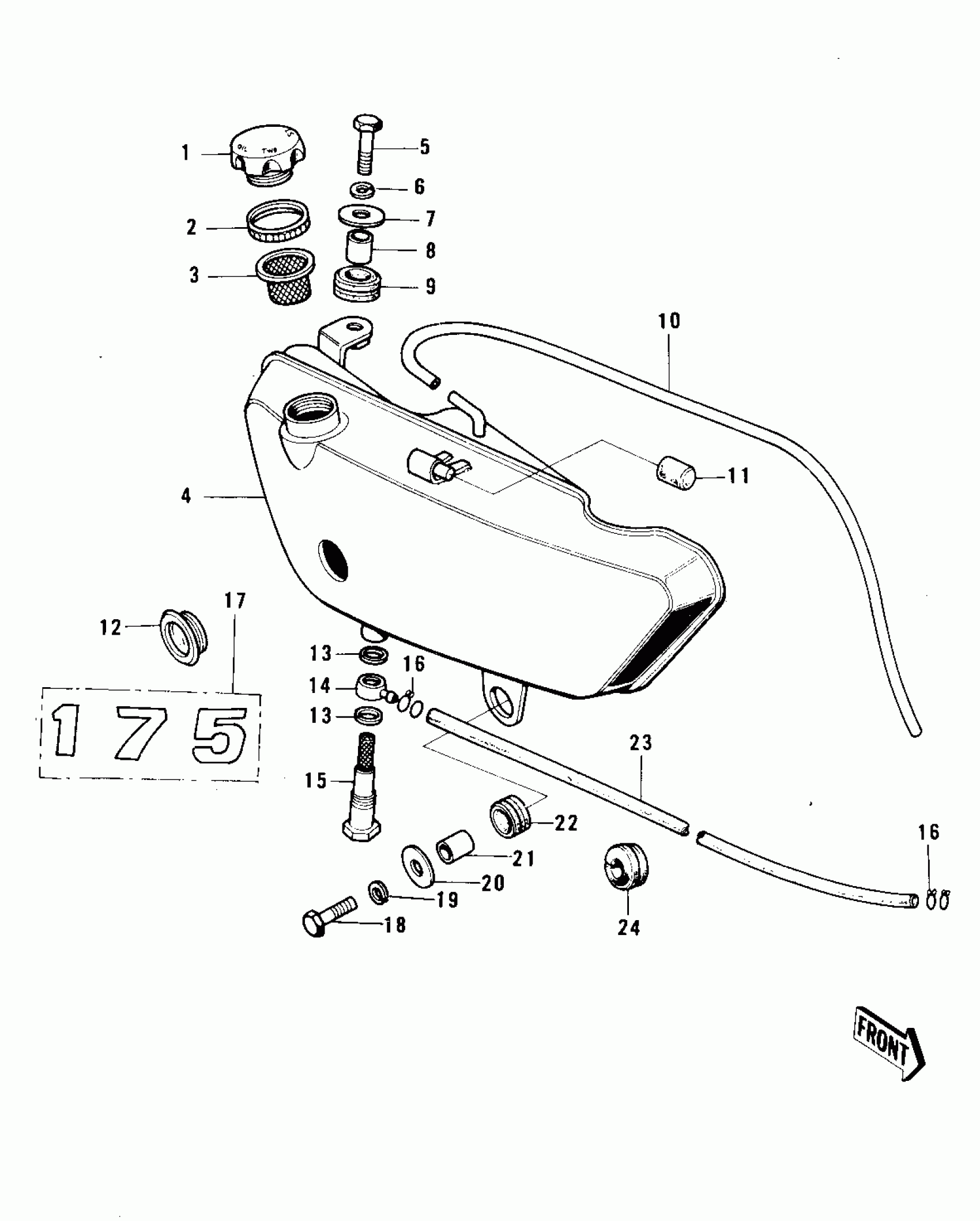

Kawasaki F7-D OIL TANK ('74-'75 F7-C/F6-D) Diagram
#
Description
Price
1
CAP-OIL TANK
52003-018
Unavailable
2
GASKET OIL TANK CAP
92065-018
Unavailable
2
GASKET-OIL TANK
92065-086
Unavailable
3
GASKET OIL TANK CAP B
52004-001
Unavailable
4
TANK-OIL,F.BLACK
52001-032-21
Unavailable
5
BOLT-UPSET,6X20
112G0620
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
WASHER,6.5X20X1.6
92022-125
Unavailable
8
COLLAR
92027-103
Unavailable
9
DAMPER RUBBER
92075-105
Unavailable
10
TUBE-PVC,5X600
700Q05600
Unavailable
11
DAMPER RUBBER
92075-067
Unavailable
12
GAUGE OIL LEVEL
52015-001
Unavailable
13
GASKET,10.5X16X1
92065-058
Unavailable
14
CONNECTOR BANJO
92061-003
Unavailable
15
BOLT OIL TANK BANJO
92060-001
Unavailable
16
CLAMP,TUBE
92037-010
Unavailable
17
EMBLEM-OIL TANK
56018-130
Unavailable
17
EMBLEM,SIDE COVER
56018-185
Unavailable
18
BOLT HEX HEAD 8X28
114G0828
Unavailable
19
WASHER SPRING 8MM
461F0800
Unavailable
20
WASHER,8X26X2.3
92022-1564
Unavailable
21
COLLAR
92027-102
Unavailable
22
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
23
PIPE OIL TANK
92059-008
Unavailable
24
GROMMET,PIPE
92071-038
Unavailable
