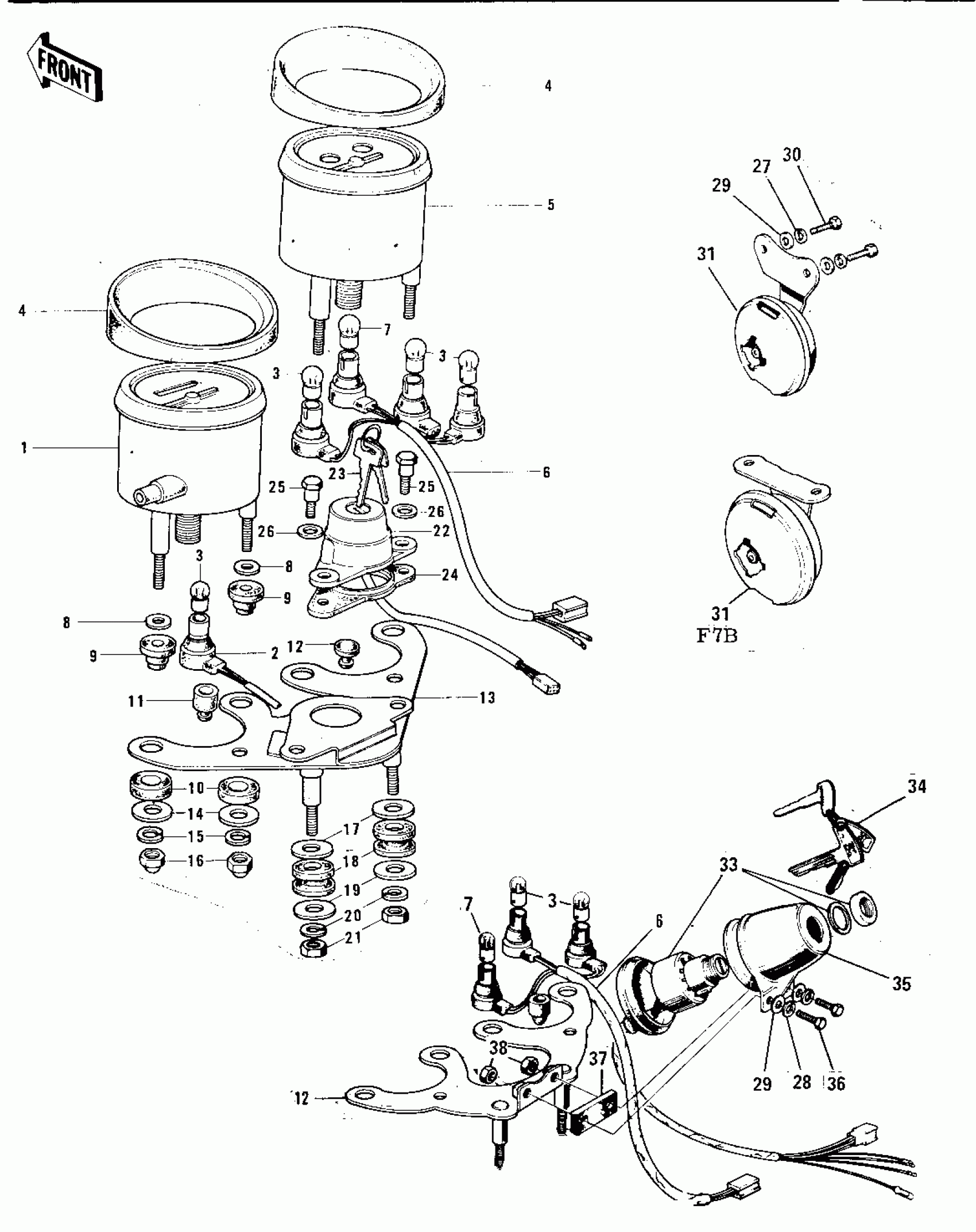

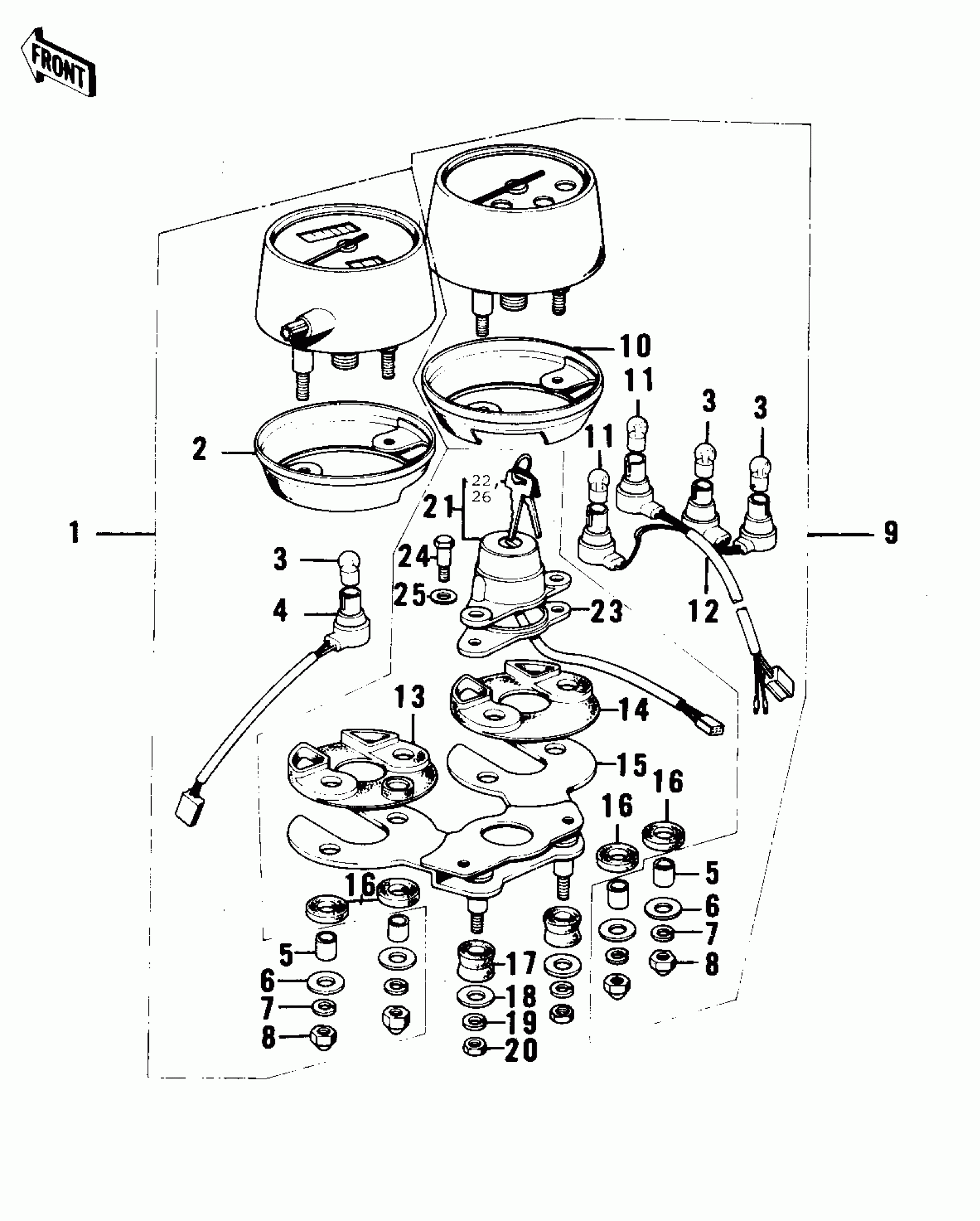

Kawasaki F7-D METERS/IGNITION SWITCH Diagram
#
1 ~ 4
SPEEDOMETER ASSY,MPH
25001-045
Unavailable
1 ~ 4
SPEEDOMETER ASSY,MPH
25001-045
Unavailable
2
SOCKET-SPEEDOMETER
25011-015
Unavailable
3
BULB,6V 3W,CLEAR
92069-053
Unavailable
3
BULB,6V 3W,CLEAR
92069-053
Unavailable
4
COVER-SPEEDOMETER
25012-003
Unavailable
3 ~ 7
TACHOMETER ASSY
25015-011
Unavailable
3 ~ 7
TACHOMETER ASSY
25015-019
Unavailable
6
SOCKET-TACHOMETER
25011-016
Unavailable
6
SOCKET-TACHOMETER
25011-028
Unavailable
7
BULB,6V 1.7W
92069-024
Unavailable
8
WASHER,8.5X20X1.6
92022-1561
Unavailable
9
DAMPER RUBBER
92075-143
Unavailable
10
DAMPER RUBBER
92075-066
Unavailable
11
DAMPER
92075-035
Unavailable
12
DAMPER RUBBER
92075-155
Unavailable
13
BRACKET-SPEEDOMETER
25008-013
Unavailable
13
BRACKET METER
25008-015
Unavailable
14
WASHER,5.2X18X1.2
92022-285
Unavailable
15
WASHER SPRING 5MM
461F0500
Unavailable
16
NUT-CAP,5MM
322N0500
Unavailable
17
WASHER PLAIN 8MM
411B0800
Unavailable
18
DAMPER
92075-024
Unavailable
19
WASHER,6.5X20X1.6
92022-125
Unavailable
20
WASHER SPRING 6MM
461F0600
Unavailable
21
NUT 6MM
311B0600
Unavailable
22,23
SWITCH ASSY,IGNITION
27005-068
Unavailable
22,23
SWITCH ASSY,IGNITION
27005-068
Unavailable
23
KEY SET,#155
27008-042-55
Unavailable
23
KEY SET,#156
27008-042-56
Unavailable
23
KEY SET,#157
27008-042-57
Unavailable
23
KEY SET,#158
27008-042-58
Unavailable
23
KEY SET,#159
27008-042-59
Unavailable
23
KEY SET,#160
27008-042-60
Unavailable
23
KEY SET,#161
27008-042-61
Unavailable
23
KEY SET,#162
27008-042-62
Unavailable
23
KEY SET,#163
27008-042-63
Unavailable
23
KEY SET,#164
27008-042-64
Unavailable
24
DAMPER RUBBER
92075-077
Unavailable
25
BOLT-HEX HEAD,6MM
92007-026
Unavailable
26
WASHER PLAIN 8MM
410B0800
Unavailable
27
WASHER SPRING 6MM
461F0600
Unavailable
28
WASHER SPRING 8MM
461F0800
Unavailable
29
WASHER PLAIN 6MM
411B0600
Unavailable
30
BOLT-UPSET
112G0618
Unavailable
31
HORN
27003-062
Unavailable
31
HORN
27003-061
Unavailable
32
CLAMP CABLE
25022-002
Unavailable
33,34
SWITCH ASSY-IGNITION
27005-035
Unavailable
34
KEY SET NO.150
27008-041-50
Unavailable
34
KEY SET NO.151
27008-041-51
Unavailable
34
KEY SET NO.152
27008-041-52
Unavailable
34
KEY SET NO.153
27008-041-53
Unavailable
34
KEY SET NO.154
27008-041-54
Unavailable
35
HOUSING-IGNITION SW
27009-009
Unavailable
36
BOLT 6X22
112B0622
Unavailable
36
BOLT-HEX HEAD,6MM
92003-069
Unavailable
37
DAMPER-RUBBER
92075-072
Unavailable
38
NUT 6MM
312B0600
Unavailable
39
KNOB,SPEEDOMETER TRIP
25024-002
Unavailable
39
KNOB,SPEEDOMETER TRIP
25024-003
Unavailable
