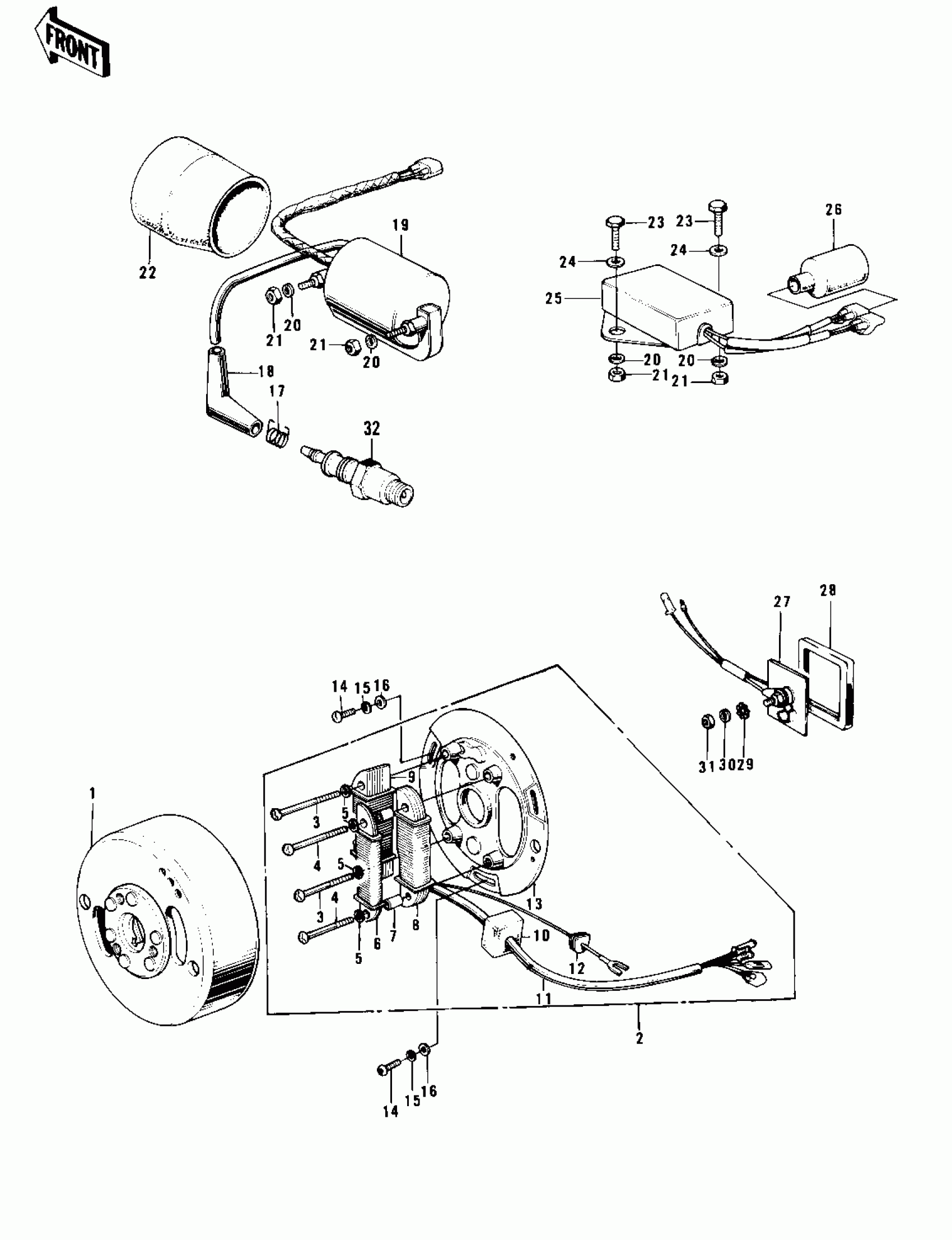

Kawasaki F7-D IGNITION/GENERATOR/RECTIFIER ('71-'73 F7 Diagram
#
1
FLYWEEL
21050-015
Unavailable
1
FLYWEEL
21050-015
Unavailable
2
STATOR
21003-011
Unavailable
3
SCREW-PAN-CROS
220E0430
Unavailable
3
SCREW-PAN-CROS
220E0430
Unavailable
4
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
4
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
5
WASHER SPRING 4MM
461F0400
Unavailable
6
.COIL-PULSER
21157-001
Unavailable
7
COLLAR
21033-002
Unavailable
8
.COIL-PRIMARY
21049-011
Unavailable
9
.COIL-LIGHTING
21047-012
Unavailable
10
GROMMET-WIRING HARN
92071-050
Unavailable
11
.WIRING HARNESS-MAGNET
21029-020
Unavailable
12
GROMMET WIRING HARN C
21017-005
Unavailable
13
.BASE-MAGNETO
21048-013
Unavailable
14
SCREW-PAN-CROS
220B0520
Unavailable
15
WASHER SPRING 5MM
461F0500
Unavailable
16
WASHER PLAIN 5MM
410B0500
Unavailable
17
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
18
CAP-SPARK PLUG
21130-009
Unavailable
19
COIL-IGNITION
21121-039
Unavailable
20
WASHER SPRING 6MM
461F0600
Unavailable
21
NUT 6MM
311B0600
Unavailable
22
RUBBER CAP-COIL
92073-016
Unavailable
23
BOLT-UPSET,6X16
112G0616
Unavailable
24
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
25
IGNITION UNIT
21119-013
Unavailable
25
IGNITION UNIT
21119-013
Unavailable
26
COVER WIRING HARNESS
26009-003
Unavailable
27
RECTIFIER
21061-5001
Unavailable
28
MAT-RECTIFIER
32103-020
Unavailable
29
WASHER LOCK 5MM
464H0500
Unavailable
30
WASHER SPRING 5MM
461F0500
Unavailable
31
NUT-HEX
311B0500
Unavailable
32
SPK PLG L20VMC
L20VMC
Unavailable
32
SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe
B9HS
Unavailable
32
SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe
B9HS
Unavailable
32
SPYDER RT LTD (SE6), Grey, Rotax 1330, Europe
B9HS
Unavailable
