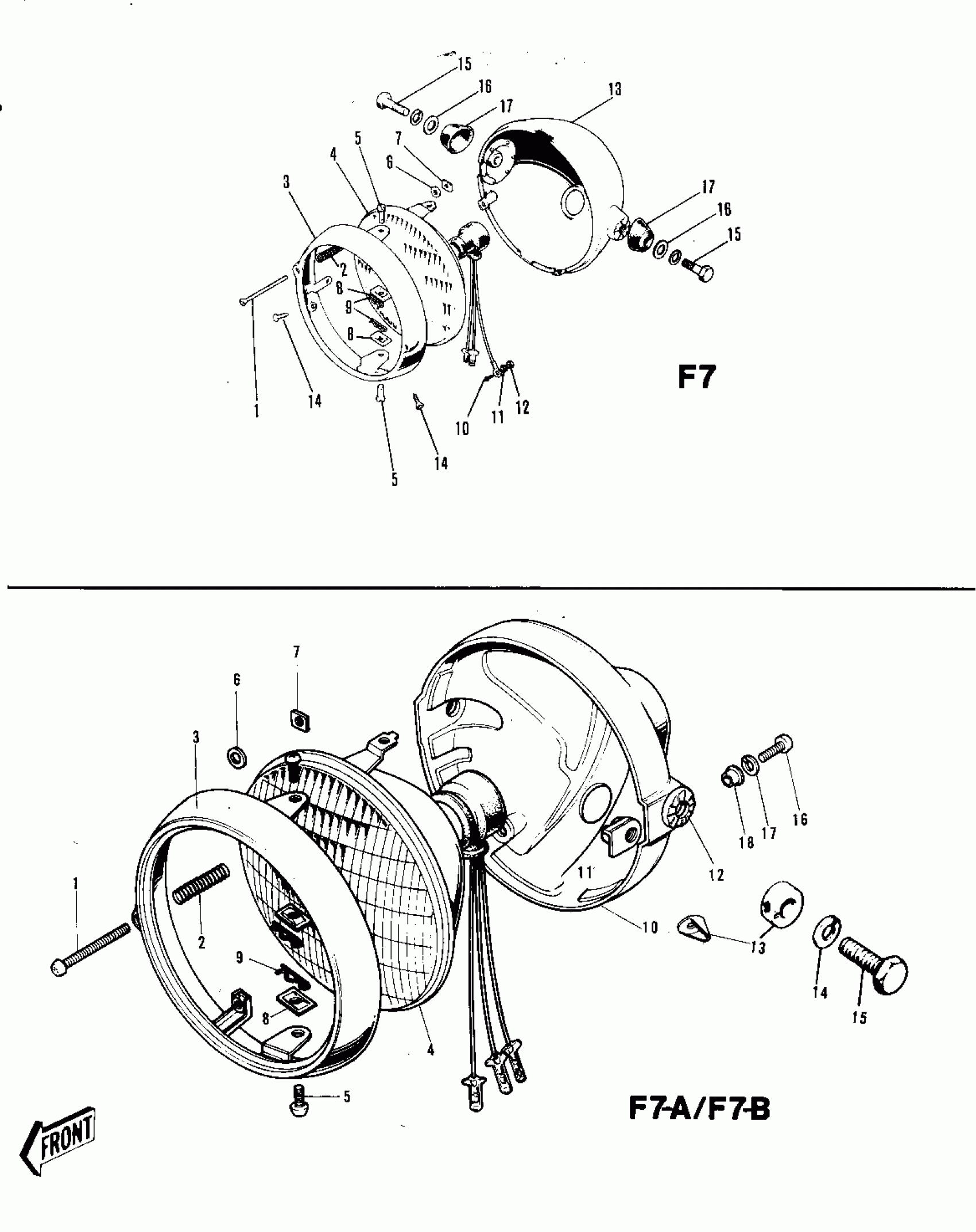

Kawasaki F7-D HEADLIGHT ('71-'73 F7/F7-A/F7-B) Diagram
#
1~9
LAMP UNIT-HEAD
23003-008
Unavailable
1
SCREW,FOCUS ADJUSTING
23019-021
Unavailable
2
SPRING,FOCUS ADJUSTING
23014-005
Unavailable
3
RIM HEAD LAMP
23006-014
Unavailable
4
SEALED BEAM UNIT
23007-022
Unavailable
5
SCREW LENS UNIT FITT
23019-018
Unavailable
6
WASHER,4.1X8X0.8
23021-004
Unavailable
7
NUT
23020-016
Unavailable
8
NUT LENS UNIT FITTING
23020-009
Unavailable
9
PIN LENS UNIT FITTING
23022-001
Unavailable
10
SCREW-PAN-CROS,3X6
220B0306
Unavailable
11
WASHER SPRING 3MM
461F0300
Unavailable
12
NUT-HEX
311B0300
Unavailable
13
BODY-HEAD LAMP,BLACK
23005-022-21
Unavailable
14
SCREW-CSK-RD-CROS
222E0510
Unavailable
15
BOLT,HEX HEAD,10X25
92007-045
Unavailable
16
WASHER-PLAIN,10MM
411B1000
Unavailable
17
DAMPER RUBBER
92075-058
Unavailable
1~9
LAMP UNIT-HEAD
23003-015
Unavailable
1
SCREW,FOCUS ADJUSTING
23019-021
Unavailable
2
SPRING,FOCUS ADJUSTING
23014-005
Unavailable
3
RIM-HEAD LAMP
23006-028
Unavailable
4
LENS UNIT-HEAD LAMP
23007-032
Unavailable
5
SCREW LENS UNIT FITT
23019-018
Unavailable
6
WASHER,4.1X8X0.8
23021-004
Unavailable
7
NUT
23020-016
Unavailable
8
NUT LENS UNIT FITTING
23020-009
Unavailable
9
PIN LENS UNIT FITTING
23022-001
Unavailable
10
BODY-HEAD LAMP,BLACK
23005-034-10
Unavailable
11
NUT
23020-017
Unavailable
12
WASHER-LOCK
23021-011
Unavailable
13
DAMPER RUBBER
92075-079
Unavailable
13
DAMPER RUBBER
92075-134
Unavailable
14
WASHER SPRING 10MM
461F1000
Unavailable
15
BOLT,10X35
92007-024
Unavailable
16
SCREW,5MM
92011-024
Unavailable
17
WASHER SPRING 5MM
461F0500
Unavailable
18
WASHER
23021-010
Unavailable
