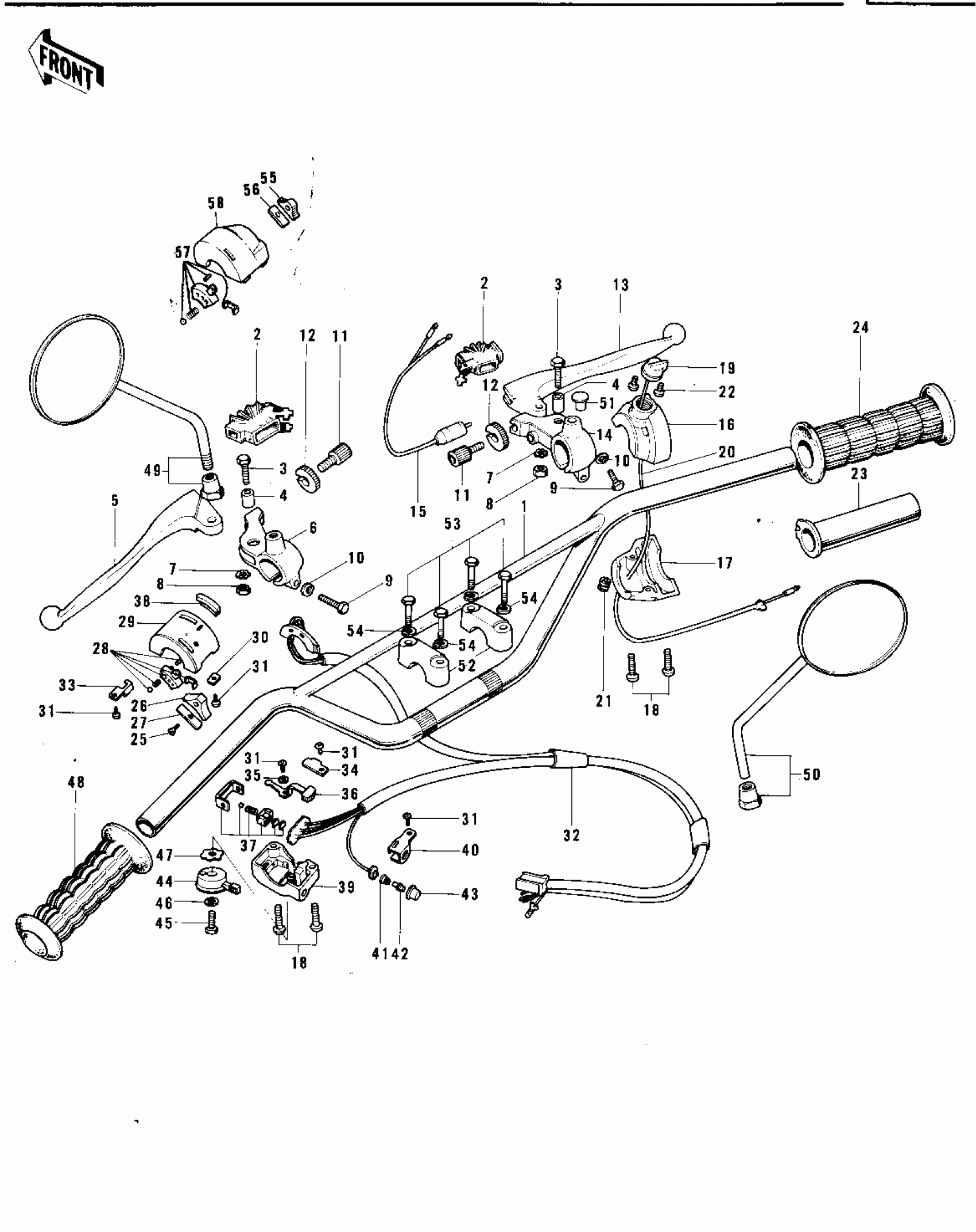

Kawasaki F7-D HANDLEBAR (F7-B) Diagram
#
1
HANDLEBAR
46004-016
Unavailable
2
DUST COVER
46071-002
Unavailable
3
BOLT HEX HEAD 5X20
92007-020
Unavailable
4
COLLAR LEVER
46059-011
Unavailable
5
LEVER-GRIP,CLUTCH
46092-015
Unavailable
6
HOLDER,F.BLACK
46094-011-21
Unavailable
7
WASHER LOCK 5MM
464H0500
Unavailable
8
NUT-HEX,5MM
312B0500
Unavailable
9
BOLT HEX HEAD 6X25
110N0625
Unavailable
10
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
11
SCREW,CABLE ADJUST
46055-010
Unavailable
12
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
13
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
14
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
15
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
16~24
CASE ASSY,R.H,BLACK
46018-020-10
Unavailable
16
CASE-RH UPPER
46041-008
Unavailable
17
CASE-RH LOWER
46023-008
Unavailable
18
SCREW-PAN-CROS,5X25
220B0525
Unavailable
19
SWITCH-ENGINE STOP
46027-008
Unavailable
20
WIRING HARNESS-STP SW
46082-021
Unavailable
21
GROMMET-WIRING HARNES
92071-060
Unavailable
22
SCREW PAN HEAD 3X5
220B0305A
Unavailable
23, 24
GRIP ASSY-THROTTLE
46019-020
Unavailable
24
RUBBER-R.H. GRIP
46061-013
Unavailable
18,25~
CASE ASSY-L.H.
46091-007
Unavailable
25
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
26
KNOB-LH SWITCH
46044-009
Unavailable
27
SPRING-L.H SW KNOB,B
46031-006
Unavailable
28
SWITCH-L.H.
46089-008
Unavailable
29
CASE-L.H. UPPER
46086-015
Unavailable
30
HOLDER-L.H SW UPPER,B
46085-019
Unavailable
31
SCREW PAN HEAD 3X5
220B0305A
Unavailable
32
WIRING HARNESS-LH SW
46082-020
Unavailable
33
HOLDER-LH SW UPPER,A
46085-020
Unavailable
34
HOLDER-L.H SW LOWER,A
46085-016
Unavailable
35
WASHER
92095-010
Unavailable
36
KNOB-SWITCH
46044-010
Unavailable
37
SLIDE BLOCK AY-L.H SW
46089-007
Unavailable
38
CAP-L.H. SWITCH
46089-009
Unavailable
39
CASE-L.H. LOWER
46077-017
Unavailable
40
HOLDER-L.H SW LOWER,B
46085-017
Unavailable
41
SWITCH,PUSH BUTTON
27010-1009
Unavailable
42
SWITCH,PUSH BUTTON
27010-1009
Unavailable
43
SWITCH,PUSH BUTTON
27010-1009
Unavailable
44
LEVER STARTER
46096-008-10
Unavailable
45
BOLT HEX HEAD 6X8
110B0608
Unavailable
45
BOLT-UPSET,6X8
112B0608
Unavailable
46
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
47
WASHER LOCK
92095-012
Unavailable
48
RUBBER-L.H.GRIP
46075-018
Unavailable
49
MIRROR-ASSY,LH
56003-009
Unavailable
50
MIRROR-ASSY,RH
56002-020
Unavailable
51
CAP-RR VIEW MIRROR
92102-009
Unavailable
52
HOLDER-HANDLE,UPP
46012-008
Unavailable
53
BOLT 8X38
92001-1405
Unavailable
54
WASHER SPRING 8MM
461F0800
Unavailable
18,25,
CASE ASSY,L.H
46091-019
Unavailable
55
KNOB-L.H SWITCH
46044-011
Unavailable
56
SPRING L.H SW KNOB
46031-003
Unavailable
57
SWITCH ASSY,L.H
46089-012
Unavailable
58
CASE-L.H UPPER,BLACK
46086-016-21
Unavailable
