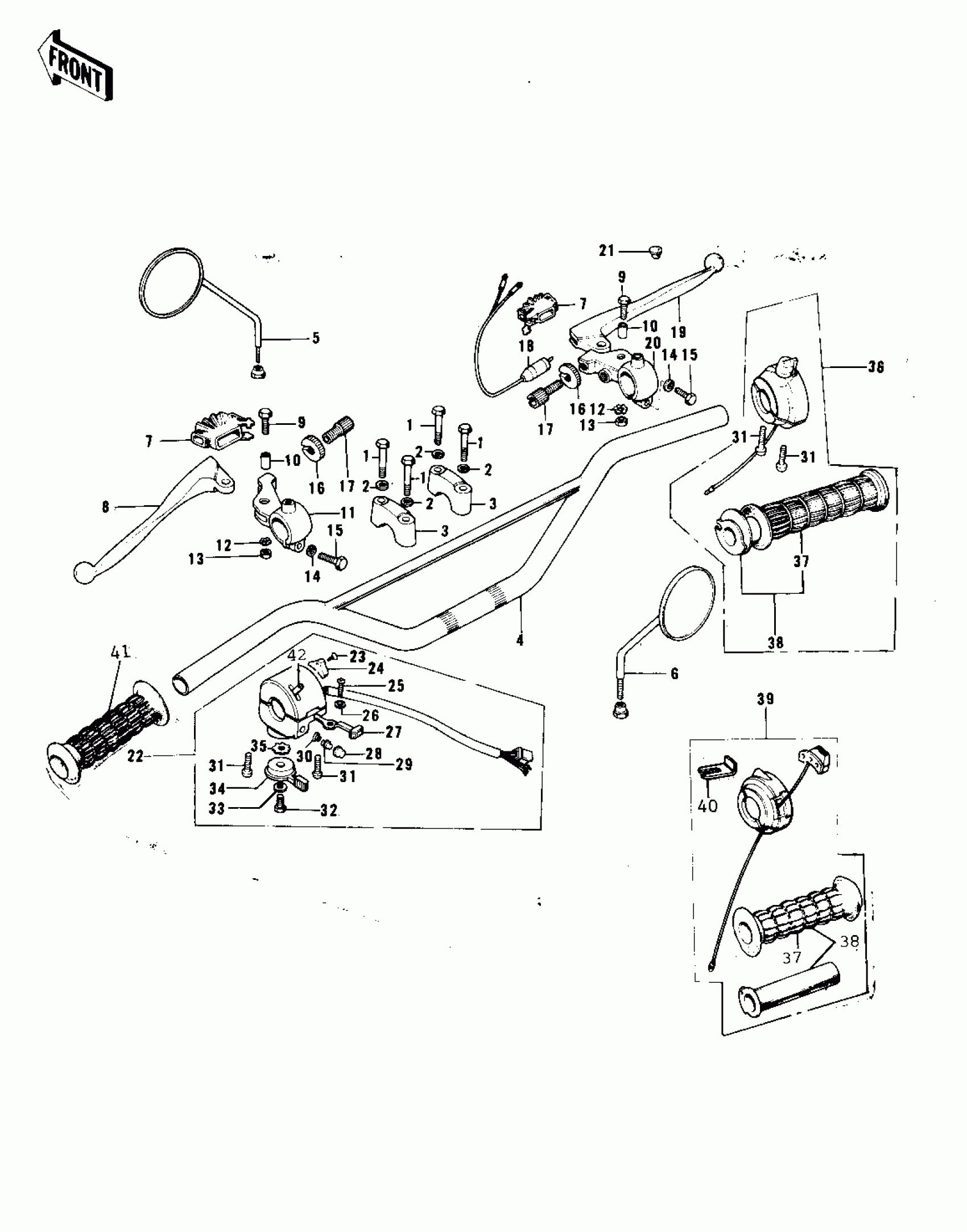

Kawasaki F7-D HANDLEBAR Diagram
#
1
BOLT 8X38
92001-1405
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
HOLDER-HANDLE,UPP
46012-008
Unavailable
4
HANDLEBAR
46004-016
Unavailable
5
MIRROR-ASSY,LH
56003-009
Unavailable
6
MIRROR-ASSY,RH
56002-020
Unavailable
7
DUST COVER
46071-002
Unavailable
8
LEVER-GRIP,CLUTCH
46092-015
Unavailable
9
BOLT HEX HEAD 5X20
92007-020
Unavailable
10
COLLAR LEVER
46059-011
Unavailable
11
HOLDER,F.BLACK
46094-011-21
Unavailable
12
WASHER LOCK 5MM
464H0500
Unavailable
13
NUT-HEX,5MM
312B0500
Unavailable
14
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
15
BOLT HEX HEAD 6X25
110N0625
Unavailable
16
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
17
SCREW,CABLE ADJUST
46055-010
Unavailable
17
SCREW ADJUST
46055-006
Unavailable
17
SCREW,CABLE ADJUST
46055-010
Unavailable
18
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
19
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
20
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
21
CAP-RR VIEW MIRROR
92102-009
Unavailable
22
CASE ASSY,L.H,BLACK
46091-019-10
Unavailable
23
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
24
KNOB-L.H SWITCH
46044-011
Unavailable
23,24,
L.H GRIP SWITCH KIT
99990-531
Unavailable
25
SCREW PAN HEAD 3X5
220B0305A
Unavailable
26
WASHER
92095-010
Unavailable
27
KNOB-SWITCH
46044-010
Unavailable
28
SWITCH,PUSH BUTTON
27010-1009
Unavailable
29
SWITCH,PUSH BUTTON
27010-1009
Unavailable
30
SWITCH,PUSH BUTTON
27010-1009
Unavailable
31
SCREW-PAN-CROS,5X25
220B0525
Unavailable
32
BOLT HEX HEAD 6X8
110B0608
Unavailable
33
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
34
LEVER STARTER
46096-008-10
Unavailable
35
WASHER LOCK
92095-012
Unavailable
36
CASE ASSY,R.H,BLACK
46018-020-10
Unavailable
37
RUBBER-R.H. GRIP
46061-013
Unavailable
38
GRIP ASSY-THROTTLE
46019-020
Unavailable
38
GRIP ASSY,THROTTLE
46019-034
Unavailable
39
CASE ASSY,R.H
46018-036
Unavailable
40
HOLDER,CONTROL CABLE
46037-023
Unavailable
41
RUBBER-L.H.GRIP
46075-018
Unavailable
41
RUBBER-L.H GRIP
46075-019
Unavailable
42
SWITCH ASSY,L.H
46089-015
Unavailable
