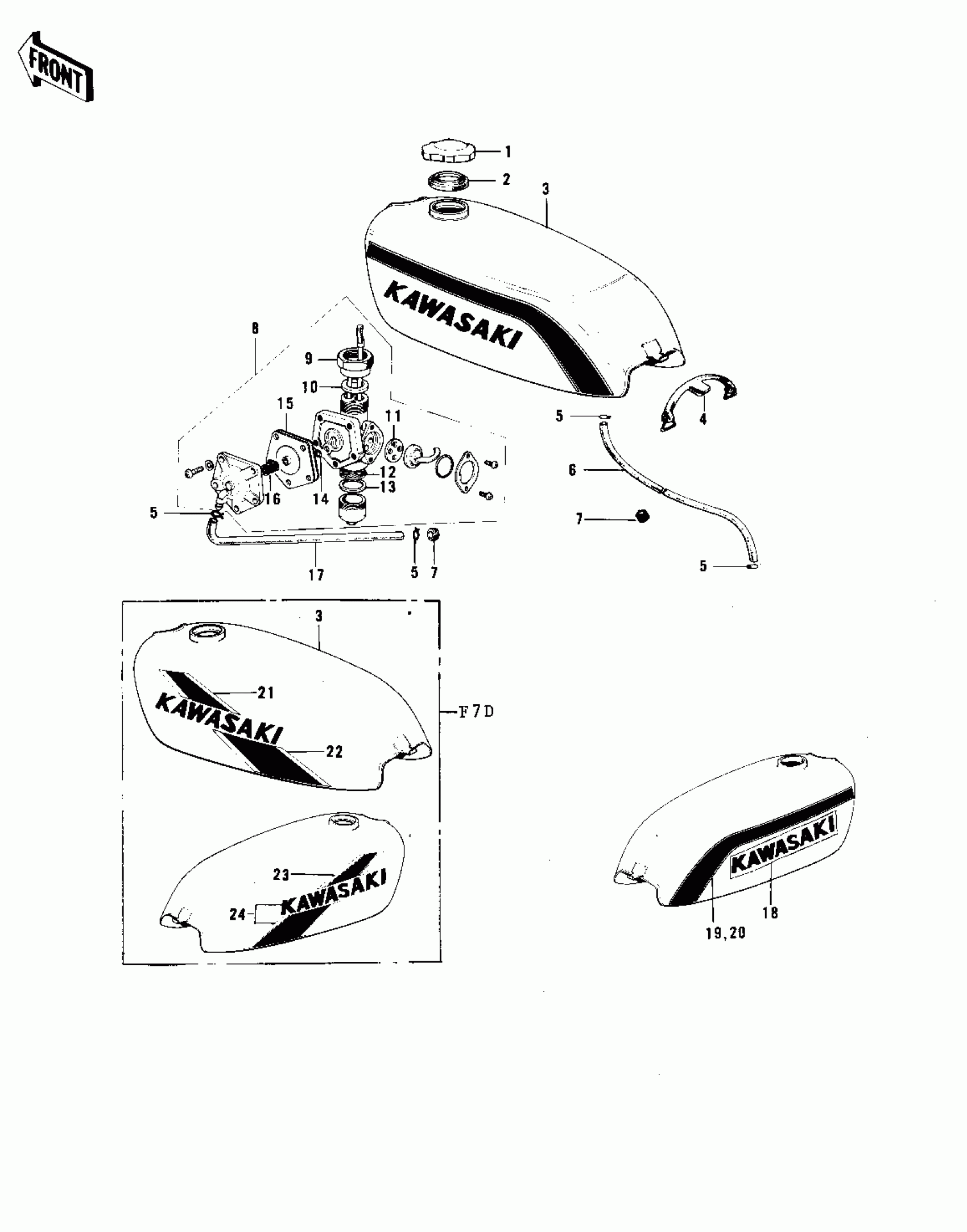

Kawasaki F7-D FUEL TANK ('74-'75 F7-C/F6-D) Diagram
#
1
CAP,FUEL TANK
51048-1013
Unavailable
2
GASKET,FUEL TANK CAP
51059-011
Unavailable
3
TANK-FUEL,C.BLUE
51001-079-1S
Unavailable
3
TANK-FUEL,M.SILVER
51001-079-1W
Unavailable
3
TANK-FUEL,C.BROWN
51001-079-3C
Unavailable
3
TANK-FUEL,C.GREEN
51001-079-3B
Unavailable
4
BAND,FUEL TANK
92072-064
Unavailable
5
CLAMP,TUBE
92037-010
Unavailable
6
PIPE,FUEL
92059-093
Unavailable
7
GROMMET,PIPE
92071-038
Unavailable
8
COCK ASSY,FUEL
51023-048
Unavailable
8
COCK ASSY,FUEL
51023-048
Unavailable
9
FUEL COCK JOINT NUT
51035-008
Unavailable
10
GASKET-FUEL COCK JONT
92065-066
Unavailable
11
GASKET-FUEL COCK LEV
92065-065
Unavailable
12
STRAINER FUEL
51038-006
Unavailable
13
GASKET FUEL COCK CUP
51037-009
Unavailable
14
GASKET
92065-052
Unavailable
15
DIAPHRAGM ASSY
51069-002
Unavailable
16
SPRING-DIAPHRAGM
92081-072
Unavailable
17
PIPE
92059-065
Unavailable
18
DECAL-FUEL TANK
56013-051
Unavailable
18
DECAL-FUEL TANK
56013-051
Unavailable
18
DECAL-FUEL TANK
56013-051
Unavailable
19
DECAL,FL TK STRPE,LH
56027-167
Unavailable
19
DECAL,FL TK STRPE,LH
56027-167
Unavailable
19
DECAL,FL TK STRPE,LH
56027-167
Unavailable
20
DECAL,FL TK STRPE,RH
56027-168
Unavailable
20
DECAL,FL TK STRPE,RH
56027-168
Unavailable
20
DECAL,FL TK STRPE,RH
56027-168
Unavailable
21
DECAL,FUEL TANK,L.H
56027-255-SP
Unavailable
21
DECAL,FUEL TANK,L.H
56027-255-SP
Unavailable
21
DECAL,FUEL TANK,L.H
56027-255-SP
Unavailable
22
DECAL,FUEL TANK,L.H
56027-256-SP
Unavailable
22
DECAL,FUEL TANK,L.H
56027-256-SP
Unavailable
22
DECAL,FUEL TANK,L.H
56027-256-SP
Unavailable
23
DECAL,FUEL TANK,R.H
56027-257-SP
Unavailable
23
DECAL,FUEL TANK,R.H
56027-257-SP
Unavailable
23
DECAL,FUEL TANK,R.H
56027-257-SP
Unavailable
24
DECAL,FUEL TANK,R.H
56027-258-SP
Unavailable
24
DECAL,FUEL TANK,R.H
56027-258-SP
Unavailable
24
DECAL,FUEL TANK,R.H
56027-258-SP
Unavailable
